About product
The Econo Tube M 36V 10.5Ah 378Wh battery is an electric bike battery assembled in Slovenia. It is designed to be mounted on the lower tube of the wheel frame or on the dedicated trunk. If it is to be mounted on the hose, then attach the battery carrier with screws to the accessories for the bidon bracket. In the case of the battery, you also get two keys so you can lock it on the bracket using the built-in lock.

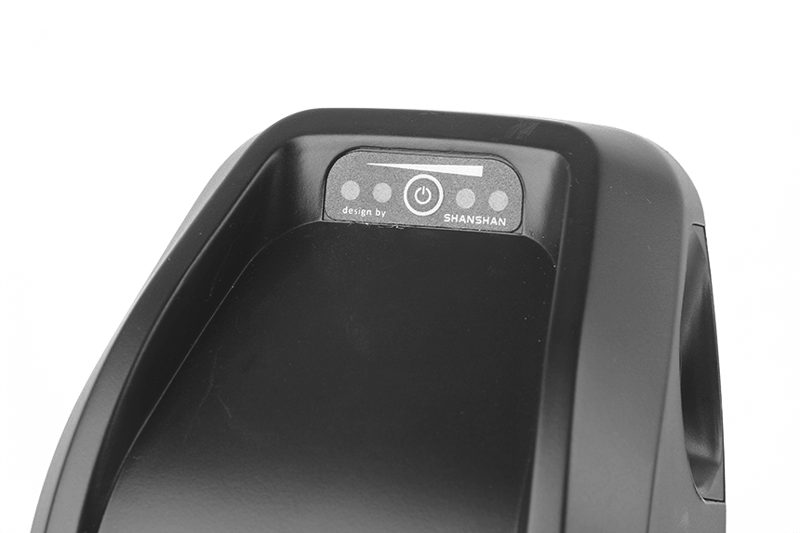

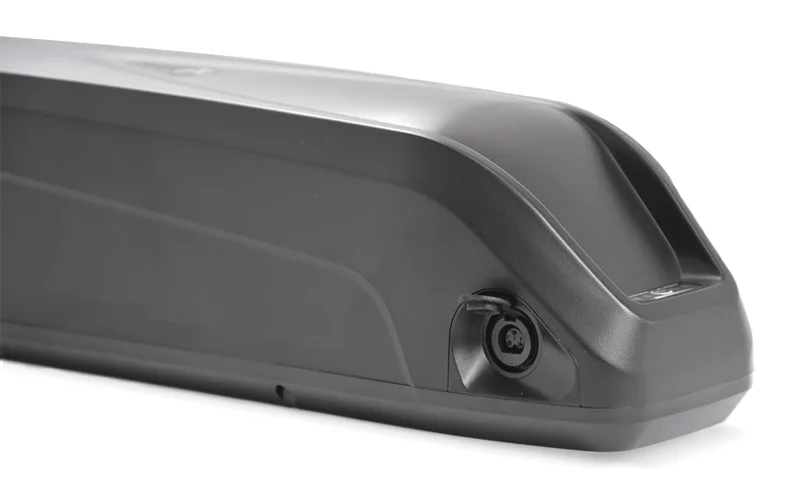

The battery is compatible with 36V voltage Motors. The battery is located with a charger connector and a battery charge indicator. The 10.5Ah battery capacity provides you with enough energy for shorter tours around the city as well as for excursions around the countryside. The battery is only compatible with the original Econo charger 2A or 4A with a 3pin connector, which ensures greater safety and temperature monitoring during charging.
Easy to shake
The battery can be locked on the wheel with a key. We can charge it on or off the bike. We can use that in the winter when we feed it.
Long life
The Econo Battery Control System (BMS) protects li-ion cells from use in extreme conditions such as high temperatures, oversuspation...
Low self-discharge rate
Even after long storage periods. This means that econo rechargeable batteries do not need to be charged after a long break (after winter).
No memory effect
You can charge the Econo batteries at any time, regardless of the current charge level. Interruptions of the charging process do not harm the battery.
Outstanding cell performance
Samsung cells are perfectly balanced in terms of performance and reliability. They are very stable, even with the greatest effort.
Universal use
Econo batteries are compatible with a wide variety of Motor brands, as well as with the implementation of the Motor (central, front, rear).
Pictures and video
Charging range and time
Battery range
The graph below shows the maximum battery range of econo 378Wh (10.5Ah) combined with the econo tsdz 2 center Motor will be the most favourable conditions.
Charging time
Our batteries can only be charged with Econo chargers.
Econo / 2A 3pin charger
Prime 50%
Approximately 2.5 hours
Prime 100%
Approximately 6 hours
Econo / 4A 3pin
Prime 50%
Approximately 1.5 hours
Prime 100%
Approximately 3 hours
Two mounting positions
Tube M is easy to shake hands. Installing the battery on the frame is the best solution, as the centre of gravity of the wheel is kept low and closer to the centre of the wheel, this also affects the control of the wheel. It can be installed on a wide variety of types of wheel frames.
Installing the battery on the trunk is an excellent solution for all low-input bicycles, as easy entry and exit from the wheel are maintained, and offers complete freedom to install or dismantle.
Specifications
| Capacity | 378Wh (10.5Ah) | ||
| Rated voltage | 36V | ||
| Max. voltage | 42v | ||
| Min. voltage | 28v | ||
| Max. charging flow | 4V | ||
| Charging temperature | from 10°C to 45°C | ||
| Discharge temperature | from -20°C to 50°C | ||
| DC connector | 3 PIN | ||
| Technology | Li-ion | ||
| Make Cells | Samsung | ||

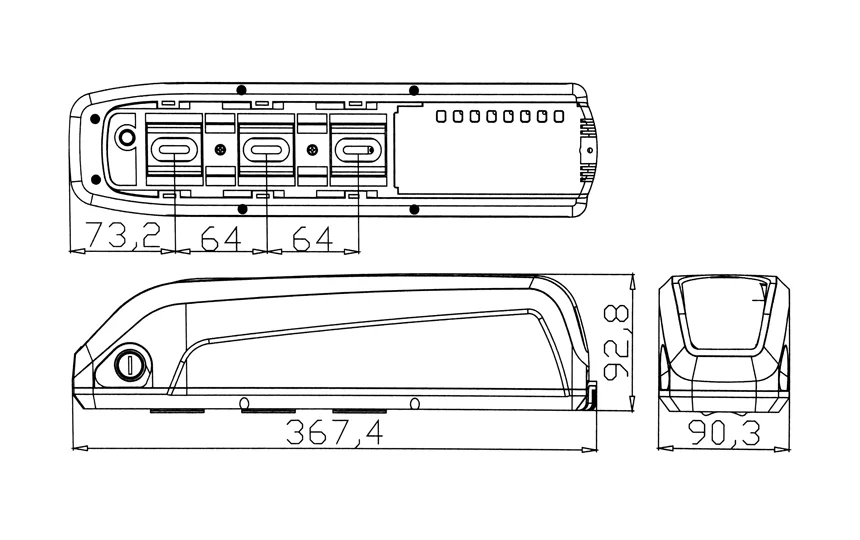

| Dimensions | 367.4 x 92.8 x 90.3 mm | ||
| Weight | Approx. 2 kg | ||
| Warranty | 12 months |
Package included
1x Econo 378Wh batteries (10.5Ah)
2x Keys
1x Instructions
1x Battery carrier
