About the product

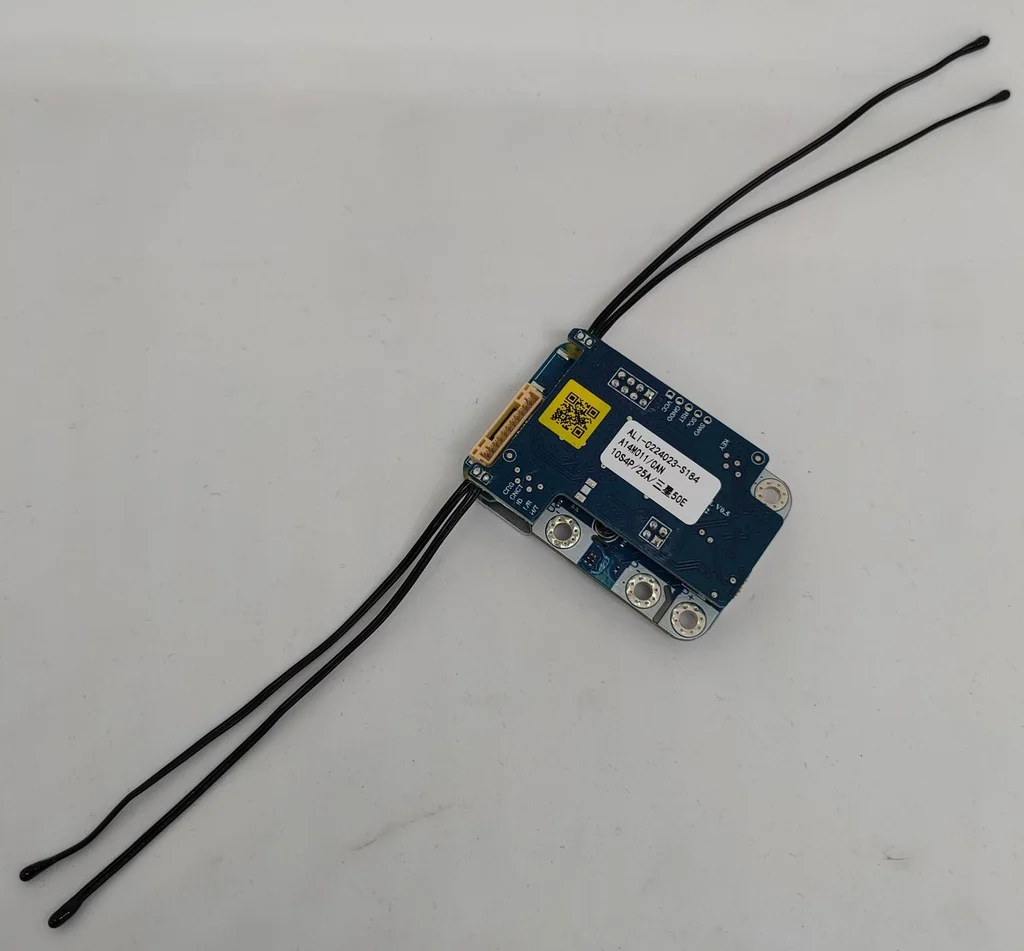

The BMS circuit is designed to protect and control the battery. It is intended for Li-ion cells. BMS functions:
Protection against cell overcrowding
Cell overheating protection
Protection against overflow
Protection of a short circuit
Protection from discharging
Balancing Cells (Keeping all cells at the same voltage level)
Specifications
Nominal voltage: 36v no. consecutive branches: 10s Min. voltage: 28v Max. charge current: 8a Max. discharge current: 25a Cell balance: Yes Cut-off temperature:
65 ° C
Dimensions:
34mm x 59mm x 9mm
Separate exit for charger:
Yes Can Communications Yes
| Nominal voltage: | 36v |
| no. consecutive branches: | 10s |
| Min. voltage: | 28v |
| Max. charge current: | 8a |
| Max. discharge current: | 25a |
| Cell balance: | Yes |
| Cut-off temperature: | 65 ° C |
| Dimensions: | 34mm x 59mm x 9mm |
| Separate exit for charger: | Yes |
| Can Communications | Yes |
The scope of the package
1x BMS circuit
1x cable for cell balancing
