About product

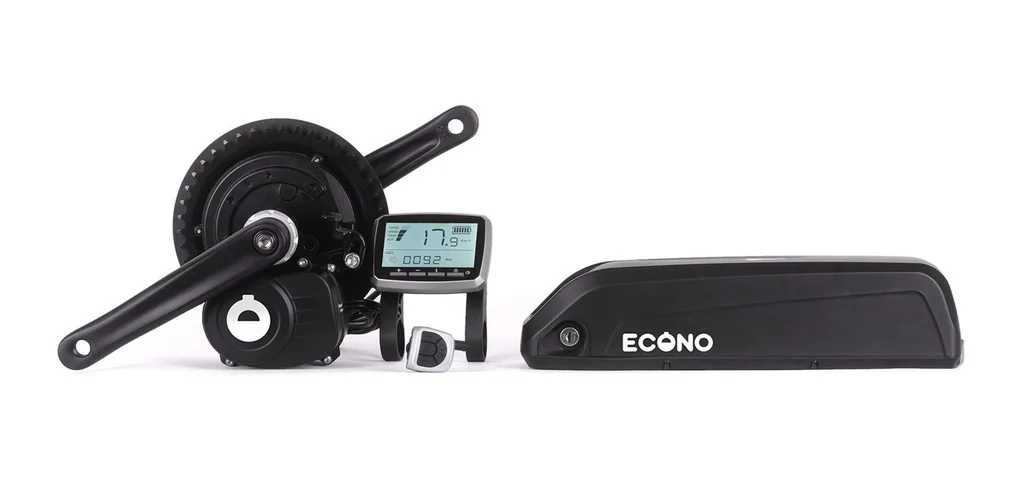

The econo electric bike recovery kit includes all the components with which your regular bike becomes electric in a good hour. The powerful centre motor completely replaces your driving bearing and also includes new motors. There is a torque sensor in the Motor, which means that the Motor detects the power with which you press the pedals and helps you with proportionally the same power according to the chosen level of assistance. This provides a more optimal energy consumption compared to Motors without a torque sensor. The Motor is powered by a reliable Econo battery, which is mounted on the lower tube of the frame. Screw the battery carrier into holes to install the bidon carrier. The battery has a capacity of 19,4 Ah (700 Wh) and is suitable for longer trips on the plain and hills. The Motor is compatible with most ordinary wheels.
Motor specifications:
Name: TongSheng TSDZ2
Rated power: 250 W
Voltage: 36 V
Max torque: 80 Nm
Aid range: 36 to 300 %
Speed limit: 25 km/h
Weight: 3.6 kg
Battery:
Voltage: 36V
Capacity: 19,4 Ah / 700 Wh
Charger included
VLCD5 display functions:
4 rates of aid,
battery charge indicator,
instantaneous driving speed (km/h),
average driving speed (km/h),
kilometres travelled (TRIP),
total kilometres travelled (ODO),
driving time, and
backlight.
OPTIONAL:
Battery rack: additional charge 45 EUR
Charger Econo 4 A: additional charge 25 EUR
Package included
1x Central motor with torque sensor (36 V, 250 W)
2x Crank
1x VLCD5 screen + control unit
1x Speed sensor
1x Assembly tool
1x Battery Econo Tube M 36 V, 14.5 Ah, 522Wh
1x Econo Charger 2 A
