About product
The kit for electric conversion of your bicycle includes all the components with which your ordinary bicycle becomes electric in a few hours. The powerful mid-Motor completely replaces your crank bearing and also includes new cranks. There is a torque sensor in the motor, which means that the motor detects the power with which you press the pedals and, depending on the selected level of assistance, helps you with a relatively equal power. This ensures more optimal energy consumption compared to motors without a torque sensor. The motor is powered by a reliable Econo battery, which is mounted on the down tube of the frame. The battery holder is screwed into the holes for installing the bottle holder with screws. The battery has a capacity of 17,5 Ah (630 Wh) and is suitable for longer trips on plains and hills. The motor is compatible with most regular bikes.
Motor specifications:
Name: Tongsheng TSDZ2
Rated power: 250 W
Voltage: 36 V
Max torque: 80 Nm
Aid range: 36 to 300 %
Speed limit: 25 km/h
Weight: 3.6 kg
Battery:
Voltage: 36V
Capacity: 17,5Ah / 630 Wh
Charger included
VLCD5 display functions:
4 rates of aid,
battery charge indicator,
instantaneous driving speed (km/h),
average driving speed (km/h),
kilometres travelled (TRIP),
total kilometres travelled (ODO),
driving time, and
backlight.
Optional:
Battery rack: additional charge 45 EUR
Charger Econo 4 A: additional charge 25 EUR
Please note the size of the rings in the notes (at the end of the purchase) before placing the order.

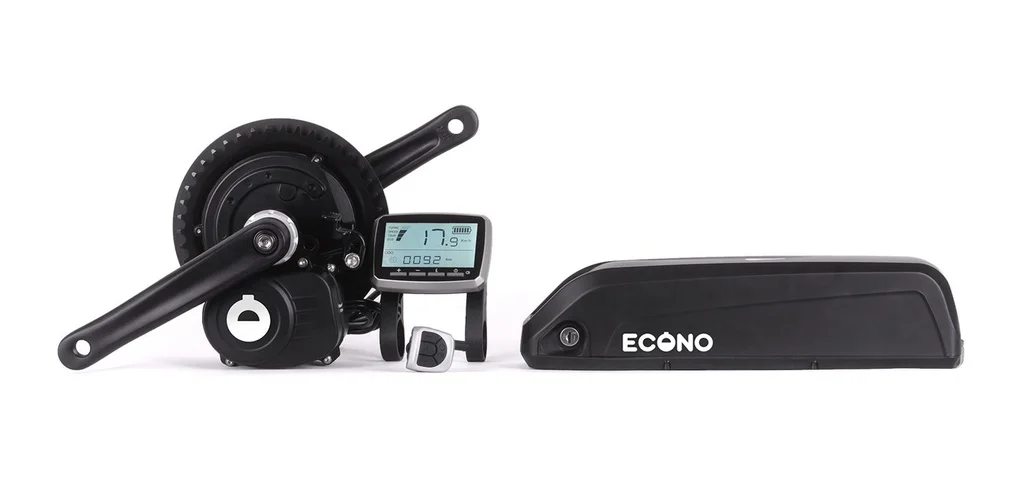

Package included
1x Central motor with torque sensor (36 V, 250 W)
2x Crank
1x Display VLCD5 + krmilna enota
1x Speed sensor
1x Assembly tool
1x Econo Tube M 36 V battery, 17.5 Ah, 630 W
1x Charger 3 pin 2A
