About product

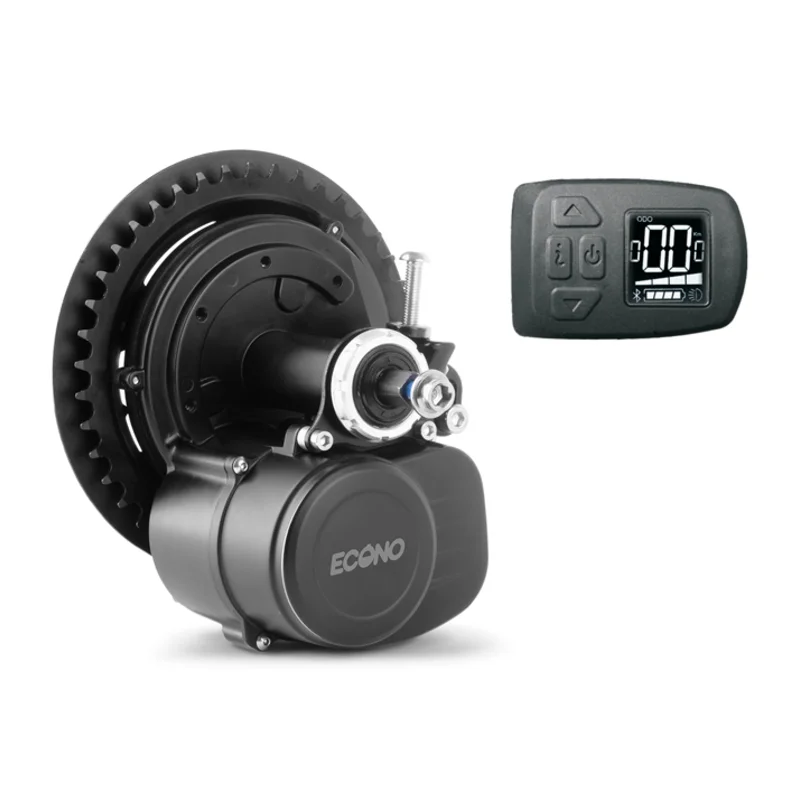

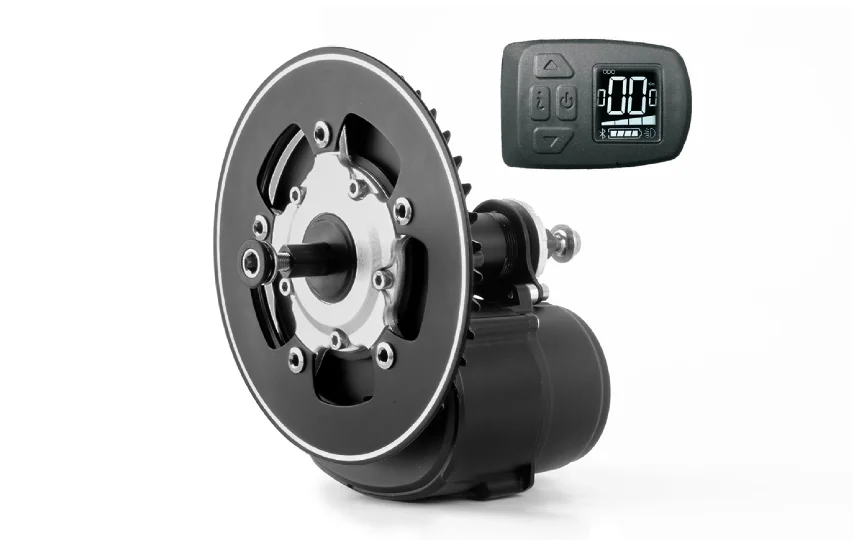

The econo mid-electric motor for the processing of your ordinary bicycle into an electric one. It is very elegant in shape and weighs 3.7 kg. The Motor has a torque sensor, which means that the Motor detects the power with which you press the pedals and helps you with proportionally the same power, depending on the level of help you are selected. As a result, the power consumption is lower compared to Motors without a torque sensor. The quiet and smooth operation of the Motor ensures a comfortable and safe ride wherever you go. Excellent operation both on the plane and in the hill thanks to 80 Nm torque.

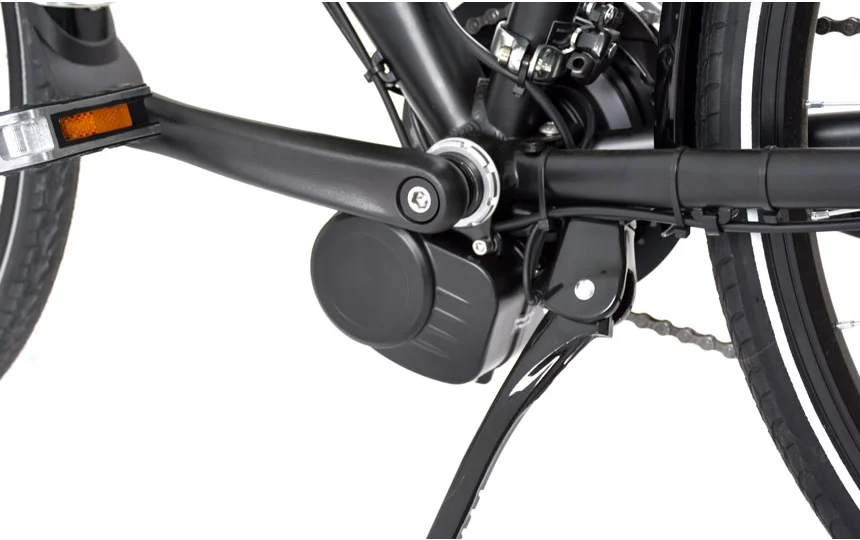

Simply install it by removing the driving bearing on the wheel, inserting the motor and attaching the supplied motors. You have as much as 4 levels of assistance. It's compatible with most regular bikes.
Motor specifications
| Layout | centre motor (driving bearing) |
| Rated power | 250 w |
| Voltage | 36 in |
| Maximum torque | 80 nm |
| Power ratio | from 36 % do 300 % |
| Maximum speed | 25 km/h |
| Motor assist levels |
4 |
| Foot brake (torpedo) |
no |
| Weight |
3.6kg |
| Driving axle |
68-73mm |
| Front sprocket |
38T (teeth) |
| Contains |
Built-in controller, torque sensor, front sprocket, motors and tools |
| Certificate |
EN 15194: 2017 |
| Warranty | 12 months |
Display specifications

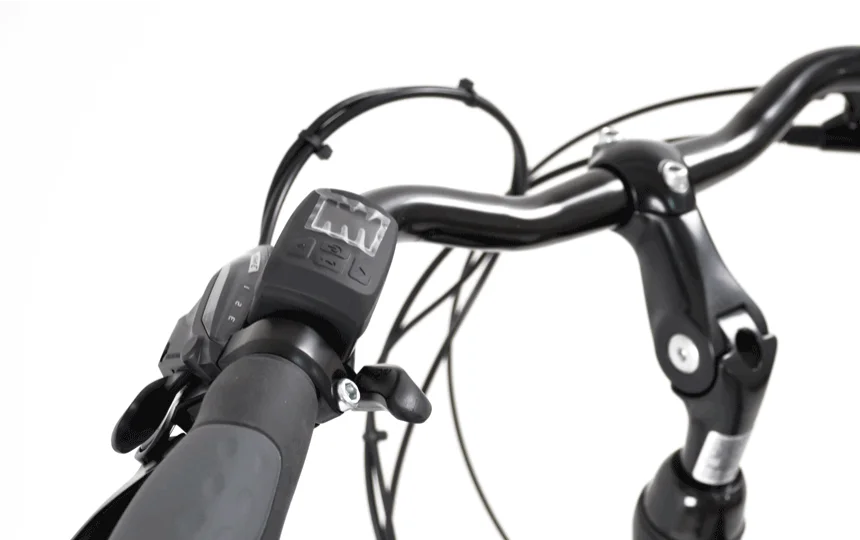

It is distinguished by its small size and transparency. The screen shall be placed next to the hand handle. The display also has Bluetooth, which allows you to track all parameters live via a mobile app.
4 rates of aid,
battery charge indicator,
instantaneous driving speed (km/h),
average driving speed (km/h),
kilometres travelled (TRIP),
total kilometres travelled (ODO),
turn on/off lights
Walk Assist (6km/h)
driving time
backlight
IP 65 Protection
for voltages 20 to 60V
dimensions 53 x 41 x 36mm
operating in a temperature range between -20 and 45°C
Package included
1x central motor 36 V 250 W
1x LCD display VLCD5
2x driver
1x controller for LCD display
1x speed sensor
1x assembly tool
