Powerful, reliable and highly efficient
The econo mid-electric motor for the processing of your ordinary bicycle into an electric one. It is very elegant in shape and weighs 3.7 kg. The Motor has a torque sensor, which means that the Motor detects the power with which you press the pedals and helps you with proportionally the same power, depending on the level of help you are selected. As a result, the power consumption is lower compared to Motors without a torque sensor. The quiet and smooth operation of the Motor ensures a comfortable and safe ride wherever you go. Excellent operation both on the plane and in the hill thanks to 350W and 90 Nm torque.
Simply install it by removing the driving bearing on the wheel, inserting the motor and attaching the supplied motors. You have as much as 4 levels of assistance. It's compatible with most regular bikes.
| Layout | centre motor (driving bearing) |
| Rated power | 350 W |
| Voltage | 36V |
| Maximum torque | 90 nm |
| Power ratio | from 36 % dto 300 % |
| Maximum speed | 25 km/h |
| Motor assist levels | 4 |
| Foot brake (torpedo) | no |
| Weight | 3.6 kg |
| Driving axle | 68-73mm |
| Front sprocket | 38T (teeth) |

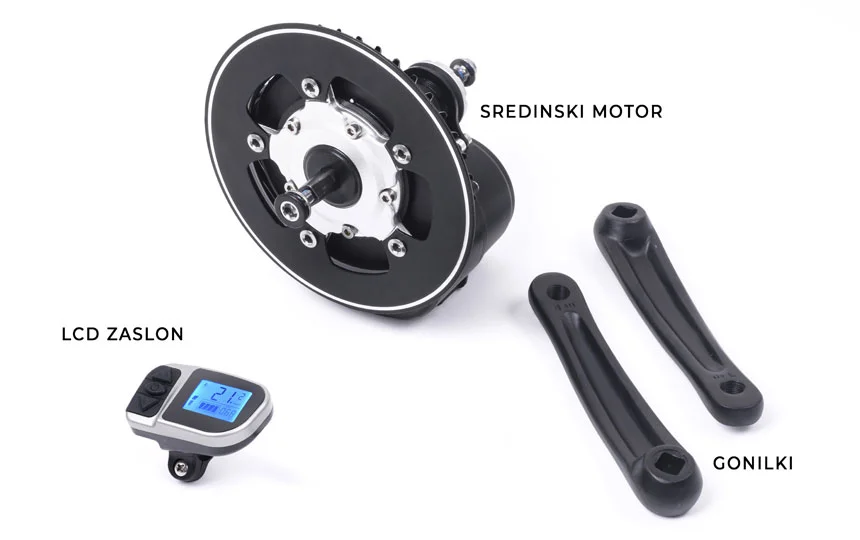

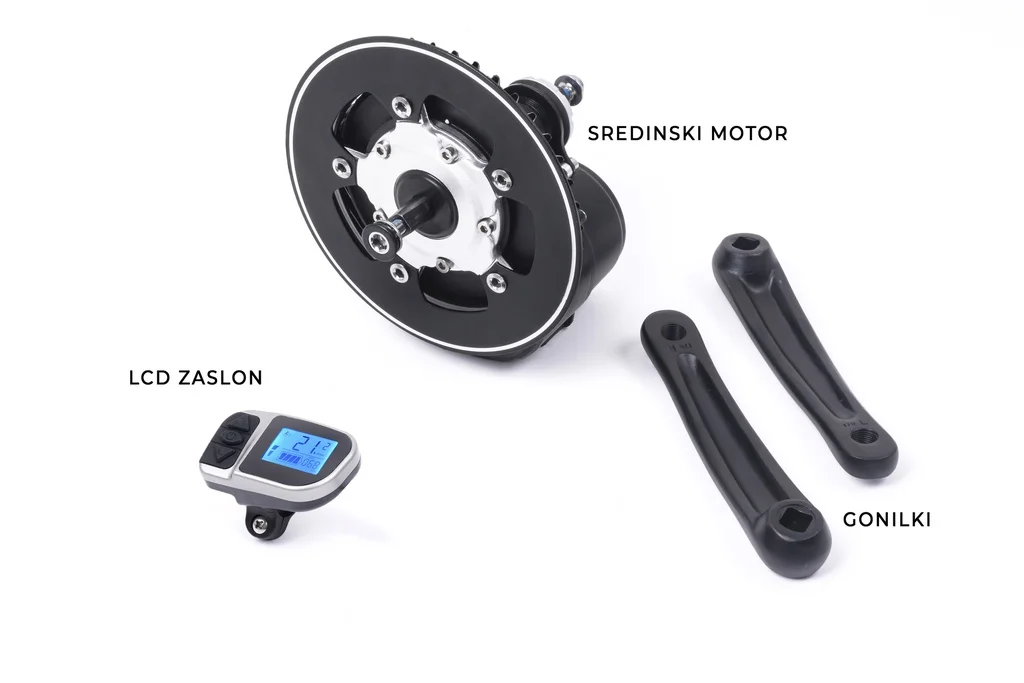

| Contains | Built-in controller, torque sensor, front sprocket, motors and tools |
| Certificate | EN 15194: 2017 |
| Warranty | 12 months |

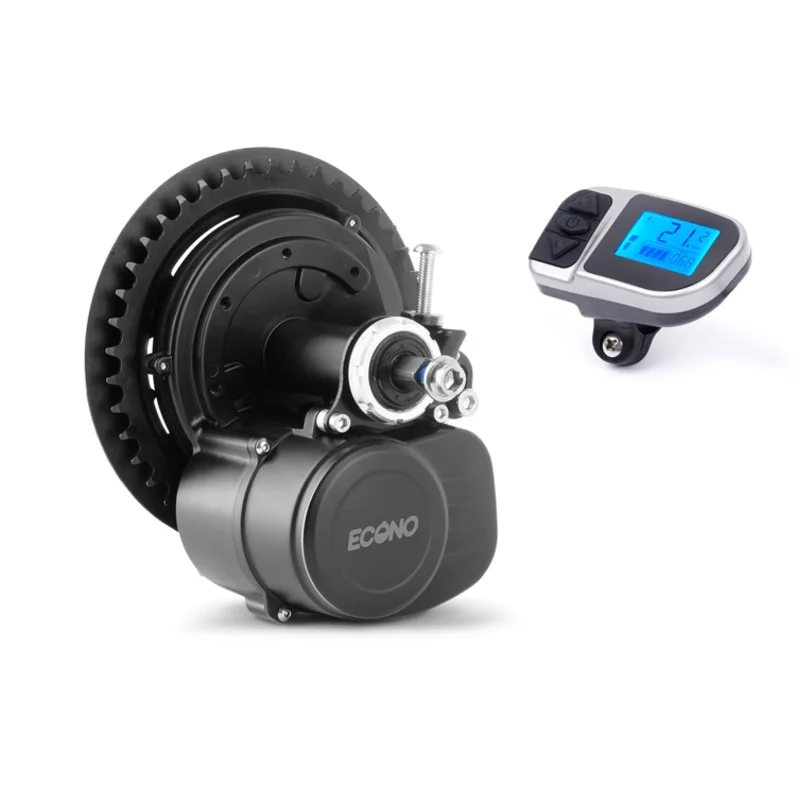

VLCD6 display
The VLCD6 display is compatible with the Central Econo Motors. It is distinguished by its small size and transparency. The screen shall be placed next to the hand handle.
VLCD6 display functions:
4 rates of aid,
battery charge indicator,
instantaneous driving speed (km/h),
average driving speed (km/h),
kilometres travelled (TRIP),
total kilometres travelled (ODO),
turning on the lights,
Walk Assist (6km/H),
driving time,
backlight,
IP 65 protection,
for voltages from 20 to 60V,
dimensions 62 x 44 x 39mm,
temperature range between -20 and 45°C.
