About product

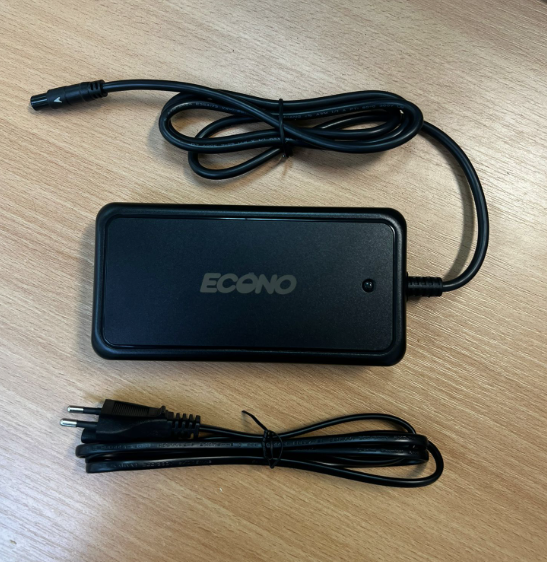

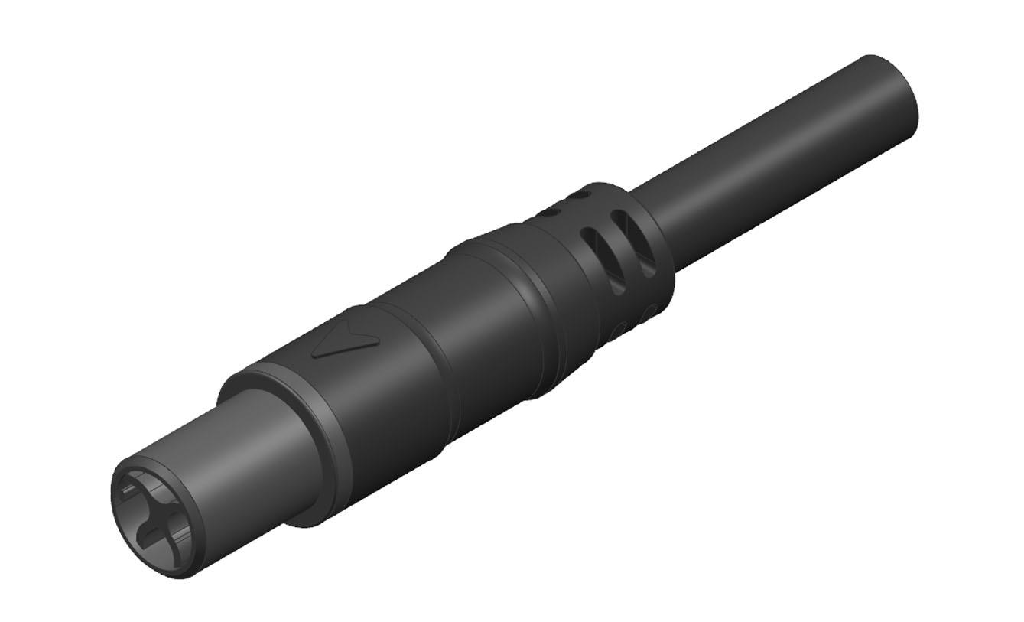

The ECONO Charger current is 4A .The 36V ECONO battery is used by a 4 pin connector. This charger allows the battery temperature to be monitored, which appropriately increases charging safety. The charger charges the battery using the CC-CV method. The maximum charging voltage is 42V.
Charging time
Our batteries can only be charged with ECONO chargers.
ECONO 378Wh battery (10.5Ah)
Napolniti 50%
Približno 3 ure
Charge 100%
Approximately 10 hours
Baterija ECONO 504Wh (14Ah)
Napolniti 50%
Približno 4 ure
Charge 100%
Approximately 12 hours
ECONO 630Wh battery (17.5Ah)
Napolniti 50%
Približno 4 ure
Napolniti 100%
Približno 10 ur
Baterija ECONO 756Wh (21Ah)
Charge 50%
Approximately 3.5 hours
Napolniti 100%
Približno 12 ur
Protective features
Overvoltage protection
Over-current protection
Short-circuit protection
Taking into account the temperature range
It only charges when the battery is in the range between 10 and 45°C, which affects battery lifeCharging mode
Up to approx. 80% charges with constant current 4A (CC)
The last percent with a constant voltage of 42V (CV)
Package included
1x Polnilec za 36V baterijo Comtron / 2A 4pin CAN
1x navodila
