About the product

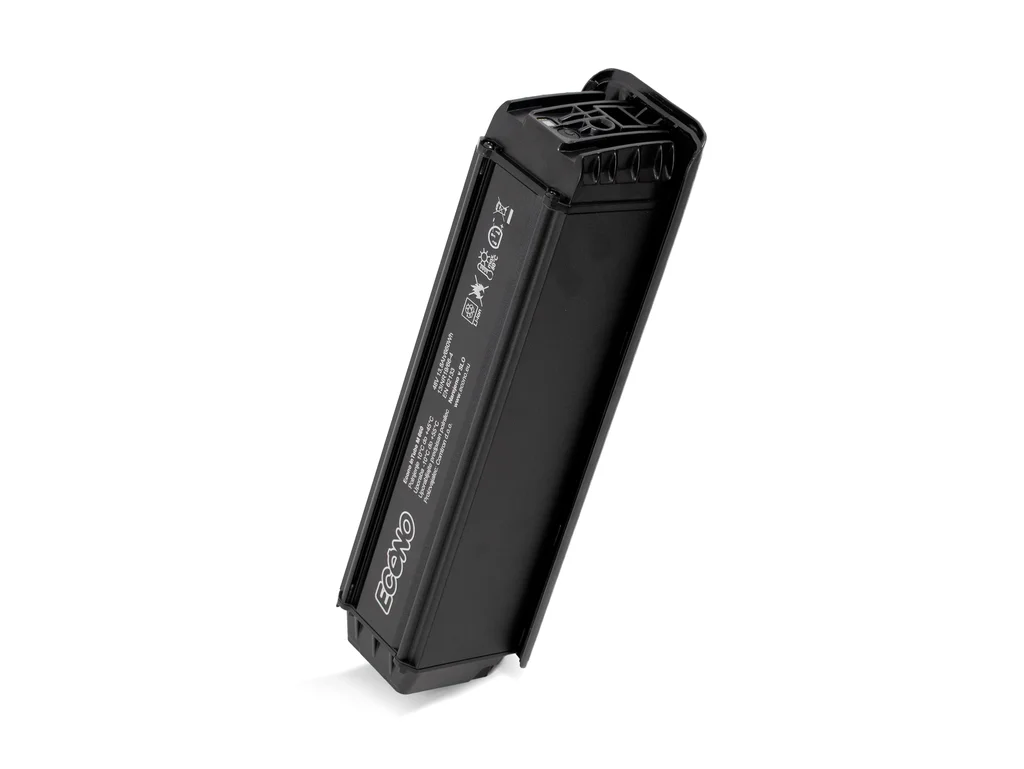

Battery ECONO EQUUS INTUBE L 730 It is an ECONO electric bike battery, composed in Slovenia. The 730Wh and 36V voltage capacity is designed to be placed on the lower tube of the bike frame. In addition to the battery, you also get two keys to lock it in the bike using a built -in lock.
The battery is compatible with ECONO Equus bicycles. It features a charging port and a battery charge indicator. The 730Wh (20.3Ah) capacity provides sufficient energy for both short rides around the city and excursions in the countryside. The battery is compatible exclusively with the original Econo 2A or 4A charger (equipped with a 3-pin connector), which ensures enhanced safety and temperature monitoring during the charging process.
Easy to handle
The battery can be locked on a bike with a key. It can be filled on or off the bike. This also comes to us in the winter when we feed it.
Long life span
The Econo Battery Management System (BMS) protects Li-ion cells from use in extreme conditions, such as high temperatures, overvoltage, etc.
Long-Term Charge Retention
Econo rechargeable batteries retain their charge even after long periods of storage, meaning they do not need to be recharged after an extended break, such as over the winter.
No memorial effect
You can charge the ECONO battery at any time, regardless of the current level of charge. Curitions of the charging process do not harm the battery.
Pictures
The range of batteries
The graph below shows the maximum range of the ECONO EQUUS INTUBE L 730 battery, in combination with various mid-mounted motor assist levels, assuming an average speed of 20 km/h, a total mass of 100 kg, and predominantly flat terrain.
Charging time
Our batteries can only be charged with ECONO chargers.
ECONO / 2A 3pin charger
To fill 50%
About 6 hours
To fill 100%
About 11 hours
Charger ECONO / 4A 3pin
To fill 50%
About 2.5 hours
To fill 100%
About 5.5 hours
Specifications
| Capacity | 730Wh (20.3Ah) |
| Nominal voltage | 36v |
| Max. voltage | 42v |
| Min. voltage | 28v |
| Max. the charging current | 4V |
| Charging temperature | from 10 ° C to 45 ° C |
| Discharge temperature | from -20 ° C to 50 ° C |
| DC connection | 3 PIN |
| Technology | Li-ion |
| A brand of cells | Samsung |
| Dimensions | 42.5 x 9 x 8 |
| Weight | 4,41 kg |
| Include | Battery, instructions |
| Certificate | One 15194 |
| Guarantee | 12 months |
The scope of the package
Econo Equus Intube L 730 Battery
1x instructions
