About the product

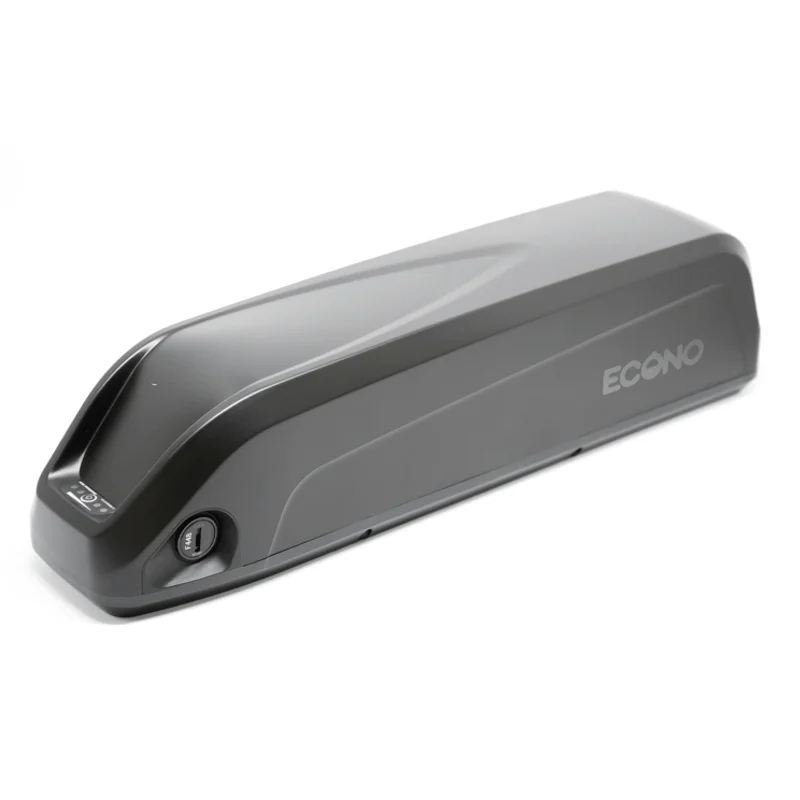

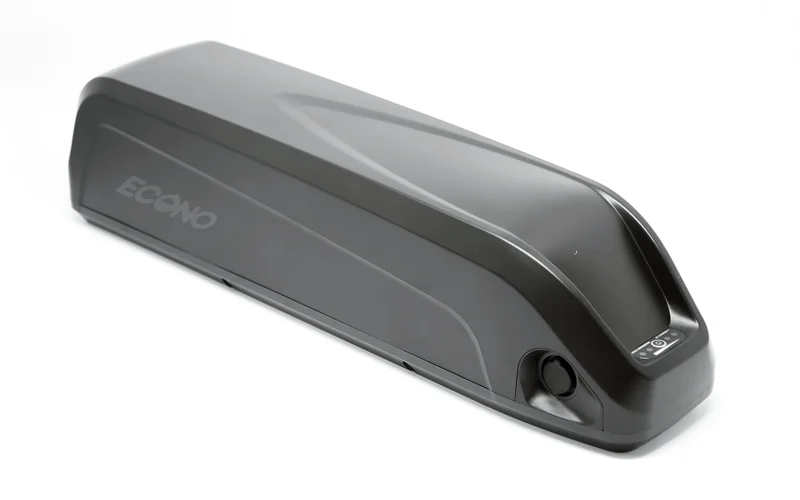

BatteryECONO TUBE M 36V 11.4AH 410WhIt is a battery for an electric bicycle composed in Slovenia. It is designed to place it on the lower hose of the wheel frame or on the dedicated trunk. If you place it on the pipe, then attach the battery carrier to the bidon mounts. In addition to the battery, you also get two keys to lock it on the bracket using a built -in lock.
Baterija je kompatibilna z motorji napetosti 36V. Na bateriji se nahajata priključek za polnilec in indikator napolnjenosti baterije. Battery capacity 11.4Ahprovides you enough energy for shorter tours around the city as well as for trips around the countryside. Baterija je kompatibilna le z original Econo polnilcem 2A ali 4A s 3pin konektorjem, kar zagotavlja večjo varnost in spremljanje temperature med polnjenjem.
Enostavno za rokovanje Easy to handle
The battery can be locked on a bike with a key. It can be filled on or off the bike. This also comes to us in the winter when we feed it.
Long life span
Econo sistem nadzora baterije (BMS) ščiti li-ion celice pred uporabo v ekstremnih pogojih kot so visoke temperature, prekomerna napetost...
A small rate
Tudi po dolgih obdobjih shranjevanja. To pomeni, da Econo polnilnih baterij po daljšem premoru (po zimi) ni treba polniti.
No memorial effect
You can charge the ECONO battery at any time, regardless of the current level of charge. Curitions of the charging process do not harm the battery.
The exceptional efficiency of cells
Samsung celice so odlično uravnotežene v smislu zmogljivosti in zanesljivosti. So zelo stabilne, tudi ob največjih naporih.
Univerzalna uporaba
Econo baterije so kompatibilne z najrazličnejšimi znamkami motorjev, kot tudi z izvedbo motorja (centralni, prednji, zadnji).
Pictures and video
Two positions of assembly
Tube m is easy to handle. Installing the battery on the frame is the best solution, as the center of gravity of the wheel is maintained low and closer to the middle of the bike, which also affects the control of the bike. It can be installed on a wide variety of bicycle frames.
Installing the battery on the boot is a great solution for all wheels with a low input, as it maintains easy entry and exit from the bike, and offers complete freedom when installing or dismantling.
Specifications
| Kapaciteta Discharge temperature | 410Wh (11.4Ah) |
||
| Nazivna napetost Discharge temperature Nominal voltage |
36v |
||
| Max. voltage | 42v | ||
| Min. voltage | 28v | ||
| Max. the charging current | 4V | ||
| Charging temperature | from 10 ° C to 45 ° C | ||
| Temperatura praznjenja Discharge temperature | from -20 ° C to 50 ° C | ||
| DC priključek Discharge temperature | 3 PIN | ||
| Tehnologija Discharge temperature | Li-ion | ||
| Znamka celic Discharge temperature | Person | ||

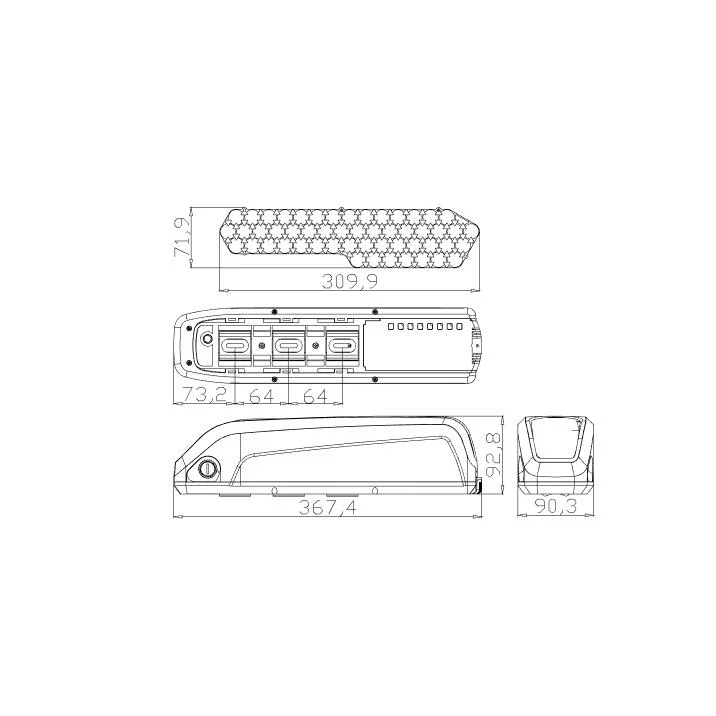

| Dimenzije Discharge temperature | 367.4 x 92.8 x 90.3 mm | ||
| Teža Discharge temperature | approx. 3 kg | ||
| Vključeno Discharge temperature | Battery, 2 keys, instructions | ||
| Garancija Discharge temperature | 12 months |
The scope of the package
-
1x ECONO 410Wh batteries (11.4Ah)
-
2x key
-
1x instructions
-
1x battery -mounted carrier
