ECONO Apes CITY 20 EER4
Meet the new ECONO Apes CITY 20 EER4, Model 2027, a compact and comfortable electric bike designed for urban mobility, everyday commuting, delivery services, and fat-bike enthusiasts.
Powered by a Bafang H550 rear hub motor with 250 W and 55 Nm of torque, it provides smooth and reliable assistance for city riding and longer daily routes. The 20 × 4.0" fat tires, combined with an 80 mm front suspension fork, provide excellent stability and comfort, even on rough asphalt, cobblestones, and also gravel.
Power is supplied by a reliable COMTRON ECONO battery, developed and assembled in our own facility according to high quality and safety standards. For the 2027 model range, it is available in two capacities:
- 600Wh and
- 800Wh.
Both batteries are fully removable and compatible with all ECONO 2027 models, allowing them to be easily swapped between different bikes and providing maximum flexibility for everyday use.
The C080 full-color display provides a clear overview of essential riding information and allows easy control of the electric assistance directly from the handlebar. You can choose between five assistance levels: ECO, TOUR, SPORT, SPORT+, and BOOST.
The Apes CITY 20 EER4 is equipped with Shimano MT-200 hydraulic disc brakes, a Shimano 7-speed drivetrain, a practical MIK-compatible rear carrier, and a foldable handlebar stem for easier storage and transport.
The ECONO Apes CITY 20 EER4 is ideal for riders looking for a comfortable, stable, and practical everyday e-bike. It is also a great choice for professional delivery riders such as Wolt and Glovo couriers, especially with the 800 Wh battery, as well as for anyone who appreciates the distinctive look, stability, and comfort of a fat-tire e-bike.
With its compact dimensions, powerful assistance, high-capacity COMTRON battery, and practical equipment, the Apes CITY 20 EER4 is ready for everything from daily city rides to demanding everyday use.
Key features
Bafang H305 motor
250W 36V 50Nm works with speed senzor
Comtron battery ELK
Interchangeable battery compatible with all models
Clean, simple controls
Compact colorful display
Shimano drivetrain
Shimano 9-speed drivetrain with 11-36T cassette
Shimano hydr. brakes
Shimano 2-piston hydraulic disc brakes
MIK carrier
Click and go system
Lights
Strong LED light on the front
Specification
Product information
Size
UNI (41) (for height: 150cm - 190cm)
Colors
Matt black
Wheel size
20''
Speeds
1x7
Max. weight
125kg (body weight + bike + equipment)
Warranty
3 years frame / 2 years motor, battery / 1 year on components that are not consumables (consumables include tires, inner tubes, chains, sprockets, brake pads, discs, cables, and wires)
Frame
Frame
ECONO Apes fat 20-6061-EE-GEN.1 2027
Fork
20’’ UA20410DLD00 suspension fork
Motor system
Motor
Bafang H550 36V 250W 55Nm
Battery
Comtron ELK 600/800Wh smart / Range autonomy: click here and calculate your range
Charger
Comtron 2A 4pin CAN
Display
Bafang DP C080 CAN
Controller
Bafang 20’’ CR A101.250.FC 36V 15A 250W speed
Senzor
Speed senzor cloud driver CDC
Main front cable
Bafang 1T1.U 1000mm M8.5/M5.4
Transmission & Brakes
Rear Derailleur
Shimano 7s Tourney RD-TY200
Cassette
Shimano 7s MF-TZ50 14-28T
Shifter
Shimano 7s SL-M315-7R shift lever right
Chain
KMC Z7 1/2”*11/128”*122L
Chainwheel
Prowheel PRO-E44 11/128”*44T*165mm (L+R) CL=49mm
Cranks
165mm (L+R)
Bottom bracket
NECO B910-6 BC1.37”*24 120mm 167mm
Brakes
Shimano BR-MT200 hydraulic disc brake
Brake rotors
160/160mm
Wheels
Front hub
---
Rear hub
---
Front rim
20*4.0*13G*36H/6-bolt disk/black
Rear rim
20*4.0*13G*36H/6-bolt disk/black
Tires
CSTCTC06 Big boat 20’’x4.0
Cockpit
Handlebar
ECONO HB-503 BB:25,4 W:600mm BS:5° H:20mm
Stem
ECONO Telescopic FH05W folding
Headset
Neco H146-156ESB THREADLESS 28.6*52.2-56*39.8
Grips
ECONO ergonomic
Saddle
ECONO TTZ516 Touring black 260x200
Seat post
SP-712-350-ASB 30.9 400mm black
Seat clamp
Clamp 34.9
Equipment
Front light
Union-star JY-7260E-K1 6-36V mounted on fork
Rear light
Union-star DC 6-48V
Bell
Yes
Kickstand
Kickstand (direct mount 40mm)
Chainguard
Chainguard 44T,
Mudguards
ECONO Type-20 max.: 20x4.0 matt black
Carrier
ECONO UA20410DLD009-20 20’’ MIK matt black
Pedales
Included

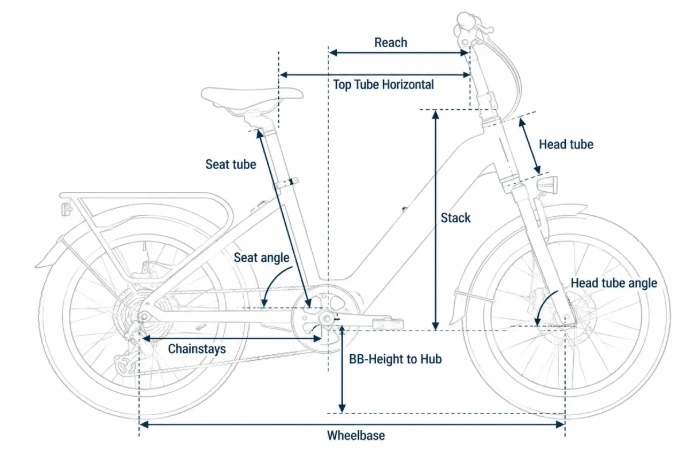

Geometry
Geometry | Value (mm) |
Seat tube | 435 |
Top tube horizontal | 600 |
Reach | 424 |
Stack | 575 |
Head tube | 170 |
Head tube angle | 69° |
Seat tube angle | 69°10' |
Chainstay | 431 |
Wheelbase | 1129 |
BB height to hub | 64 |
