About the product

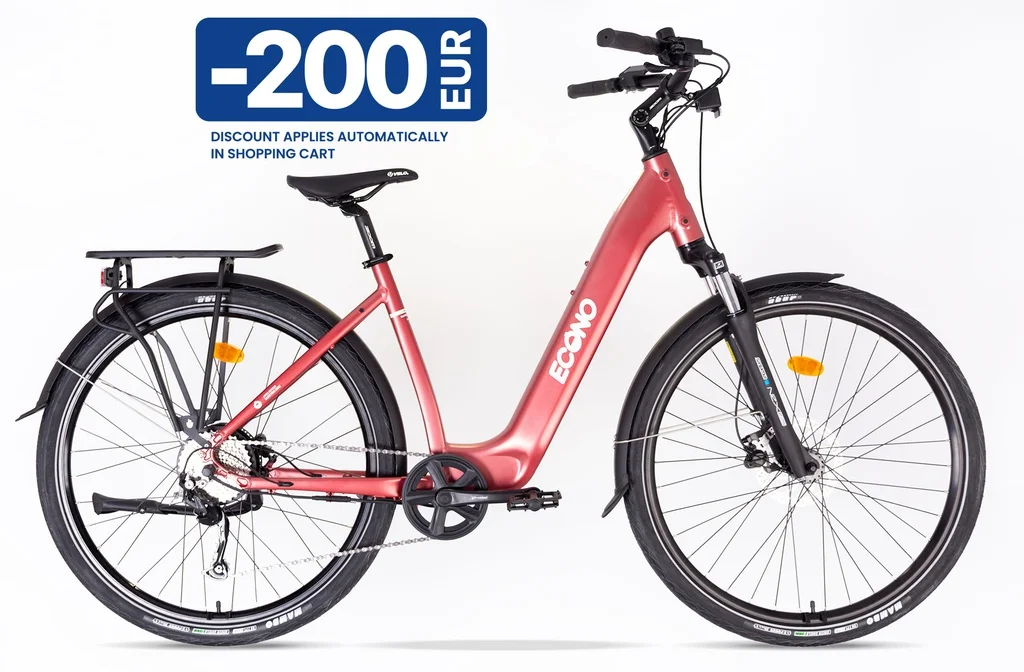

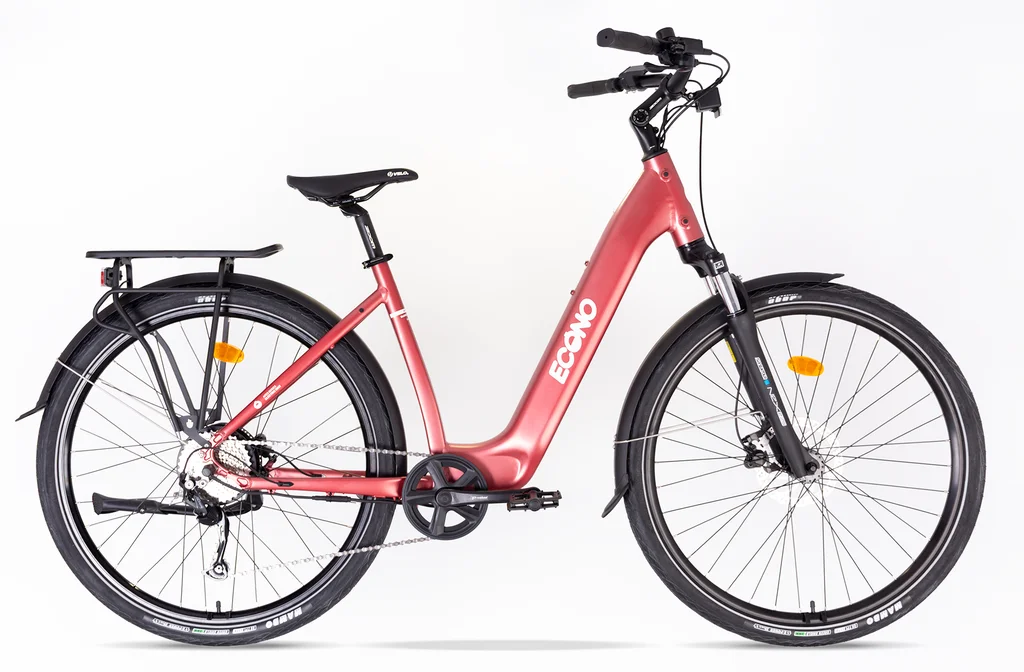

Presentation of the new ECONO City EER5 electric bike - model 2025. The bike is designed for comfortable city driving and exploring even more vibrant terrain, the Econ APES City EER5 is the perfect choice for cyclists looking for reliability, versatility and comfort.
Equipped with a powerful Bafang H400B rear motor delivering 40 Nm of torque, this bike easily handles both flat terrain and climbs. The motor operates with a torque sensor, meaning the ride adapts to your pedal pressure – similar to mid-drive bikes. This feature ensures a natural and efficient ride across all terrains.
The bike is powered by a reliable ECONO battery that we develop and assemble at our plant. There are three capacities: 520Wh, 700Wh and 800Wh. All batteries are interchangeable between models for 2025, which gives even more flexibility for your needs. You follow the driving data on a compact, color side screen where you can choose from five levels of help: ECO, Tour, Sport, and Boost.
For a comfortable ride, the SR Suntour front suspension with 75mm travel takes care of bumps, while the Tektro HD-M280 hydraulic brakes provide reliable and safe stopping power. The Shimano Altus 9-speed drivetrain ensures smooth shifting, further contributing to a confident and fluid ride.
The ECONO Apes City EER5 is designed with comfort: wide seat, ergonomic handles, adjustable handlebar carrier and curved handlebar allow for upright posture and relaxed position while driving.
This versatile electric bike is ideal for everyday rides around the city, exploring the surroundings and relaxed trips, even on more challenging trails. The Econo Apes City EER5 is your reliable partner for carefree and comfortable cycling wherever you need.
Specifications
| Frame | 28 '' ALU 6061 EER |
| Fork | Suntour Nox-E25-Lo-DS, 75mm, Tapered |
| Wheel size | 28 '' |
| Speeds | 9 gears |
| Gear shifters | Shimano Altus SL-M2010 9s |
| Rear derailleur | Shimano Altus RD-RD-M2000, SGS 9s |
| Crankset | 38t, 170 mm |
| Brakes | Tektro HD-M280 Hidravlične disk zavore |
| Brake discs | Front: 180mm; Behind: 160mm |
| Tyre | OBOR Mambo E25 28"x2.0 (50-622) |
| Wheelset | 700c/28 "36h Aluminium Double Walled Rome, 622x24mm |
| Hubs | Joytech QR 9x100mm is |
| Cassette | Shimano Acera CS-HG201 9S 11-36T |
| Handlebar | Alu. Black 680mm, 31.8mm City Style |
| Stem | Alu. Black AdJustable 0-90 °, 31.8mm |
| Seatpost | Alu. Black 30.9mm |
| Saddle | Velo VL-3644 |
| Pedals | FP-803 Plastic |
| Front light | C13 Pure, 6-48V, DC |
| Rear light | WUXING, WD216.6-48V, DC |
| Motor | Bafang H400B 250W 36V 40Nm (rear hub motor) deluje z senzorjem obratov v gonilki. |
| Display | Bafang DP C080 |
| Battery | ECONO ELK 520Wh, 700Wh or 800Wh |
| Maximum total weight allowed | 135 kg (the largest weight of a rider and bicycle) |
| Accessories | Kickstand, fenders, rear carrier |
| Charger | ECONO 36V 2A 3pin for battery 520Wh and ECONO 36V 4A 3pin for 700Wh and 800Wh battery |
| Weight | 22.6 kg - without battery |
| Guarantee | 2 years on the battery and motor, 3 years on the frame, and 1 year on components that are not consumables (brake pads, disc, tires, inner tube, chain, sprocket). |
Technology
Rear motor
Bafang H400B, 250W 36V 40nm. Operates with a torque sensor. Installed in the rear hub of the wheel.
A detachable integrated battery
ECONO ELK 36V 520, 700 or 800Wh battery. Enabled easy removal and installation of the battery in the frame.
ECONO 2A/4A charger
When purchasing the 520Wh battery, a standard 2A charger is included. When purchasing the 700Wh or 800Wh battery, a faster 4A charger is included.
Bafang C080
You follow the driving data on a compact, color side screen. Aid available: OFF, ECO, TOUR, Sport, Sport+ and Boost.
Aluminum lite
6061 aluminum alloy is resistant to corrosion and stress, making it suitable for lightweight tubes with high stiffness.
Comfortable geometry
With a specially designed frame, you can also cycle longer distances.
Hydraulic brakes
Hydraulic brakes for maximum stopping power in all conditions.
Quick Release OS
QR OS for faster removal and attachment of wheels.
Lights
Be visible and increase your safety and time on the wheel with the front and rear LED lights.
MIK compatible trunk
With a MIK universal click system, you can replace cycling accessories without effort.
A size table
Properly selected bike size is crucial for your safety and comfort. The appropriate size is selected based onour body height.
| Body height (cm) | Size |
| 153-170 | S/m |
| 170-187 | L |
