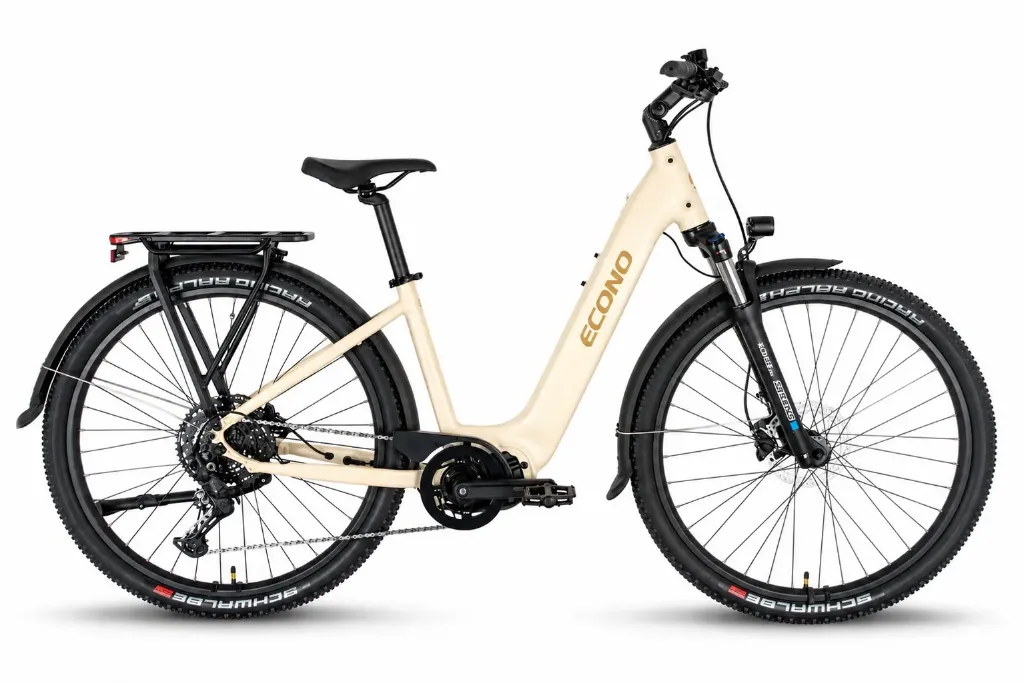

ECONO Equus SUV 29 EEC5
Meet the new ECONO Equus SUV EEC5, Model 2027, a versatile and comfortable electric trekking bike designed for everyday mobility, urban commuting, countryside adventures, and gravel riding. Combining the practicality of a city bike with the capabilities of an SUV-style e-bike, it is ready for a wide variety of riding conditions.
Powered by a Bafang M410 mid-drive motor with 250 W and 90 Nm of torque, it delivers powerful and reliable assistance for city streets, hilly terrain, countryside routes, and demanding everyday rides. The Schwalbe 2.25" tires provide excellent grip, stability, and enhanced riding comfort on asphalt, cobblestones, gravel roads, and mixed terrain.
Power is supplied by a reliable COMTRON ECONO battery, developed and assembled in our own facility according to high quality and safety standards. For the 2027 model range, it is available in two capacities:
600 Wh
800 Wh
Both batteries are fully removable and compatible with all ECONO 2027 models, allowing them to be easily swapped between different bikes and providing maximum flexibility for everyday use.

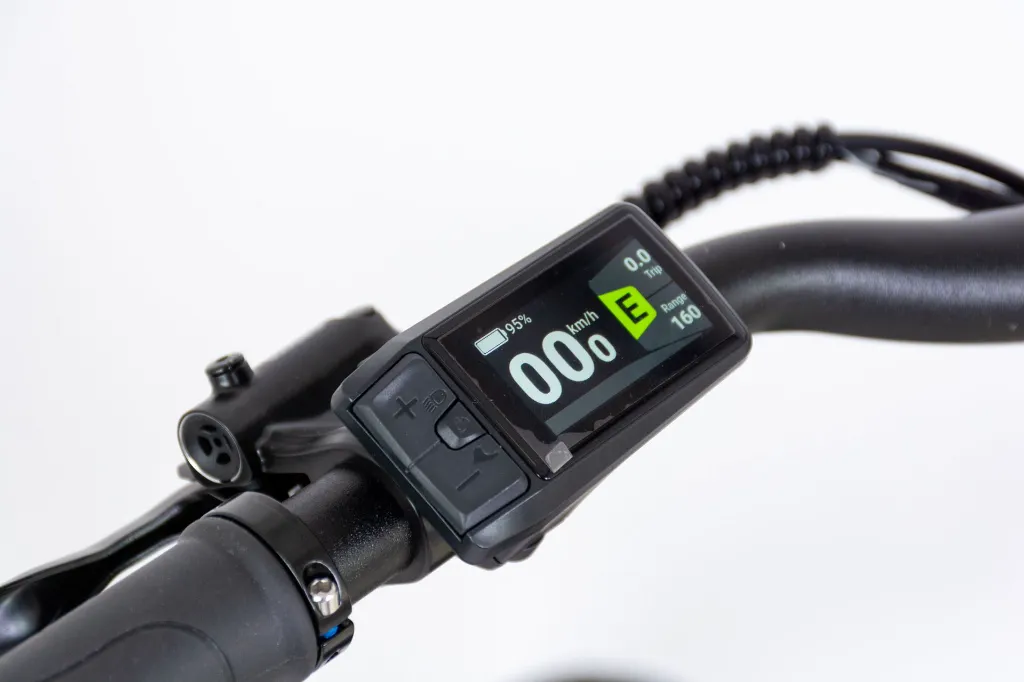

The C080 full-color display with Bluetooth connectivity provides a clear overview of essential riding information and allows easy control of the electric assistance directly from the handlebar. You can choose between five assistance levels: ECO, TOUR, SPORT, SPORT+, and BOOST.
The Equus SUV EEC5 is equipped with Shimano MT-200 hydraulic disc brakes, a Shimano CUES 10-speed drivetrain, a practical MIK-compatible rear carrier, and an adjustable handlebar stem. Ergonomic grips and a comfortable saddle further enhance comfort on daily commutes and longer trekking adventures.
The ECONO Equus SUV EEC5 is ideal for riders looking for a versatile electric bike that performs equally well in the city and beyond. Its SUV-inspired design makes it an excellent choice for urban commuting, countryside exploration, gravel roads, and mixed terrain. The powerful Bafang M410 motor, comfortable riding position, and wide Schwalbe tires make it a dependable companion for everyday mobility and recreational adventures.
With its powerful 90 Nm mid-drive motor, high-capacity COMTRON battery, comfortable components, and versatile equipment, the Equus SUV EEC5 is ready for everything from daily city rides to longer trekking journeys and gravel adventures.
Key features
Bafang M410 motor
250W 36V 90Nm
Comtron battery ELK
Interchangeable battery compatible with all models
Clean, simple controls
Compact colorful display with Bluetooth
Shimano drivetrain
Shimano 10-speed drivetrain with 11-48T cassette
Shimano hydr. brakes
Shimano 2-piston hydraulic disc brakes
MIK carrier
Click and go system
Lights
Strong LED light on the front
Specification
Product information
Size
S/M (43) (for height: 150cm - 170cm and L (48)) (for height: 170cm - 190cm)
Colors
Matt ivory white
Wheel size
29''
Speeds
1x10
Max. weight
125kg (body weight + bike + equipment)
Warranty
3 years frame / 2 years motor, battery / 1 year on components that are not consumables (consumables include tires, inner tubes, chains, sprockets, brake pads, discs, cables, and wires)
Frame
Frame
ECONO Equus 29-6061-EE-GEN.1.2. 2027
Fork
SR Suntour SF21-XCM32-ATB DS-LO-29-80
Motor system
Motor
Bafang M410 36V 250W 90Nm
Battery
Comtron ELK 600/800Wh smart / Range autonomy: click here and calculate your range
Charger
Comtron 2A 4pin CAN
Display
Bafang DP C080 CAN Bluetooth
Controller
-
Senzor
-
Main front cable
-
Transmission & Brakes
Rear Derailleur
Shimano Cues RD-U6000 10s
Cassette
Shimano Cues CS-LG300 10s 11-48T
Shifter
Shimano Cues SL-U60001 10s shift lever right
Chain
Shimano CN-LG500 10s 124L
Chainwheel
Bafang M410 CW G3320.1A 1/2’’*11/128’’ 38T narrow wide
Cranks
Bafang M410 165mm (L+R)
Bottom bracket
Brakes

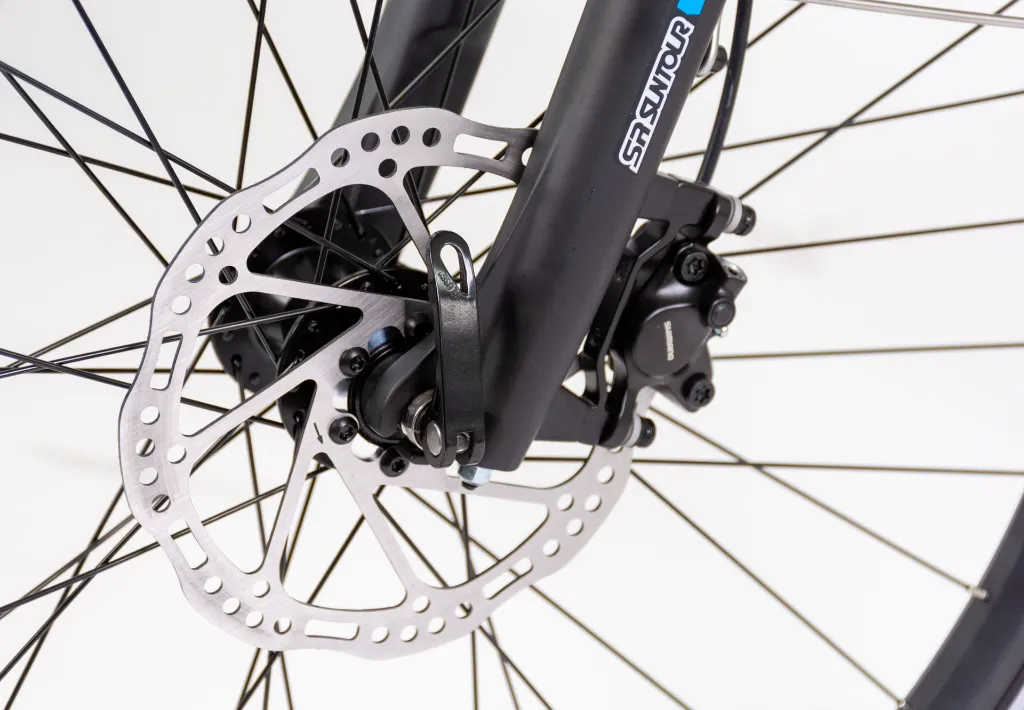

Shimano BR-MT200 hydraulic disc brake
Brake rotors
180/180mm
Wheels
Front hub
Joytech QR9X100mm
Rear hub
Joytech QR9X135mm
Front rim
Star 622x30C H:21.5 14G/36H/6-bolt disk/black
Rear rim
Star 622x30C H:21.5 14G/36H/6-bolt disk/black
Tires

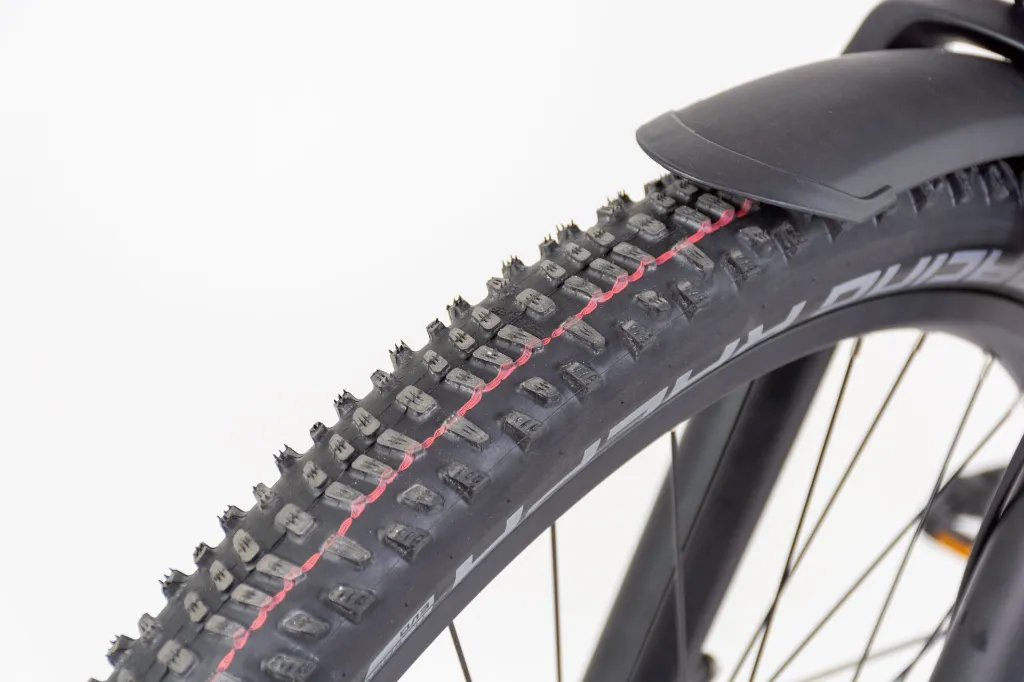

Schwalbe Racing Ralph HS490 29*2.25 SOFT
Cockpit
Handlebar
ECONO SUV BB:31.8 W:700mm B:18° H:20mm

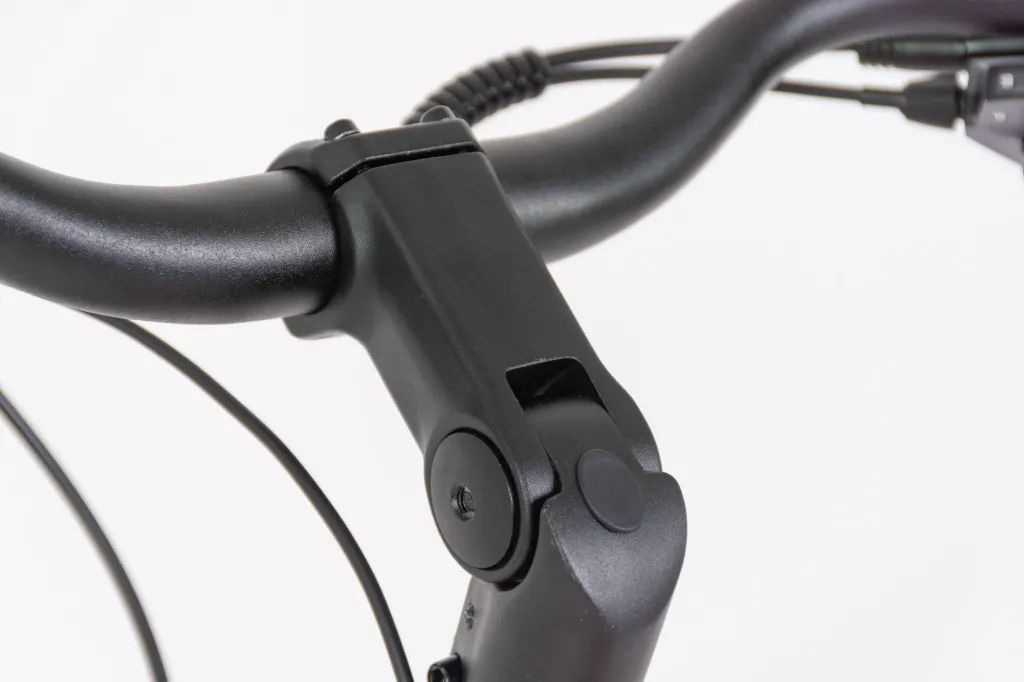

Stem
ECONO CITY ST286-90B R:35° E:90 BB: 31,8 Adjustable: 0°-50°
Headset
Neco H322MP-156SB integrated cables 130° lock
Grips
ECONO ergonomic

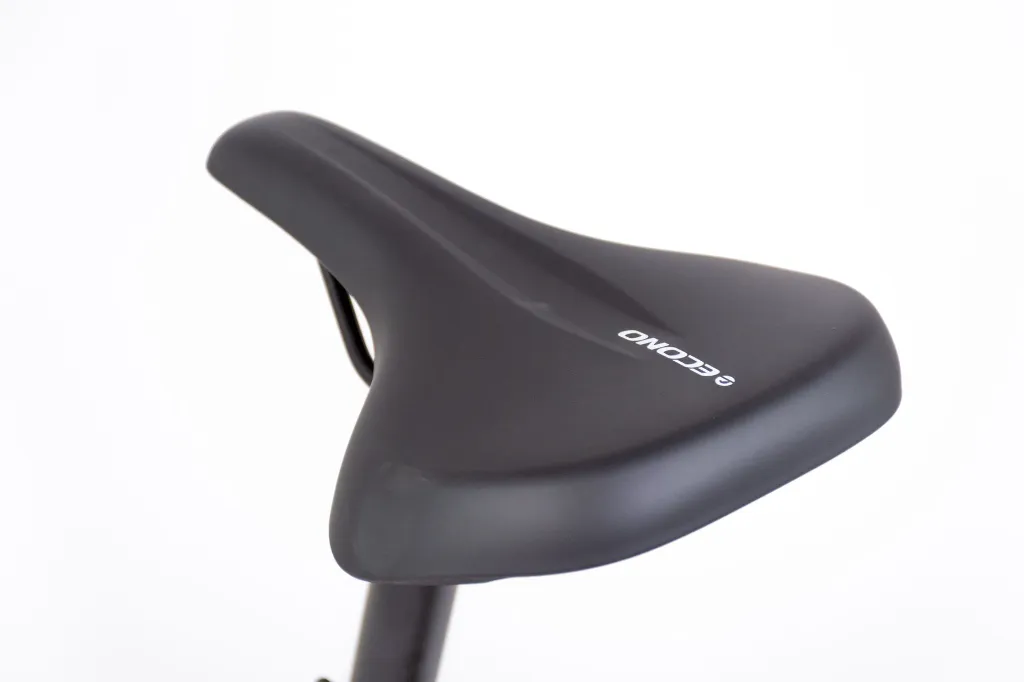

Saddle
ECONO TTZ516 Touring black 260x200
Seat post
SP-712-350-ASB 30.9 350mm black
Seat clamp
Clamp 34.9
Equipment
Front light
Union-star JY-7260E-K1 6-36V mounted on fork

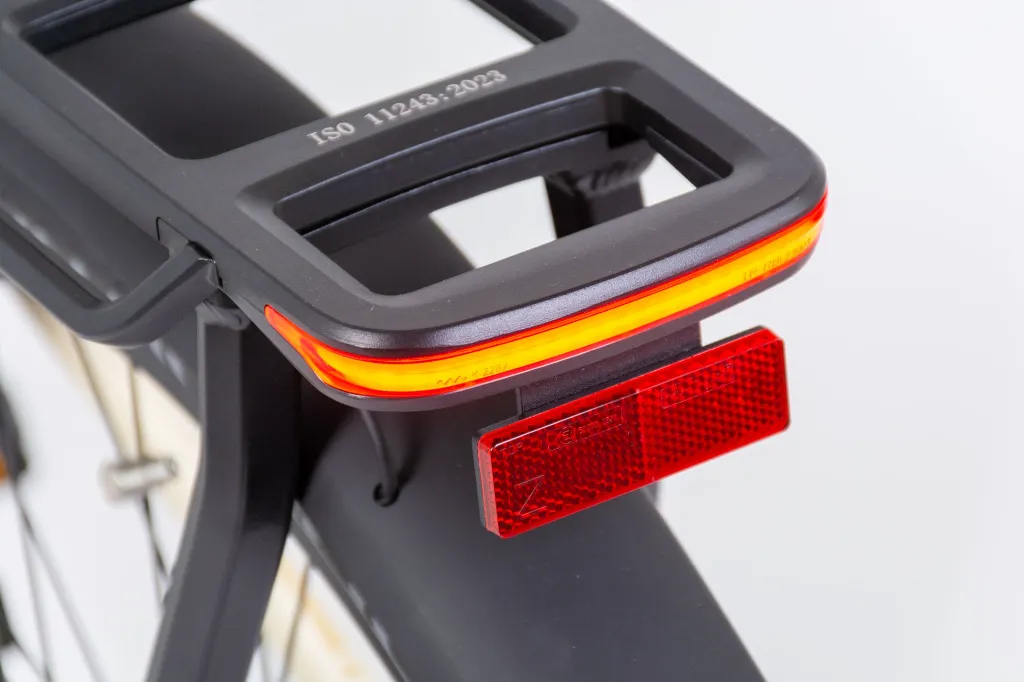

Rear light
ECONO JY-6295E-K DC 6-48V integrated in carrier
Bell
Yes
Kickstand
Kickstand (direct mount 40mm)
Chainguard
38T ALU short matt black bafang compatible
Mudguards
ECONO Type T2 29-70 max.: 29x2.35 matt black
Carrier
ECONO XH 29’’ MIK HD matt black
Pedales
Included
Geometry
Geometry | Value (mm) |
Seat tube | 435 |
Top tube horizontal | 600 |
Reach | 424 |
Stack | 575 |
Head tube | 170 |
Head tube angle | 69° |
Seat tube angle | 69°10' |
Chainstay | 431 |
Wheelbase | 1129 |
BB height to hub | 64 |
Alternative Products
These other products might interest you
Attributes
| Bike | |
|---|---|
| Size | S/M | L |
| Sitting position | Upright |
| Frame type | Easy entry / stepthru |
| Wheel size | 29 ” |
| Speeds | 10 gears |
| Suspension | Front suspension |
| Bike speciality | |
| E-bike | |
|---|---|
| Battery | 600Wh (16.5Ah) | 800Wh (23Ah) |
| Motor position | Center (middle) |
| Motor | Bafang M410 |
| Torque | 90Nm |
| Display | Bafang DP C080 |
| Others | |
|---|---|
| Brand | ECONO |
| Model year | 2027 |
| ECONO series | Equus |
