About product

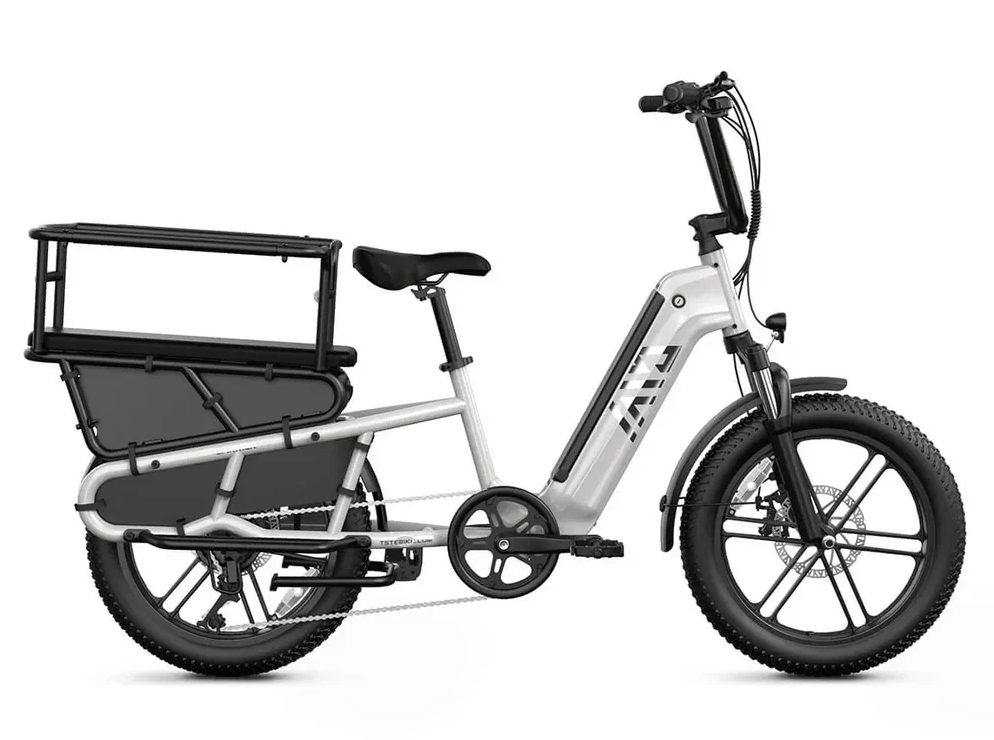

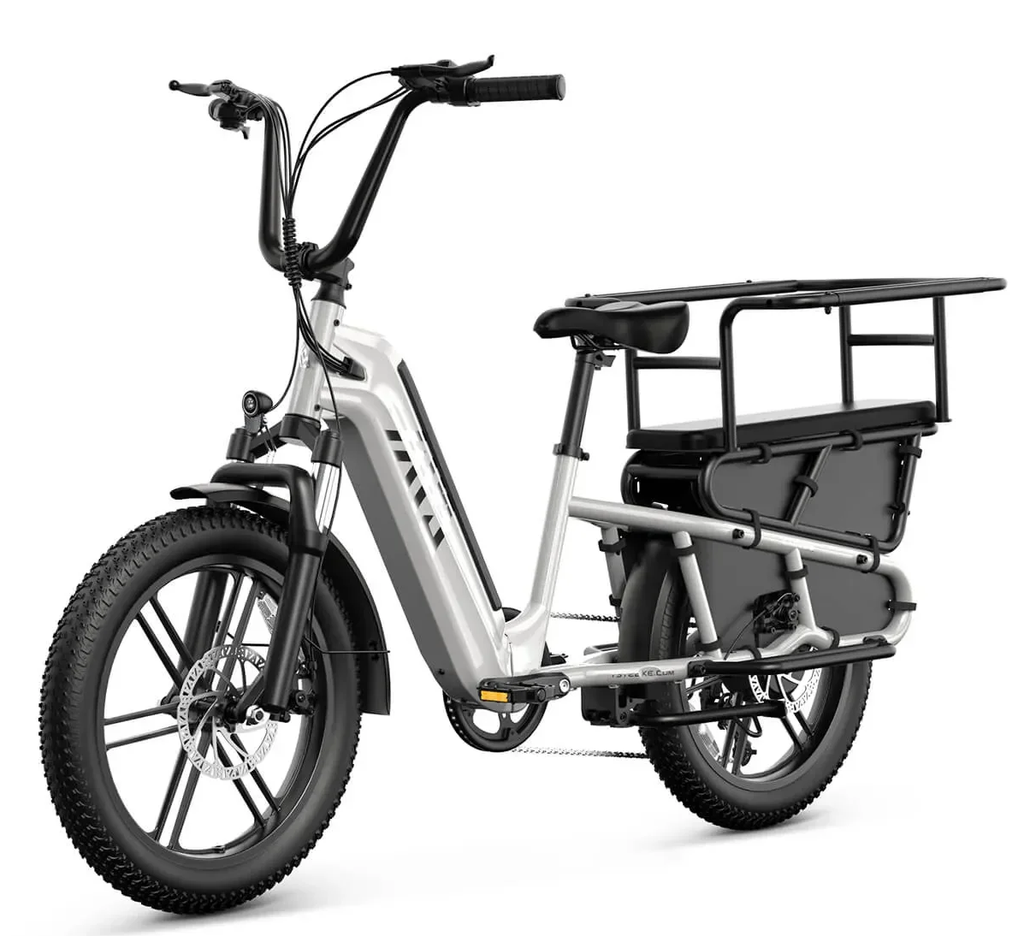

TST Carrier 20" – electric cargo bike

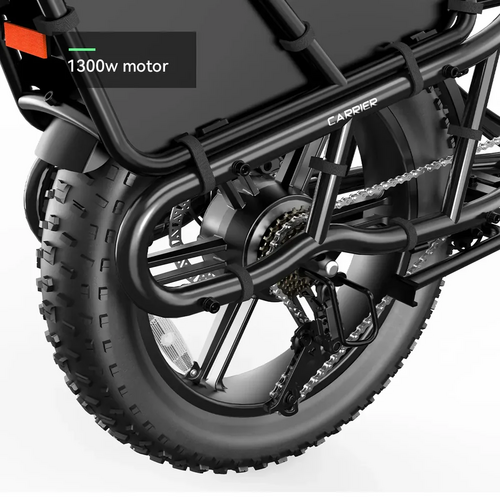

The TST Carrier is a powerful electric cargo bike designed for daily commuting, city riding, school runs, and deliveries. Its rear hub motor, delivering 90 Nm of torque, provides ample power even when riding uphill or carrying heavy loads.
The 48 V, 15 Ah battery provides a range of up to approximately 97 km, while the wide 20 × 3" tires ensure good stability and ride comfort.
Powertrain system
- Motor: Rear hub motor
- Motor type: Brushless geared motor
- Maximum motor power: 1300 W
- Maximum torque: 90 Nm
- Top speed: Up to 28 mph (approx. 45 km/h)
- Drivetrain: Shimano, 7 speeds
- Electric assist levels: 1–5
Battery and range
- Battery: Lithium-ion
- Voltage: 48 V
- Capacity: 15 Ah
- Charger: 54.6 V / 2 A
- Čas polnjenja: Charging time: approximately 7–8 hours7–8 ur
- Range: up to 60 miles (approximately 97 km)
Brakes and wheels
- Brakes: hydraulic disc
- Brake disc diameter: 180 mm
- Tires: 20 × 3"
- E-bike-ready tires
Technical specifications
- Model: TST Carrier
- Type: Electric cargo bike
- Wheel size: 20"
- Motor: Rear hub, brushless with gear reduction
- Peak power: 1300 W
- Torque: 90 Nm
- Battery: 48 V / 15 Ah
- Drivetrain: Shimano, 7 speeds
- Electric assist levels: 1–5
- Brakes: Hydraulic disc, 180 mm
- Tires: 20 × 3"
- Range: Up to approx. 97 km
- Load capacity: Up to 450 lb (approx. 204 kg)
- Bike weight: 90.39 lb (approx. 41.0 kg)
Technology
Frame
Of aluminium alloy
Gears
Shimano 7 speed.
Brakes
Mechanic Disc brakes
Charging time
5 hours
Range
Up to 120 km
Maximum speed
25 km/h
Motor power
1300 W, in the rear wheel
Assistance level
5 levels
Specifications
| Frame | Aluminium 6061 alloy | ||
| Frok | Spring-loaded | ||
| Rear shock | - | ||
| Wheel size | 20 inch wheels | ||
| Braking system | Hydraulic Disc Brakes | ||
| Brake length | 5m (at speeds of 20 km/h and a lower background), 10m (at speeds 25 km/h and on a lower surface) | ||
| Compound size | - | ||
| Exhibited size | 180,1 cm × 115,1 cm | ||
| Maximum speed | 25km/h | ||
| Maximum inclination of driving | 10% | ||
| Working temperature | From -10°C to 50°C | ||
| Battery weight | 2,2 kg | ||
| Display unit | 5 levels | ||
| Lights | Front and rear LED light | ||
| eDrive | 1300 rear hub motor 90Nm torque | ||
| Battery | Integrated/locked/removable, 36V/504 Wh | ||
| Load capacity | 200 kg | ||
| Range | 120 km | ||
| Charging time | 5-6 hours | ||
| Weight | 41 Kg |
