About product

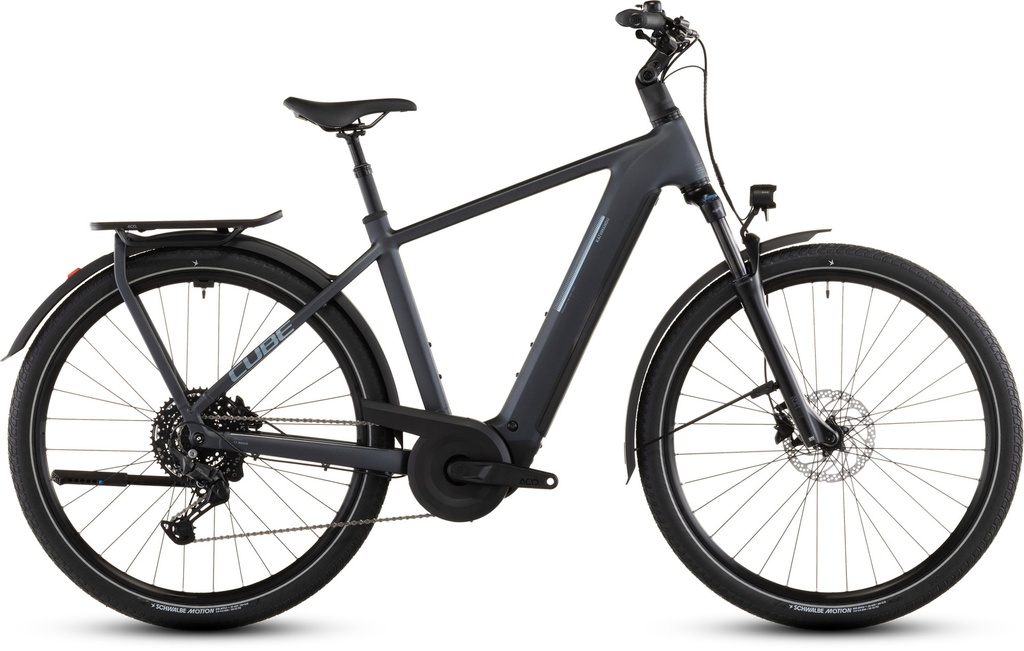

Cube Kathmandu Hybrid ONE 800 metallicgrey´n´grey
The Kathmandu Hybrid Pro stands for the ultimate freedom on two wheels - and therefore has a powerful Bosch motor on board! It also has the super-elegant, stable integrated IC 3.0 luggage rack, which has room for everything you need to take with you on tour. Its Bosch CX drive and 800 Wh PowerTube battery are so neatly and aesthetically integrated into the frame design that they are barely noticeable. What is noticeable, however, is the powerful support. The wide-ranging Shimano XT 12-speed drivetrain shifts precisely from gear to gear. The powerful hydraulic 4-piston disc brakes from Shimano work just as precisely, reliably slowing and stopping the bike. The whole thing is rounded off by a comprehensive set of accessories, including an extremely comfortable parallelogram seat post. So, where do you want to go on your next adventure?
The complete equipment package – mudguards, lights, ACID SIC 2.0 luggage rack, and kickstand – means the bike is ready both for everyday errands and for longer tours.
Highlights:
Elegant aluminum frame with internal cable routing, UDH derailleur hanger, designed for a maximum system weight of 140 kg.
Powerful Bosch CX motor for ultimate riding fun and thrust on the mountain
Bosch PowerTube 800 Wh battery for long range.
Bosch Kiox 500 display for clear and intuitive e-bike control.
SR Suntour NX1-32 LO Air suspension fork with 100 mm travel.
The Shimano XT 12-speed gear system ensures lightning-fast and precise gear changes
Hydraulic 4-piston disc brakes from Shimano for precise safety
A versatile, almost indestructible UDH mount integrated into the frame
Elegantly integrated IC 3.0 pannier rack - stylish and practical for all adventures
The low step-through frame of the CUBE Kathmandu Hybrid lives up to its name, making it super easy to get on and off, so you can start your adventure straight away! But there's more, for example the Bosch CX motor with its 800 Wh PowerTube battery, which is aesthetically and cleanly integrated into the design, and our Efficient Comfort Geometry, which works harmoniously with the 100 mm suspension fork to optimize control, especially in difficult conditions. In addition, the internal cable routing underlines the clean look of the chassis. What else? A versatile, almost indestructible UDH for easy availability of spare parts, an integrated chain guard and our stable, robust, extremely attractive integrated IC 3.0 luggage rack, which has room for everything you need to take with you on a tour of discovery.
Manufacturer code: 111202
EAN: 4054571496843
Model year: 2026
Specifications
| Frame | Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, UDH™, Fully Integrated Battery, IC 3.0, Advanced Internal Cable Routing, Integrated Seatclamp |
| Frame material | aluminium |
| Wheel size | 28" |
| Speeds | 1 x 12 |
| Fork | SR Suntour NX1-32 LO Air, Tapered, 15x110mm, 100mm |
| Travel | 100 mm |
| Brakes | Shimano BR-MT420, Hydr. Disc Brake |
| Brake discs | 180/180 mm |
| Headset | ACROS AZF-1035, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), HIC |
| Stem | CUBE Comfort Stem Pro, 31.8mm, Adjustable |
| Handlebar | CUBE Comfort Trail Bar, 700mm |
| Grips | ACID Travel Comfort |
| Saddle | ACID Sequence 180 |
| Seatpost | SR Suntour NVX, 31.6mm |
| Crankset | ACID MTB Hybrid Pro, 40T |
| Rear derailleur | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
| Gear shifters | Shimano Deore SL-M6100-IR, Direct Attach |
| Chain guard | Yes |
| Cassette | Shimano Deore CS-M6100, 10-51T |
| Chain | KMC e12 |
| Tyre | Schwalbe Marathon Efficiency, PerfL, 55-622 |
| Wheelset | ACID SLX 25, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Display | Bosch LED Remote, Bosch Kiox 500 |
| Battery | Bosch PowerTube 800 |
| Charger | Bosch 2A |
| Motor | Bosch Drive Unit Performance Line CX max.100 Nm Gen.5, (BDU38), Smart System |
| Front light | ACID Front Light PRO-E 150 X-Connect, 12V, DC |
| Rear light | ACID Mudguard Rear Light PRO-E, 12V, DC |
| Carrier | ACID Integrated Carrier 3.0, CUBE Adapter Compatible |
| Pedals | ACID PP MTB |
| Other details | mud guard, stand, bell |
| Maximum total weight allowed | 140 kg (weight of cyclist + bike + equipment) |
| Weight | 29,9 kg |
Video
From 00:36:05 To 00:37:12 is Kathmandu Hybrid
Size chart
Choosing the correct frame is key to a comfortable and safe ride. Based on your height and inseam length, our frame size calculator helps you find the ideal size for optimal comfort, control, and riding efficiency.
