Battery variants and production
Baterijo Reention EEL IE lahko izdelamo v različnih konfiguracijah, po željah naročnika. Izbirate lahko med kapacitetami spodaj ali pa po dogovoru.
36V 17.5Ah 630 WH- 10S5P, 3500mAh Samsung cells, LG
48V 14Ah 672Wh- 13s4p, 3500mAh Samsung cells, LG
Custom ...
Are you a manufacturer or do you need batteries in different quantities? We make high quality custom batteries tailored to your requirements. Whether you need a smaller series or larger production, we offer you the right solution.

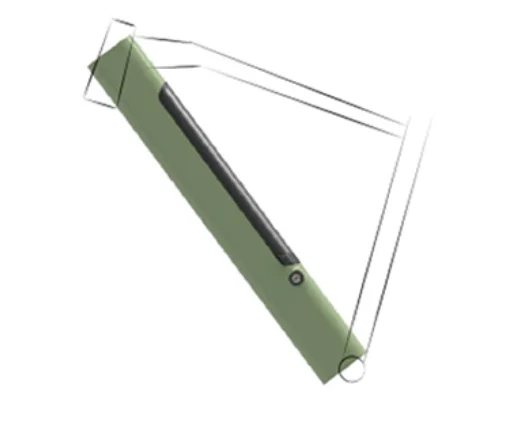

Case specifications
| The name of the producer | Reention |
| Model | Eel (IE-PRO, IE-MINI) |
| Battery position | Intube (built in frame) |
| No. cells | 52 type 18650 |
| Weight | Depending on the configuration |
| Configuration | 10S5P (18650), 13S4P (18650) |
| Capacity | From 504Wh to 672Wh |
| Lock | On the frame |
| Connector | Dc 2.1, 3pin, 4pin |
| Dimensions | |
| The maximum output current | 20a |
| BMS | Smart |
| Communication | Can |
| Oem | Over 100 pcs |
| IP protection | Ipx5 |
| Charging indicator | 1 LED, 3 colors |
| Izhodni Connector | 6-pin |
| Standards | UN38.3, EN50604 |
BMS specifications
| Ordinary BMS | Smart BMS | |
| Nominal voltage | 36V/48V | 36v |
| Series configuration | 10s, 13s | 10s |
| Min. voltage | 2.8V/ Cell | 2.8V/ Cell |
| Max. charging current | 4a | 4a |
| Max. discharge current | 20a | 20a |
| Balancing cells | Yes | Yes |
| Cut-off temperature | 65 ° C | Custom -made |
| Basic protection | Yes | Yes |
| A separate output for charger | Not | Yes |
| Can Communications | Not | Yes |
| Smart charger | Not | Yes |
| Diagnostics | Not | Yes |
