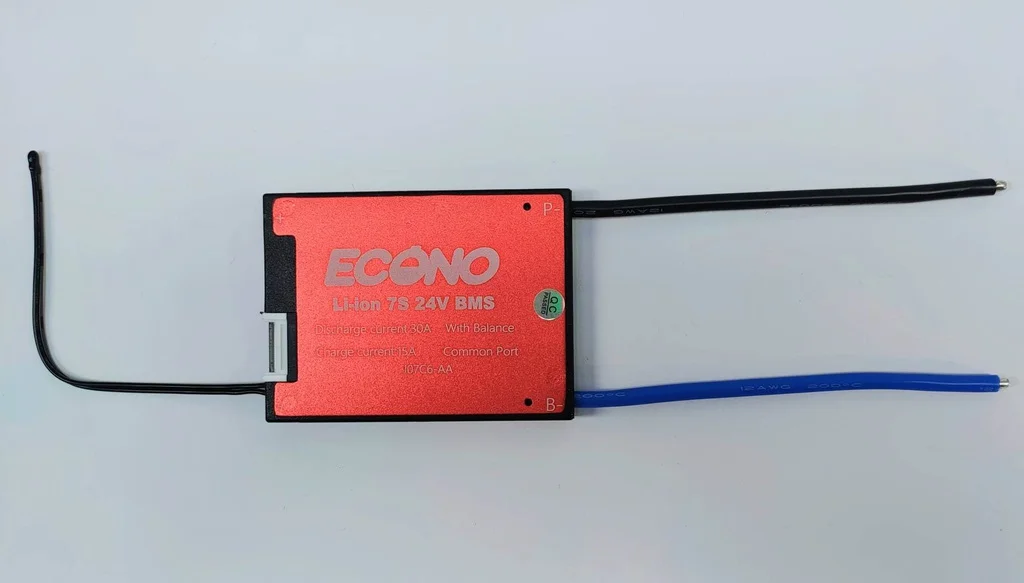

About the product
BMS vezje je namenjeno za zaščito in nadzor baterije. Namenjeno je za Li-ion celice. Funkcije BMS-a:
Protection against cell overcrowding
Cell overheating protection
Protection against overflow
Protection of a short circuit
Protection from discharging
Balancing Cells (Keeping all cells at the same voltage level)
Specifications
| Nominal voltage: | 24V |
| Series configuration: | 7s |
| Min. voltage: | 19.6V |
| Max. charge current: | 15a |
| Max. discharge current: | 30a |
| Cell balance: | Yes |
| Cut-off temperature: | 65 ° C |
| Dimensions: | 82mm x 62mm x 9.5mm |
| Separate exit for charger: | Not |
The scope of the package
1 x BMS circuit 7s 30a
1 x next to the cell balancing cable.
