About the product

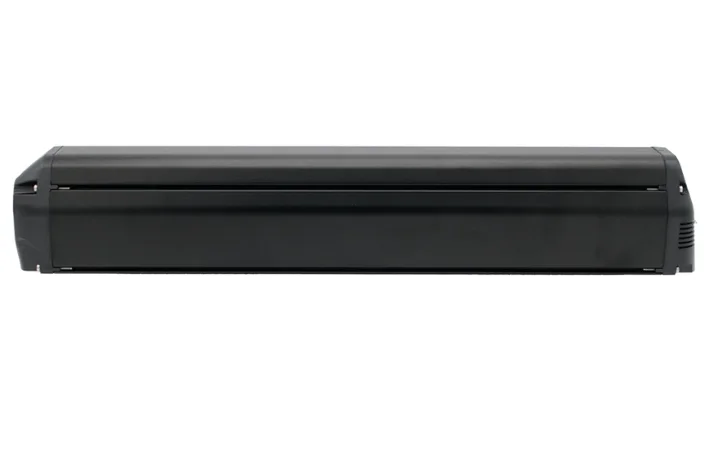

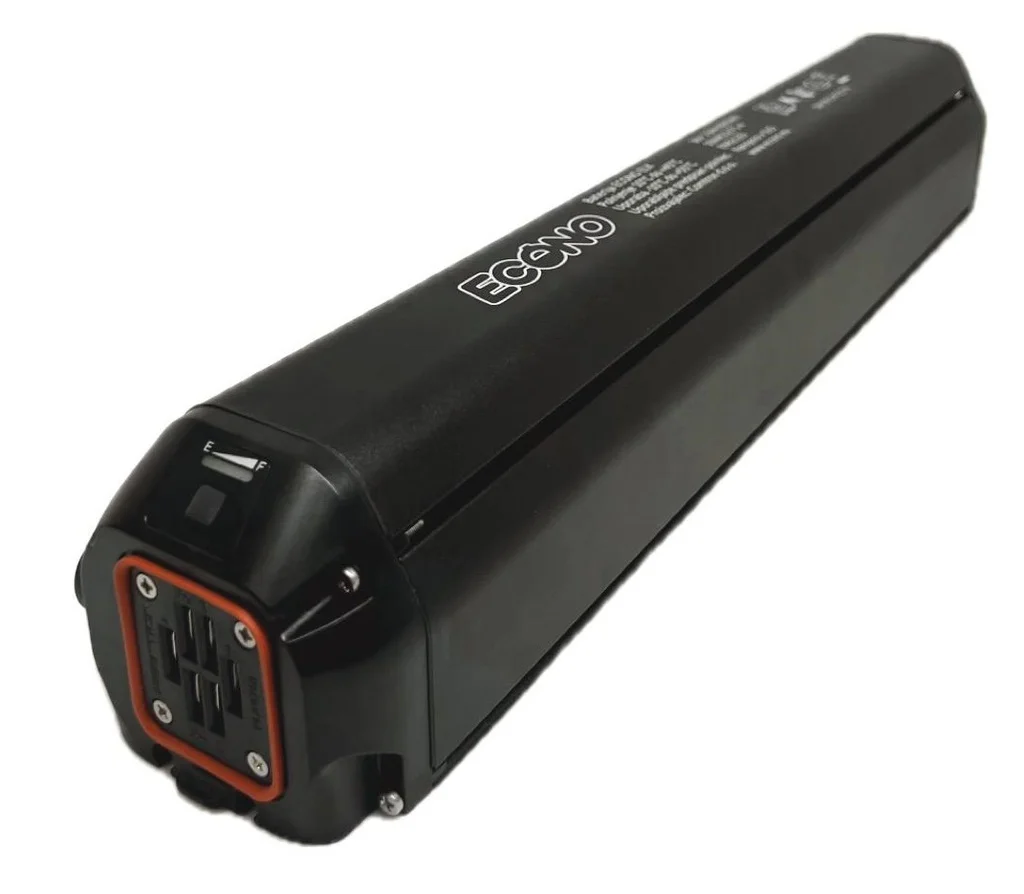

Battery ECONO ELK 800 It is an ECONO electric bike battery, composed in Slovenia. The capacity of 800Wh and 36V voltage is designed by installing it on the lower tube of the wheel frame. In addition to the battery, you also get two keys to lock it in the bike using a built -in lock.
The battery is compatible with ECONO bicycles, model year 2025 and newer. It features a charging port and a battery charge indicator. The 800 Wh (22.2 Ah) capacity provides sufficient energy for both short rides around the city and excursions through the countryside. The battery is compatible exclusively with original 2A or 4A ECONO chargers equipped with a 3-pin connector, ensuring enhanced safety and temperature monitoring during the charging process.
Easy to handle

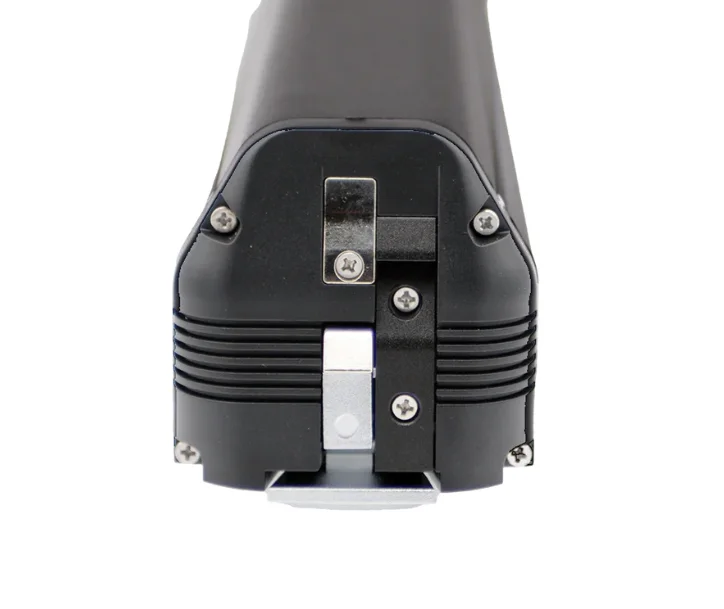

The battery can be locked on a bike with a key. It can be filled on or off the bike. This also comes to us in the winter when we feed it.
Long life span
The Econo Battery Management System (BMS) protects Li-ion cells from use in extreme conditions, such as high temperatures, overvoltage, etc.
Long-Term Charge Retention
Econo rechargeable batteries retain their charge even after long periods of storage, meaning they do not need to be recharged after an extended break, such as over the winter.
No memorial effect
You can charge the ECONO battery at any time, regardless of the current level of charge. Curitions of the charging process do not harm the battery.
The range of batteries
The graph below shows the range of the ECONO ELK 800 e-bike, equipped with a Bafang mid-drive motor, across various assist levels. The data assumes an average speed of 20 km/h, a total mass of 100 kg, and predominantly flat terrain.
Charging time
Our batteries can only be charged with ECONO chargers.
ECONO / 2A 3pin charger
To fill 50%
About 5 hours
To fill 100%
About 12 hours
Charger ECONO / 4a 3pin
To fill 50%
About 2.5 hours
To fill 100%
About 6 hours
For the ECONO bikes
The ECONO ELK 800 battery is compatible with all ECONO bikes year 2025 and newer.
A universal battery for all ECONO bikes allows for easy battery swapping between bikes, as well as the option to purchase an additional battery for more demanding users.
List of compatible bikes:
ECONO PANTERA 2025 and newer.
Econo Gams 2025 and newer.
Econo Mare 2025 and newer.
Econo Apes 2025 and newer.
Specifications
| Capacity | 800Wh (22.2Ah) |
| Nominal voltage | 36v |
| Max. voltage | 42v |
| Min. voltage | 28v |
| Max. the charging current | 4a |
| Charging temperature | from 10 ° C to 45 ° C |
| Discharge temperature | from -20 ° C to 50 ° C |
| DC connection | 3 PIN |
| Technology | Li-ion |
| A brand of cells | Samsung |
| Dimensions | 43cm x 7.5cm x 8cm |
| Weight | 4kg |
| Include | Battery, instructions |
| Certificate | En15194 |
| Guarantee | 12 months |
