About the product

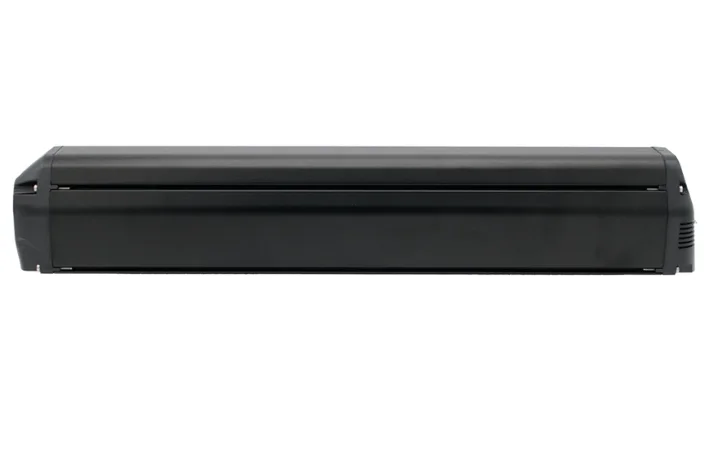

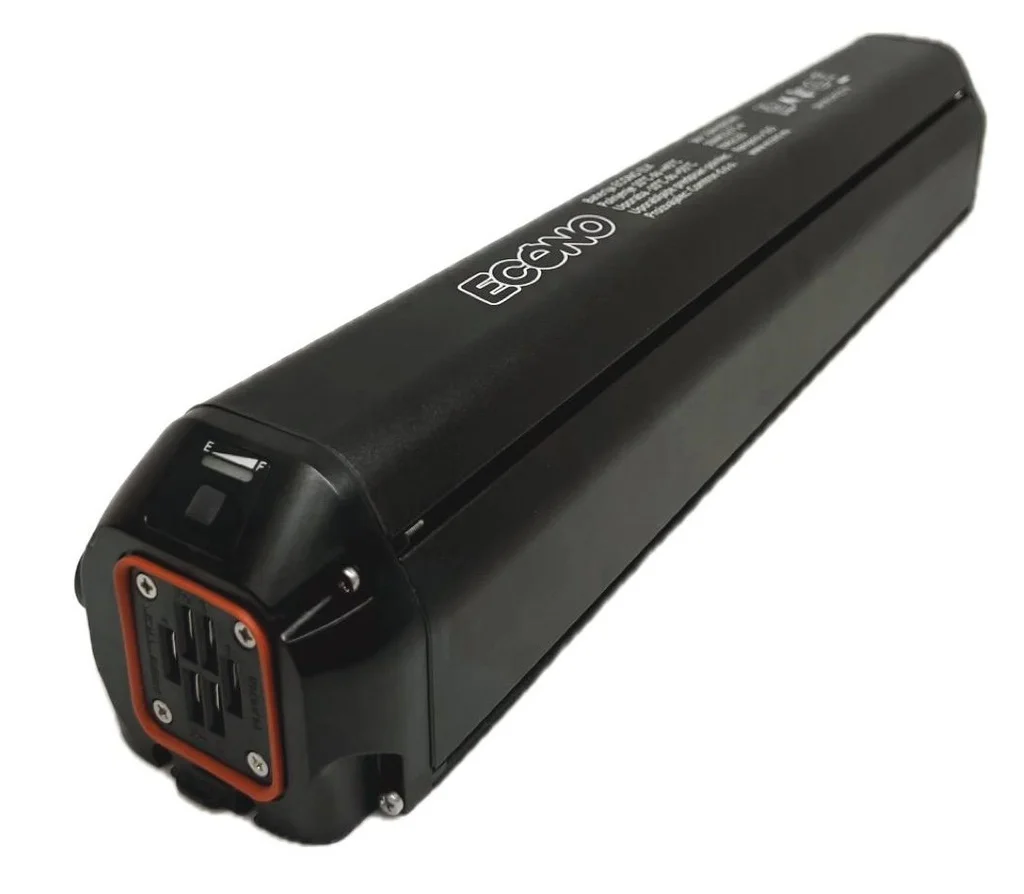

BatteryECONO ELK 520It is an ECONO electric bike battery, composed in Slovenia. The 520Wh and 36V voltage capacity is designed to be placed on the lower tube of the wheel frame.
Baterija je kompatibilna z kolesi ECONO letnik 2025 in novejšimi. Na bateriji se nahajata priključek za polnilec in indikator napolnjenosti baterije. Battery capacity 520Wh (14.5Ah)provides you enough energy for shorter tours around the city as well as for trips around the countryside. Baterija je kompatibilna le z original Econo polnilcem 2A ali 4a s 3pin konektorjem, kar zagotavlja večjo varnost in spremljanje temperature med polnjenjem.
Easy to handle

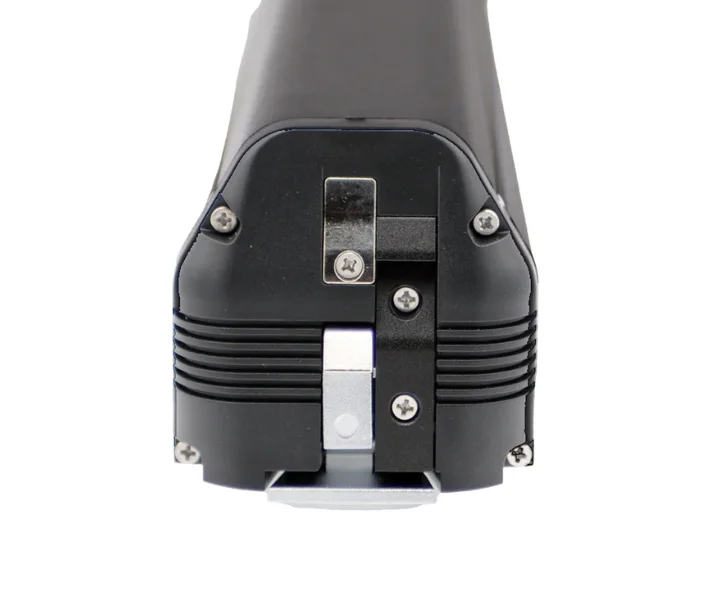

The battery can be locked on a bike with a key. It can be filled on or off the bike. This also comes to us in the winter when we feed it.
Long life span
Econo sistem nadzora baterije (BMS) ščiti li-ion celice pred uporabo v ekstremnih pogojih kot so visoke temperature, prekomerna napetost...
A small rate
Tudi po dolgih obdobjih shranjevanja. To pomeni, da Econo polnilnih baterij po daljšem premoru (po zimi) ni treba polniti.
No memorial effect
You can charge the ECONO battery at any time, regardless of the current level of charge. Curitions of the charging process do not harm the battery.
The range of batteries
The graph below shows the largest range of batteries at ECONO ELK 520 in combination with different help sredinskega motorja BAFANG na Econo kolesih At an average speed of 20km/h, a total mass of 100kg, by mostly flat terrain.
Charging time
Our batteries can only be charged with ECONA chargers.
ECONO / 2A 3pin charger
To fill 50%
About 3.5 hours
To fill 100%
About 8 hours
Filler ECONO / 4a 3pin
To fill 50%
About 2 hours
To fill 100%
About 4 hours
For the ECONO bikes
The ECONO ELK 520 battery is compatible with all ECONO wheels year 2025 and newer.
Univerzalna baterija za vsa ECONO kolesa omogoča enostavno zamenjavo baterij med kolesi, kot tudi odločitev za dodatno baterijo za zahtevnejše uporabnike.
List of compatible bikes:
ECONO PANTERA 2025
Econo Gams 2025
Econo Mare 2025
Econo Apes 2025
Specifications
| Capacity | 520Wh (14.5Ah) |
| Nominal voltage | 36v |
| Max. voltage | 42v |
| Min. voltage | 28v |
| Max. the charging current | 4a |
| Charging temperature | from 10 ° C to 45 ° C |
| Discharge temperature | from -20 ° C to 50 ° C |
| DC connection | 3 PIN |
| Technology | Li-ion |
| A brand of cells | Samsung |
| Dimensions | 43cm x 7.5cm x 8 cm |
| Weight | 3.3 kg |
| Include | Battery, instructions |
| Certificate | Varnostni standard EN 15194 |
| Guarantee | 12 months |
The scope of the package
ECONO ELK 520 battery
1x instructions
