About the product

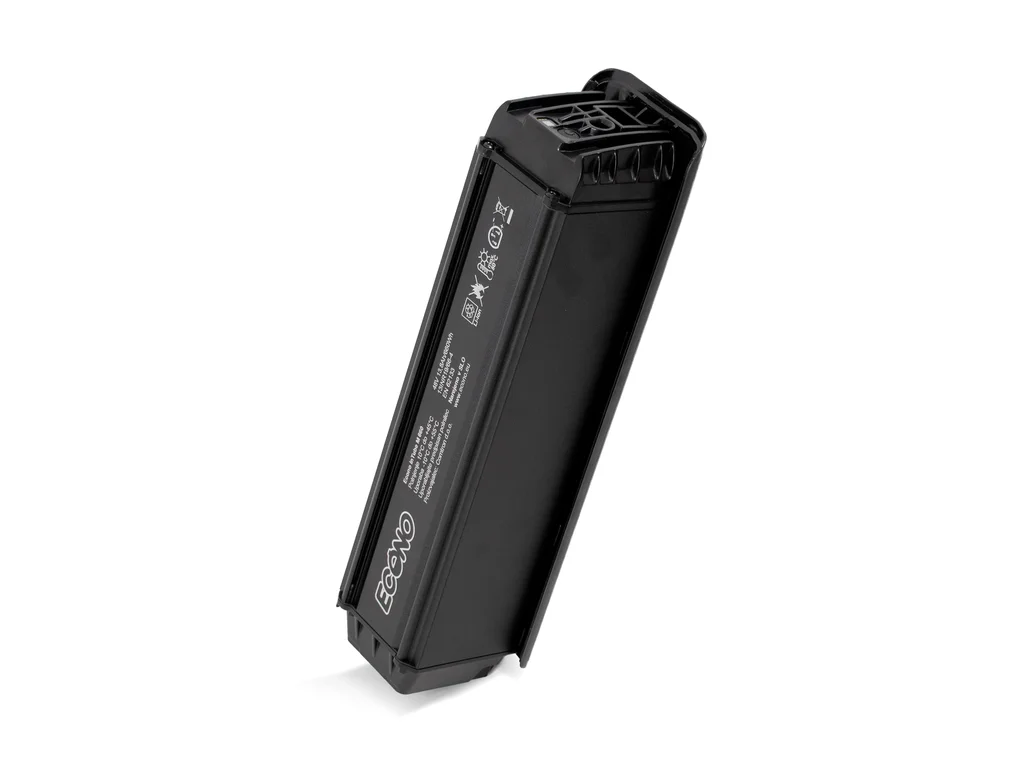

BatteryECONO EQUUS INTUBE L 870 It is an ECONO electric bike battery, made in Slovenia. The capacity of 630Wh and 36V voltage is designed by installing it the lower tube of the bike frame. In addition to the battery, you also get two keys to lock it in the bike using a built -in lock.
The battery is compatible with ECONO Equus bicycles. It features a charging port and a battery charge indicator. A capacity of 630 Wh (17.5 Ah) provides sufficient energy for both short rides around the city and excursions in the countryside. The battery is compatible exclusively with the original Econo 2A or 4A charger (equipped with a 3-pin connector), which ensures enhanced safety and temperature monitoring during the charging process.
Easy to handle
The battery can be locked on a bike with a key. It can be filled on or off the bike.
Long life span
The Econo Battery Management System (BMS) protects Li-ion cells from use in extreme conditions, such as high temperatures, overvoltage, etc.
Long-Term Charge Retention
Econo rechargeable batteries retain their charge even after long periods of storage, meaning they do not need to be recharged after an extended break, such as over the winter.
No memorial effect
You can charge the ECONO battery at any time, regardless of its current charge level. Interrupting the charging process does not damage the battery.
Pictures
The range of batteries
The graph below shows the maximum range of the ECONO EQUUS INTUBE L 630 battery in combination with various mid-mounted motor assist levels, assuming an average speed of 20 km/h, a total mass of 100 kg, and predominantly flat terrain.
Charging time
Our batteries can only be charged with ECONO chargers.
ECONO / 2A 3pin charger
To fill 50%
About 3.5 hours
To fill 100%
About 8 hours
Charger ECONO / 4a 3pin
To fill 50%
About 2 hours
To fill 100%
About 4 hours
Specifications
| Capacity | 630Wh (17.5ah) |
| Nominal voltage | 36v |
| Max. voltage | 42v |
| Min. voltage | 28v |
| Max. the charging current | 4a |
| Charging temperature | from 10 ° C to 45 ° C |
| Discharge temperature | from -20 ° C to 50 ° C |
| DC connection | 3 PIN |
| Technology | Li-ion |
| A brand of cells | Samsung |
| Dimensions | 42.5 x 9 x 8 cm |
| Weight | 3.41 kg |
| Include | Battery, instructions |
| Certificate | En15194 |
| Guarantee | 12 months |
The scope of the package
1x ECONO EQUUS Battery InTube L 630Wh (17.5ah)
1x instructions
