About the product

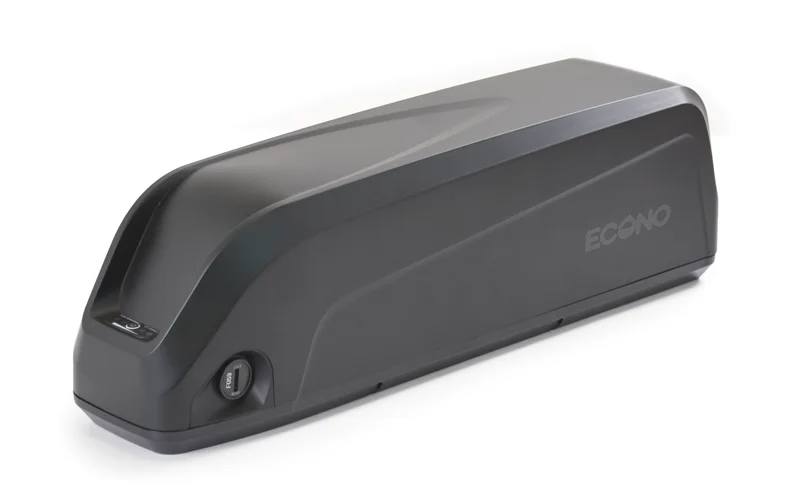

Battery ECONO TUBE M 36V 20AH 720Wh is a battery for an electric bicycle composed in Slovenia. It is designed to place it on the lower tube of the bike frame or on the dedicated carrier. If you place it on the tube, then attach the battery carrier to the bidon mounts. In addition to the battery, you also get two keys to lock it on the bracket using a built -in lock.
The battery is compatible with 36V motors. It features a charging port and a battery charge indicator. A capacity of 20Ah provides sufficient energy for short rides around the city as well as trips through the countryside. The battery is compatible exclusively with an original 2A or 4A ECONO charger equipped with a 3-pin connector, ensuring enhanced safety and temperature monitoring during the charging process.
Easy to handle
The battery can be locked on a bike with a key. It can be filled on or off the bike. This also comes to us in the winter when we feed it.
Long life span
The ECONO battery management system (BMS) protects Li-ion cells from use in extreme conditions, such as high temperatures, overvoltage, etc.
Long-Term Charge Retention
Econo rechargeable batteries retain their charge even after long periods of storage, meaning they do not need to be recharged after an extended break, such as over the winter.
No memorial effect
You can charge the ECONO battery at any time, regardless of the current level of charge. Curitions of the charging process do not harm the battery.
The exceptional efficiency of cells
Samsung cells are excellently balanced in terms of performance and reliability. They are highly stable, even under maximum strain.
universal use
ECONO batteries are compatible with a wide range of motor brands, as well as various motor configurations (mid-mounted, front-mounted, or rear-mounted).
Specifications
| Capacity | 720Wh (20Ah) | ||
| Nominal voltage | 36v | ||
| Max. voltage | 42v | ||
| Min. voltage | 28v | ||
| Max. the charging current | 4a | ||
| Charging temperature | from 10 ° C to 45 ° C | ||
| Discharge temperature | from -20 ° C to 50 ° C | ||
| DC connection | 3 PIN | ||
| Technology | Li-ion | ||
| A brand of cells | Samsung | ||

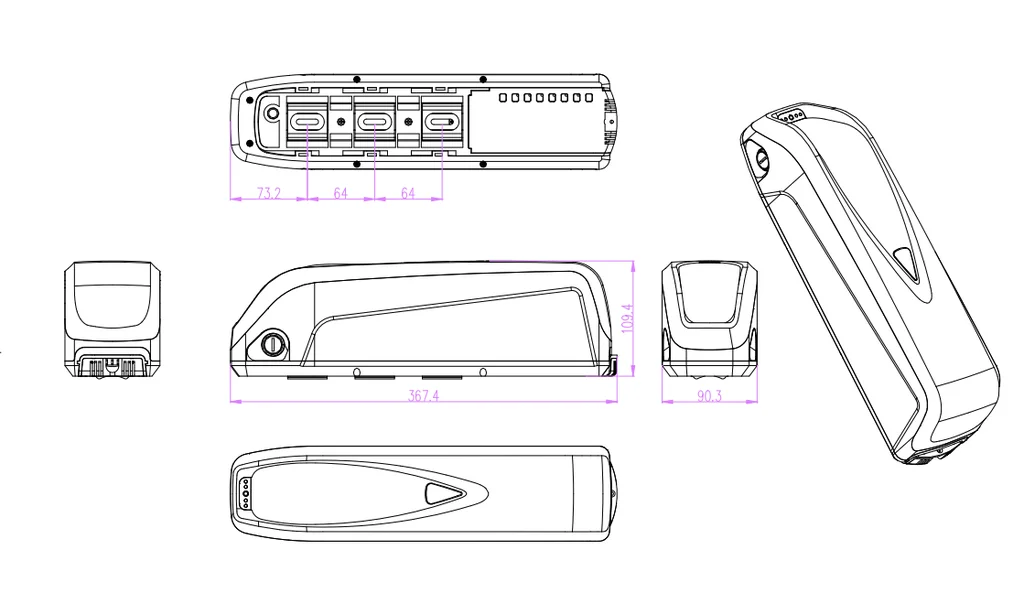

| Dimensions | 367.4 x 109.4 x 90.3 mm | ||
| Weight | approx. 3.85 kg | ||
| Guarantee | 12 months |
The scope of the package
1x ECONO 720Wh batteries (20Ah)
2x key
1x instructions
1x battery -mounted carrier
