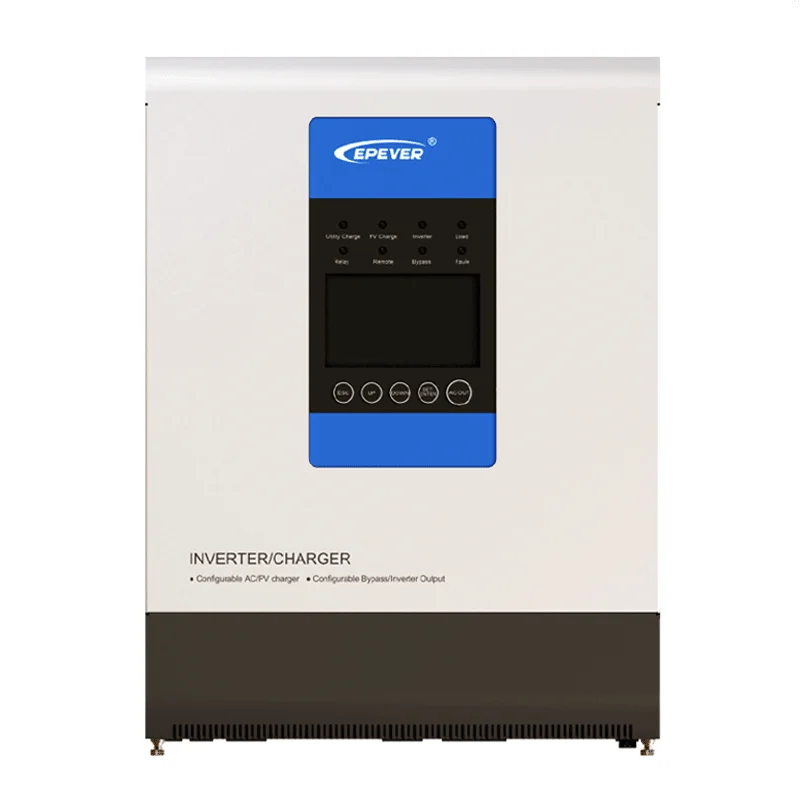

About product
The UPower Inverter Epever series combines solar energy, grid energy and power from a storage system (battery), and converts it into 230V of pure sinus alternator voltages for household use. With the help of multiple core processor and advanced MPPT algorithm, it improves the efficiency of solar cells. The device is most used in places where there are problems with network reliability (or there is it at all), but the area is rich in sun.
Attributes
UPower invertier/ charger combines solar and utility charging and ac output in one unit
Power ratio setting feature solar power for different applications.
Advanced MPPT technology to achieve maximum tracking power and the maximum tracking and conversion efficiency, max. tracking efficiency 99.5%, max. DC-DC conversion efficiency 98.5%.
Advance digital control is used for AC-DC charging modules that have achieved wide input voltage, high efficiency and high power grid stability.
Adoption of advanced SPWM technology, truly pure sinus output with high efficiency up to 95%) and full load efficiency 93% max).
High output voltage stability.
220V / 230V 45%-50%, frequency 50/60s, 0.1 Hz; voltage and frequency optional.
The charging current from solar modules and the charging current from the network/generator can be adjusted manually, but within the limits given in the technical description.
With the function of selecting the ratio filled over the electricity grid ft solar energy and setting the entire charging current.
Four charging modes: priority electricity grid, priority solar energy, electricity grid ft solar energy, solar energy only.
Two output modes: battery Rt electricity grid.
Charging from the network/generator and powering consumers is possible at the same time.
A wide range of options: charging current, battery type, battery voltage, etc.
Supervision AC output to turn the electricity grid or inverter on and off. This reduces self-spending in stand position or enables maintenance and repairs on the narrowing.
Cold start and soft start support

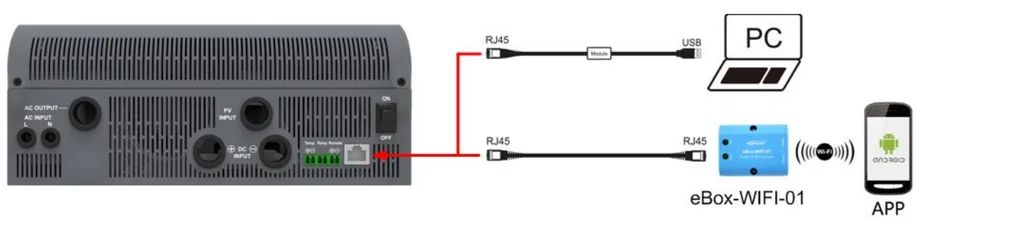

RS485 isolated communication interface with output 5V 200mA, access to communication devices such as WIFI module.
A computer or app mobile phone can be used for remote control.
Selecting a background alert and an audio alert with computer software.
Protection against PV reverse polarity, charging power limitation, short circuit, protection against polarization of the battery.
Protection of AC input/output against excessive voltage, low battery voltage, power limitation, switch protection and short circuit.
With low/surge battery protection and temperature compensation, etc.
With internal protection against excessive temperature and intelligent function of the start-stop fan.
You can select different add-ons according to the user's requirements.
Use
Solar vehicle
Solar Home
Solar boat
Solar generator
Specifications
| MPPT polnjenje | It enables optimal use of solar energy regardless of the conditions |
| Izhodna moč | Constant is 2400W |
| 15 minutes is 3000W | |
| 5 seconds is 4800W | |
| short-term peak power is 6000W | |
| Solar cells | Max installed solar cell power is 1500W |
| Max the voltage of solar cells is 138V at 25°C | |
| Max current filling from solar cells is 60A | |
| Izhodna napetost | Single-phase |
| | Signal is pure sinus |
| | voltage 220V(-5%~+3%) or 230VAC(-10%~+3%) |
| Hranilnik energije - baterija | Rated voltage 24V (21,6 - 32V DC VOLTAGE) |
| | Charging from solar cells: 60A |
| | Charging from network: 30A |
| | There is no capacity limit |
| Basic | Efficiency 95% |
| Dimes 518x315x168mm | |
| Weight 14.9 Kg | |
| IP30 |
Package included
1x inverter up3000-M6322
1x Wall mount
