About product

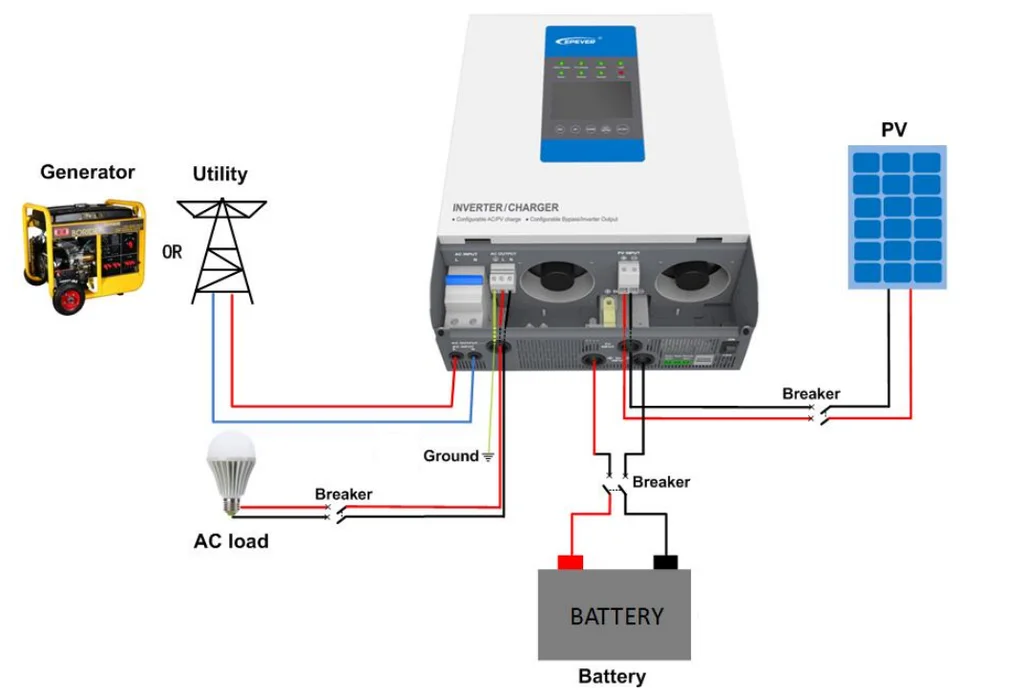

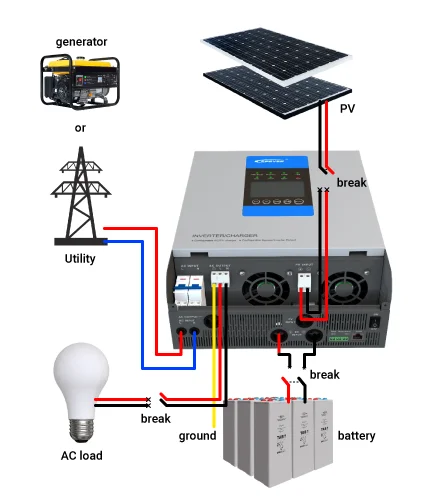

The UPower Inverter Epever series combines solar energy, grid energy and power from a storage system (battery), and converts it into 230V of pure sinus alternator voltages for household use. With the help of multiple core processor and advanced MPPT algorithm, it improves the efficiency of solar cells. The device is most used in places where there are problems with network reliability (or there is no problem at all), but the area is rich in sun.
Elaborate
UPower invertier/ charger combines solar and utility charging and ac output in one unit
Power ratio setting feature 6 solar power for different applications.
Mapred MPPT technology to achieve maximum tracking power and maximum tracking and conversion efficiency, max. tracking efficiency 99.5%, max. DC-DC conversion efficiency 98.5%.
Advanced digital control is used for AC-DC charging modules that have achieved wide input voltage, high efficiency and high power grid stability.
Adoption of advanced SPWM technology, truly pure sinus output with high efficiency up to 95%D) and full load efficiency 93% max).
High output voltage stability.
220V / 230V 4 5% 50, frequency 50/60 s 0.1 Hz; voltage and frequency optional.
The charging flow from solar modules and the charging flow from the network/generator can be adjusted manually, but within the limits given in the technical description.
With the function of selecting the ratio filled over the electricity grid ft solar energy and setting the entire charging current.
Four charging modes: priority electricity grid, priority solar energy, electricity grid ft solar energy, solar energy only.
Two output modes: battery Rt mains.
Charging from the network/generator and powering consumers is possible at the same time.
A wide range of options: charging current, battery type, battery voltage, etc.
Madzor AC output to turn the mains or inverter on and off. This reduces self-spending in stand by position or enables maintenance and repairs on the narrowing.
Cold start and soft start support.

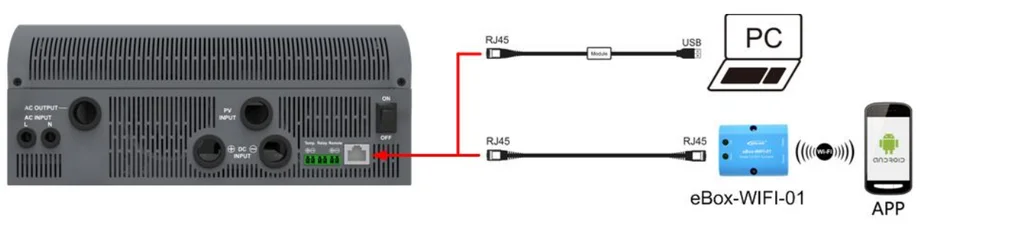

RS485 isolated communication interface with output 5V 200mA, access to communication devices such as WIFI module.
A computer or app mobile phone can be used for remote control.
Selecting a background alert and an audio alert with computer software.
Protection against PV reverse polarity, charging power limitation, short circuit, protection against polarization of the battery.
Protection of AC input/output against excessive voltage, low battery voltage, power limitation, switch protection and short circuit.
With low/surge battery protection and temperature compensation, etc.
With internal protection against excessive temperature and intelligent function of the start-stop fan.
You can select different add-ons according to the user's requirements.
Specifications
|
MPPT charging
|
It enables optimal use of solar energy regardless of the |
|
Solar cells
|
Max installed solar cell power is 5000W |
| Max the voltage of solar cells is 180V at 25°C | |
| Max current filling from solar cells is 80A | |
| Energy storage room - battery | Rated voltage 48V (43,2 - 64V ONE VOLTAGE) |
| Filling from solar cells: 80A | |
|
|
Charging from network: 30A |
|
|
There is no capacity limit |
|
Power output
|
Constant is 4000W |
|
|
15 minutes is 5000W |
|
|
5 seconds is 8000W |
|
|
short-term peak power is 10000W |
|
Output voltage
|
Single-phase, Signal is pure sinus |
| voltage 220V(-5%~+3%) or 230VAC(-10%~+3%) | |
|
Basic
|
Efficiency 95% |
| Dimes 605x315x178mm |
|
| Weight 17.5 Kg |
|
| IP30 |
Package included
1x inverter up5000-M8342
