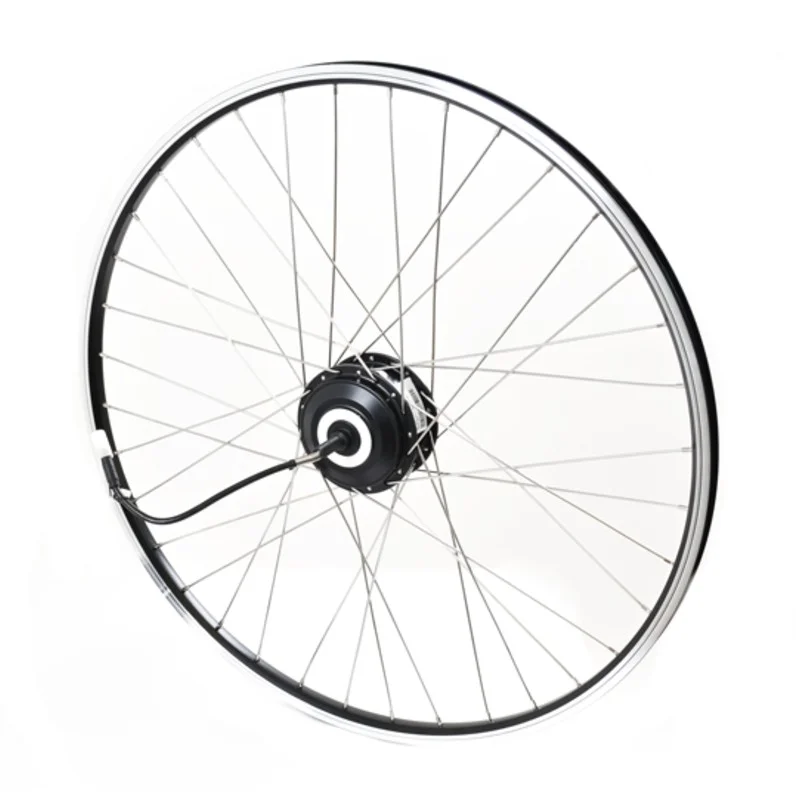

Front motor with ring disc/ V-brake 28"
It is ready for easy upgrade of the ordinary bicycle to the e-bike. The wheel size is 28'' on the wheel it is possible to install disc brakes or ordinary V-brakes. The Motor also requires a controller, a screen, and a battery.

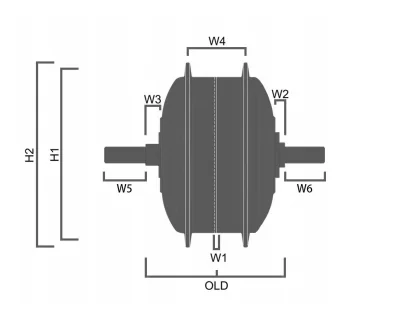

| Motor dimension H1 | 109mm |
| Motor dimension H2 | 120mm |
| Motor dimension W1 | 4.7mm |
| Motor dimension W2 | 8.5mm |
| Motor dimension W3 | 10.5mm |
| Motor dimension W4 | 42mm |
| Motor dimension W5 | 25 |
| Motor dimension W6 | 25 |
| Motor DIMENSION OLD | 100mm |
| Rated voltage | 36 in |
| Rated power | 250W |
| Wheel size | 28 '' |
| Max. moment | 50nm |
| Velocity | 25km/h |
| Motor weight | 2.0kg |
| IP protection | 65 |
| Efficiency | ≥80 |
| Operating temperature range | -20 to 45°C |
