About product

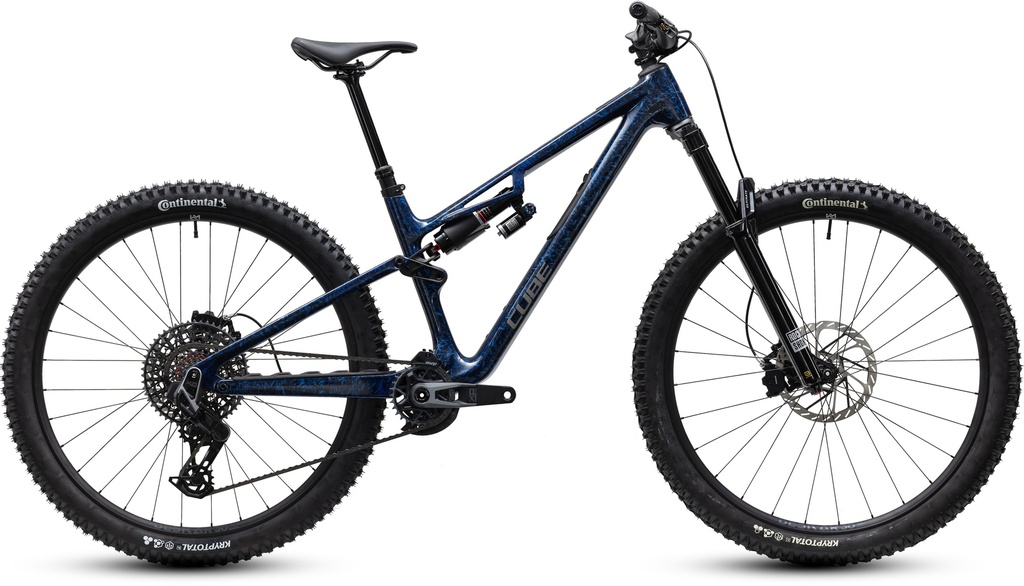

Cube Stereo C:62 SUPER TM splintercobalt´n´chrome
A truly great trail bike requires many things, and an attractive frame with top-notch performance is certainly one of them—which is why the Stereo HPC TM has a strong starting point. But CUBE didn’t stop there. Every bike in CUBE’s Trail Motion series has to live up to its promises, which is why CUBE chose RockShox Lyrik Ultimate forks and a RockShox Vivid Ultimate shock. With 145 mm of rear travel and 150 mm of front travel, they ensure that the tires—in this case, 2.5-inch Conti Kryptotal tires on Newmen Beskar 30 rims—stay on the ground and roll smoothly. Sram Maven Silver hydraulic brake pads give you complete control, while Sram’s Eagle X0 AXS 1x12 drivetrain transfers your power to the trail. With a remote-controlled dropper seatpost for better control on challenging trails, this bike is ready for anything.
Highlights:
Carbon frame and aluminium rear triangle, UDH derailleur hanger, head tube angle adjustment and internal cable routing (ICR)
RockShox Lyrik Ultimate LinearXL suspension fork, Charger 3.2 RC2 with 150 mm of travel

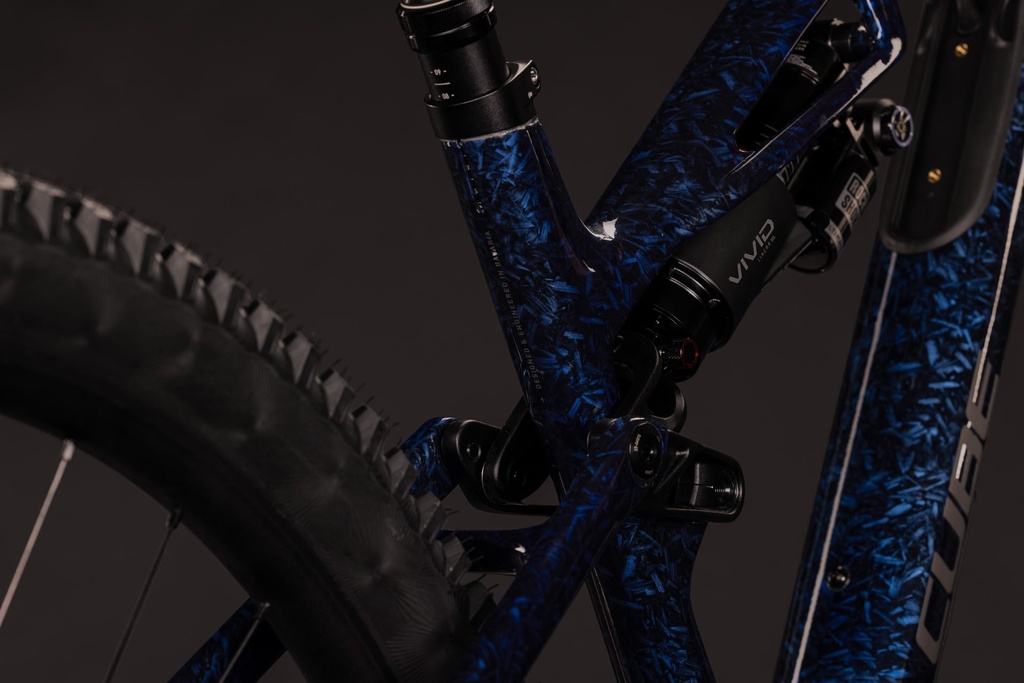

Amortizer RockShox Vivid Ultimate LinearXL
Sram X0 Eagle AXS™ Transmission with a 1x12-speed gear ratio
Hydraulic SRAM Maven Base 4-piston disc brakes with 200 mm rotors
Newmen Beskar 30 base/strong tubeless-ready wheelset
Manufacturer's part number: 1172700
Model year: 2027
Specifications
| Frame | C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, ISCG 05, UDH™ |
| Frame material | Carbon |
| Wheel size | 29'' |
| Speeds | 1 x 12 |
| Fork | RockShox Lyrik Ultimate LinearXL, Charger 3.2 RC2, Adj. Bottom Out, 15x110mm Boost, 150mm |
| Rear Shock | RockShox Vivid Ultimate LinearXL, 210x55mm, RC2T Adj. Bottom Out |
| Travel | 150 mm / 150 mm |
| Brakes | Sram Maven Silve, Hydr. Disc Brake (200/200) |
| Brake discs | 200/200 mm |
| Headset | ACROS AZF-1034, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), X-Connect Interface |
| Stem | Newmen Evolution 318.4, 31.8mm |
| Handlebar | Newmen Beskar 318.40, 800mm |
| Grip | ACID Endure |
| Saddle | ACID Venec |
| Seatpost | CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm |
| Crankset | Sram X0 Eagle™ Transmission DUB, 30T |
| Rear derailleur | Sram X0 Eagle AXS™ Transmission, 12-Speed |
| Gear shifters | Sram AXS™ Pod Controller |
| Chain guide | MRP AMg CS |
| Cassette | Sram XS-1270, 10-52T |
| Chain | Sram X0 Eagle™ Transmission |
| Front tyre | Conti Kryptotal Front, Enduro SuperSoft, Tubeless Ready, 2.4 |
| Rear tyre | Conti Kryptotal Rear, Downhill Soft, Tubeless Ready, 2.4 |
| Wheelset | Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Maximum total weight allowed | 160 kg (tbody weight + bike + equipment) |
| Weight | Začne pri 14,9 kg |
Video
From 0:15:28 to 0:21:15 Stereo
Technology
Advanced internal cable routing
Gear and brake cables run entirely through the frame—without any additional holes near the headset. Bikes with cable routing through the headset have a clean, elegant look with no unnecessary visual distractions.
Semi-integrated seatpost clamp
The discreet Semi Integrated Seatpost Clamp blends seamlessly with the frame’s design, providing a clean look and reducing the chance of snagging the bike when carrying it.
Boost148
A wider hub means a stiffer and stronger wheel, resulting in better handling. The Boost148 standard allows for greater flange spacing, improving wheel performance without affecting shifting or drivetrain efficiency.
Agile Trail Geometry
Agile Trail geometry is designed for riders who enjoy pushing their limits. A lower frame height and more room for movement provide freedom on the trails and reward bolder line choices.
Universal Derailleur Hanger (UDH)
The Universal Derailleur Hanger provides a standardized solution compatible with all drivetrains. It reduces the risk of chain jams, improves shifting performance, and is widely available as a replacement part.
Adjustable headset angle
With the Adjustable Headset Angle, you can fine-tune the bike’s geometry—slacker for more stability on descents or steeper for increased agility on technical sections.
Aluminium Superlite
CUBE's Superlite aluminum is made from heat-treated 6061 aluminum, which has properties—high fatigue resistance, good stiffness, low weight, and excellent strength—that are important for a bicycle frame. We then process it into double-butted tubes to reduce weight without sacrificing strength. The result? Extremely lightweight, strong, and durable frames.
Downtube Storage
CUBE’s Downtube Storage is simply perfect for safely carrying your bits and bobs – a fully integrated, enclosed compartment with a weatherproof cover and easy access. It’s big enough for your rain jacket, for example – or a few snacks. So handy!
Size chart
Choosing the correct frame is key to a comfortable and safe ride. Based on your height and inseam length, our frame size calculator helps you find the ideal size for optimal comfort, control, and riding efficiency.
