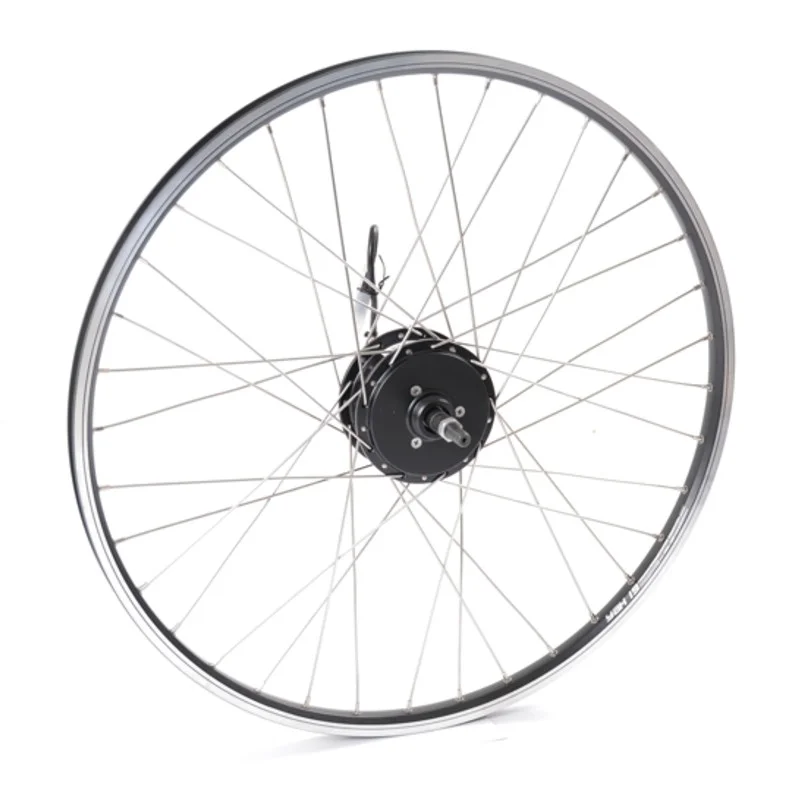

Rear motor with ring disc/ V-brake 26" THREAD
It is ready for easy upgrade of the ordinary bicycle to the e-bike. The wheel size is 26' on the wheel it is possible to install disc brakes or ordinary V-brakes. The Motor also requires a controller, a screen, and a battery.

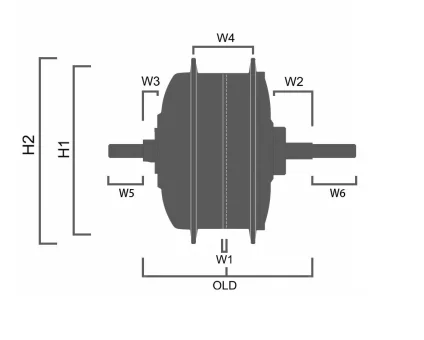

| Motor dimension H1 | 109mm |
| Motor dimension H2 | 120mm |
| Motor dimension W1 | 8mm |
| Motor dimension W2 | 39,8mm |
| Motor dimension W3 | 15,5mm |
| Motor dimension W4 | 47mm |
| Motor dimension W5 | 25 |
| Motor dimension W6 | 27.5 |
| Motor DIMENSION OLD | 138,5mm |
| Rated voltage | 36V |
| Rated power | 250W |
| Wheel size | 26 '' |
| Max. moment | 50Nm |
| Speed | 25km/h |
| Motor weight | 2,1kg |
| IP protection | 65 |
| Efficiency | ≥80 |
| Operating temperature range | from -20 to 45°C |
