Battery variants and production
Baterijo SYR GEMINI lahko izdelamo v različnih konfiguracijah, po željah naročnika. Izbirate lahko med kapacitetami spodaj ali pa po dogovoru.
36V 20Ah 720 Wh- 10S4p, 5000mAh Samsung cells, LG
48V 15Ah 720Wh- 13s3p, 5000mAh cells LG
Custom ...
Are you a manufacturer or do you need batteries in different quantities? We make high quality custom batteries tailored to your requirements. Whether you need a smaller series or larger production, we offer you the right solution.

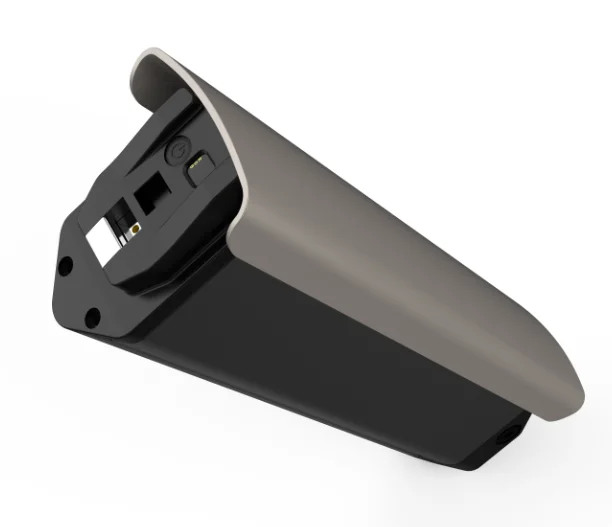

Case specifications
| The name of the producer | Syr |
| Model | Gemini |

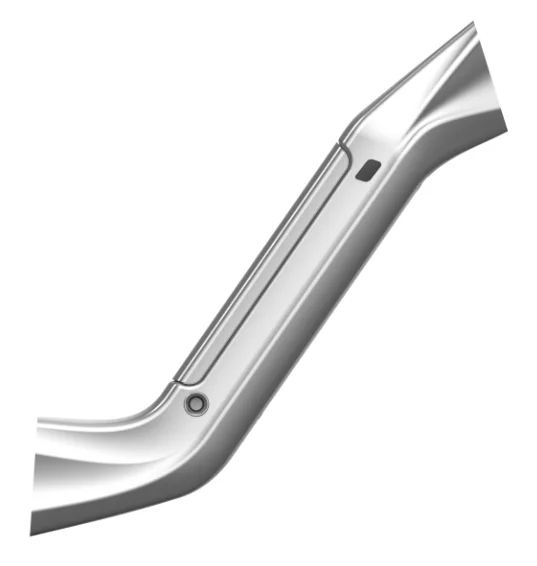

| Placement on a bike | Intube (built in frame) |

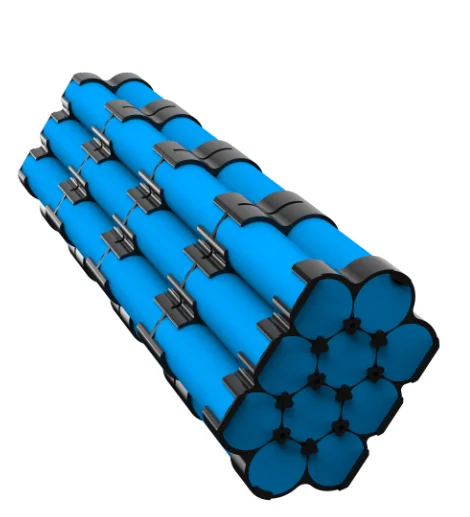

| No. cells | 40, type 21700 |
| Weight | Depending on the configuration |
| Configuration | 10S3P, 10S4P, 13S3P |
| Capacity | From 540Wh to 720Wh |
| Lock | On the frame |
| Connector | Dc 2.1, 3pin, 4pin |
| Dimensions | 36 x 11 x 8.5 cm |
| The maximum output current | 20a |
| BMS | Smart |
| Communication | Can |
| Oem | Over 100 pcs |
| IP protection | Ipx5 |
| Charging indicator | 1 LED, 3 colors |
| Izhodni Connector | 6-pin |
| Standards | UN38.3, EN50604 |
BMS specifications
| Ordinary BMS | Smart BMS | |
| Nominal voltage | 36V/48V | 36v |
| Series configuration | 10s, 13s | 10s |
| Min. voltage | 2.8V/ Cell | 2.8V/ Cell |
| Max. charging current | 4a | 4a |
| Max. discharge current | 20a | 20a |
| Balancing cells | Yes | Yes |
| Cut-off temperature | 65 ° C | Custom -made |
| Basic protection | Yes | Yes |
| A separate output for charger | Not | Yes |
| Can Communications | Not | Yes |
| Smart charger | Not | Yes |
| Diagnostics | Not | Yes |
