About the product

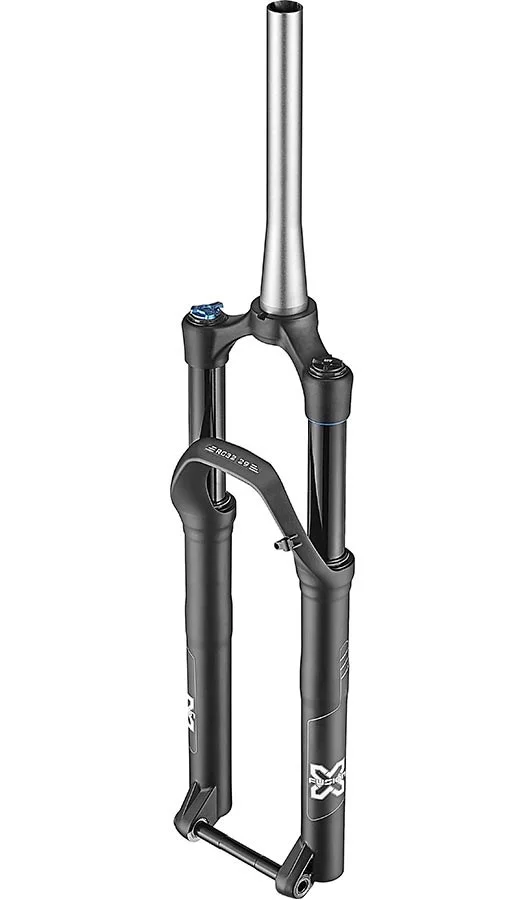

X-Fusion RC32 RL Boost Suspension Fork 27.5'' 130mm
The X-Fusion RC32 Boost is an air-sprung suspension fork designed for XC and trail riding. Its 32 mm aluminum stanchions provide stiffness and control, while the RC cartridge damper offers low-speed compression adjustment and near-lockout functionality. The air spring, rebound and compression adjustments allow riders to fine-tune suspension performance. Travel can be configured to 80, 100, 120 or 130 mm.
Technical specifications
Type: Suspension fork
Model: X-Fusion RC32 RL Boost
Intended use: XC / Trail
Wheel size: 27.5''
Travel: 130 mm (adjustable to 80 / 100 / 120 / 130 mm)
Stanchion diameter: 32 mm
Stanchion material: Aluminum
Spring type: Air
Damper: RC cartridge
Adjustments: Compression, rebound and air pressure
Lockout: Near-lockout
Remote lockout: Compatible with an optional remote lever
Steerer tube: Tapered
Axle standard: 15 × 110 mm Boost, bolt-on
Offset: 46 mm
Maximum brake rotor size: 180 mm
Weight: 1,905 g
Part number: 22-XFRCBRC-130-603
