About product

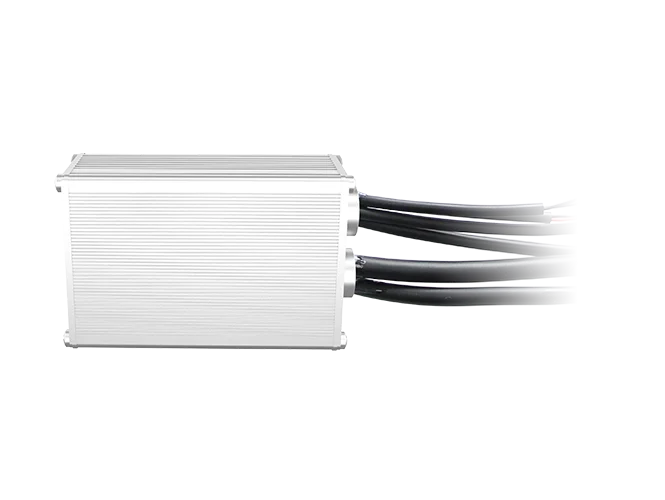

Bafang H305 Controller – 26", 36V, 250W, 15A
The Bafang H305 controller is designed for 26" e-bike systems and manages the motor's electrical operation. Operating at 36V with a rated power of 250W and a maximum current of 15A, it supports speed sensor functionality and 12V lighting.
Technical specifications
Brand: Bafang
Controller model: H305
Wheel size: 26"
Voltage: 36V
Rated power: 250W
Maximum current: 15A
Speed sensor: Supported
Lighting output: 12V / 6W
Compatible display: CR A101.C 1.1
Specifications
| Rated voltage | 36V |
| Length x Width x Height | 80mm x 54mm x 29mm |
| Power | 250W |
| Maximum current | 15A |
| The temperature should be | from -20°C to 45°C |
| Compatible Motor | brushless DC motor |
| IP protection | 65 |
