About product

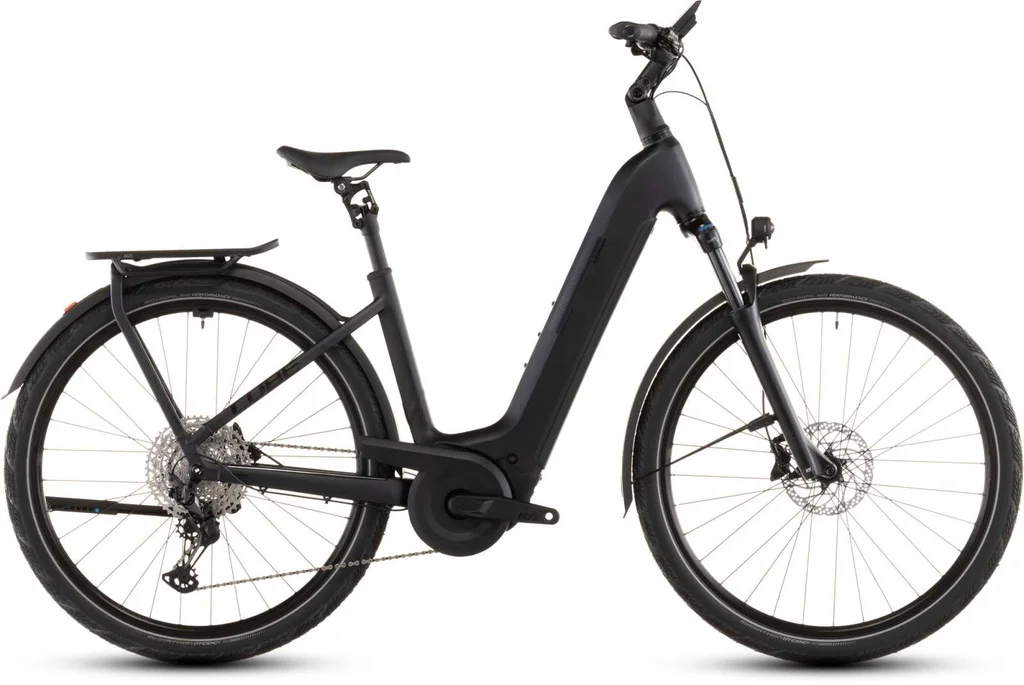

Cube Kathmandu Hybrid Pro 800 coal´n´black Easy Entry
The Kathmandu Hybrid Pro means maximum freedom on two wheels, which is why it has a powerful Bosch motor! It also features an exceptionally elegant, stable IC 3.0 integrated luggage rack with room for everything you need on a journey. The Bosch CX drive and 800 Wh PowerTube battery are integrated so neatly into the frame that you barely notice them. Their powerful assistance, however, is unmistakable. The wide-ranging 12-speed Shimano XT drivetrain shifts precisely between gears. Powerful Shimano 4-piston hydraulic disc brakes operate just as precisely, reliably slowing and stopping the bicycle. An extensive range of accessories, including an exceptionally comfortable parallelogram seatpost, completes the package. Where will your next adventure take you?
The complete equipment package – mudguards, lights, ACID SIC 2.0 luggage rack, and kickstand – means the bike is ready both for everyday errands and for longer tours.
Highlights:
Elegant aluminum frame with internal cable routing, UDH derailleur hanger, designed for a maximum system weight of 140 kg.
Powerful Bosch CX motor for ultimate riding fun and thrust on the mountain
Bosch PowerTube 800 Wh battery for long range.
Bosch Kiox 500 display for clear and intuitive e-bike control.
SR Suntour NX1-32 LO Air suspension fork with 100 mm travel.
The Shimano XT 12-speed gear system ensures lightning-fast and precise gear changes
Hydraulic 4-piston disc brakes from Shimano for precise safety
A versatile, almost indestructible UDH mount integrated into the frame
Elegantly integrated IC 3.0 pannier rack - stylish and practical for all adventures
The low CUBE Kathmandu Hybrid frame lives up to its name, making mounting and dismounting exceptionally easy so you can head straight out on an adventure! But that is not all: the Bosch CX motor and 800 Wh PowerTube battery are neatly integrated into the design, while our Efficient Comfort Geometry works with the 100 mm suspension fork to optimise control, especially in demanding conditions. Internal cable routing enhances the clean appearance. What else? A versatile, almost indestructible UDH for easy replacement-part availability, an integrated chain guard and our stable, robust and attractive IC 3.0 integrated luggage rack, with room for everything you need on a journey.
Manufacturer's code: 112202
EAN: 4054571496843
Model year: 2026
Specifications
| Frame | Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, UDH™, Fully Integrated Battery, IC 3.0, Advanced Internal Cable Routing, Integrated Seatclamp |
| Frame material | aluminium |
| Wheel size | 28" |
| Speeds | 1 x 12 |
| Fork | SR Suntour NX1-32 LO Air, Tapered, 15x110mm, 100mm |
| Travel | 100 mm |
| Brakes | Shimano BR-MT420, Hydr. Disc Brake |
| Brake discs | 180/180 mm |
| Headset | ACROS AZF-1035, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), HIC |
| Stem | CUBE Comfort Stem Pro, 31.8mm, Adjustable |
| Handlebar | CUBE Comfort Trail Bar, 700mm |
| Grips | ACID Travel Comfort |
| Saddle | ACID Sequence 180 |
| Seatpost | SR Suntour NVX, 31.6mm |
| Crankset | ACID MTB Hybrid Pro, 40T |
| Rear derailleur | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
| Gear shifters | Shimano Deore SL-M6100-IR, Direct Attach |
| Chain guard | Yes |
| Cassette | Shimano Deore CS-M6100, 10-51T |
| Chain | KMC e12 |
| Tyres | Schwalbe Marathon Efficiency, PerfL, 55-622 |
| Wheelset | ACID SLX 25, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Display | Bosch LED Remote, Bosch Kiox 500 |
| Battery | Bosch PowerTube 800 |
| Charger | Bosch 2A |
| Motor | Bosch Drive Unit Performance Line CX max.100 Nm Gen.5, (BDU38), Smart System |
| Front light | ACID Front Light PRO-E 150 X-Connect, 12V, DC |
| Rear light | ACID Mudguard Rear Light PRO-E, 12V, DC |
| Luggage rack | ACID Integrated Carrier 3.0, CUBE Adapter Compatible |
| Pedals | ACID PP MTB |
| Other details | mud guard, stand, bell |
| Maximum total weight allowed | 140 kg (weight of cyclist + bike + equipment) |
| Weight | 29,9 kg |
Video
From 00:36:05 To 00:37:12 is Kathmandu Hybrid
Size chart
Choosing the correct frame is key to comfortable, safe riding. Based on your height and inseam length our frame size calculator helps you choose the ideal size for optimal comfort, control and riding efficiency.
