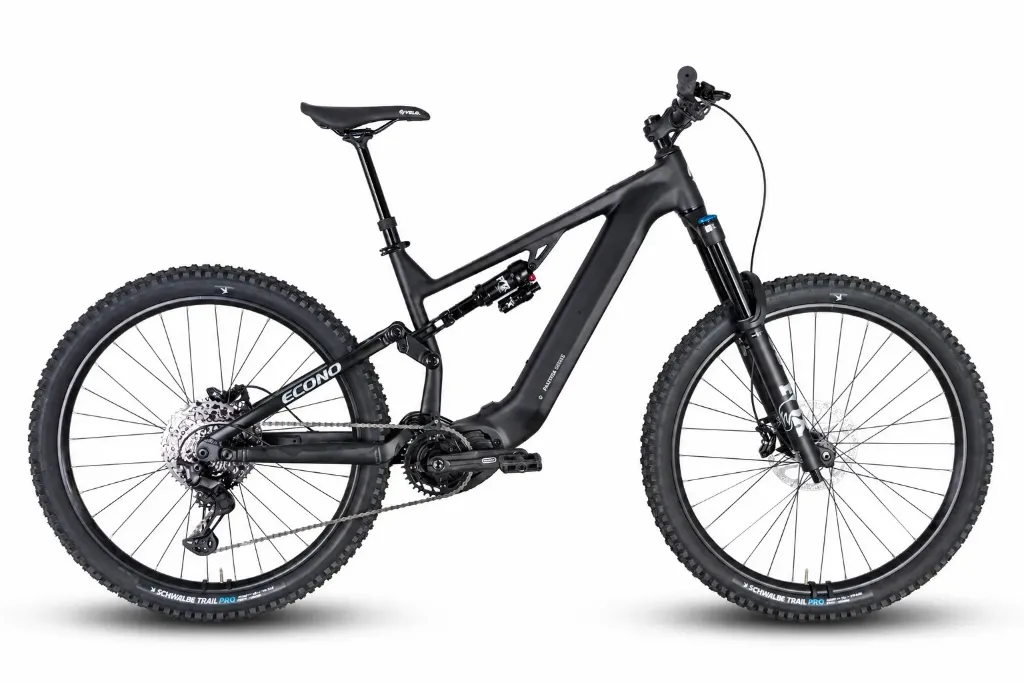

ECONO Pantera 29 C9 160
Meet the ECONO Pantera 29 C8 140, Model 2027, a full-suspension electric mountain bike designed for aggressive trail riding, technical singletracks, steep descents, and challenging off-road terrain. With its trail-focused geometry and capable components, it is built for riders who want greater control, stability, and confidence on demanding mountain trails.
Powered by the Bafang M510 mid-drive motor with 250 W and 110 Nm of torque, it delivers powerful assistance on steep climbs and technical sections. The X-Fusion Trace front fork and X-Fusion O2 Pro rear shock, both designed for trail riding with 140 mm of suspension travel, help absorb impacts and maintain traction on rough terrain.
The bike features TRP HD-807 Slate EVO hydraulic disc brakes with 200 mm front and 180 mm rear rotors for reliable braking control on steep descents. The Shimano Deore XT drivetrain provides precise and dependable shifting, while the X-Fusion Manic LC dropper seatpost allows quick saddle-height adjustment for improved control on technical trails.
The Discovery tubeless-ready wheelset is designed for demanding off-road riding and allows the use of a tubeless tyre setup with compatible tyres and components.
Combining a powerful motor, capable suspension, dependable braking, and trail-oriented components, the ECONO Pantera 29 C8 140 is an excellent choice for riders looking for a more aggressive full-suspension e-MTB built to tackle challenging trails and demanding terrain.
Key features
Bafang M510 motor
250W 36V 110Nm
Comtron battery ELK
Interchangeable battery compatible with all models
Clean, simple controls
Compact colorful display with Bluetooth
Shimano drivetrain
Shimano 11-speed drivetrain with 11-50T cassette
TRP hydr. brakes
Tektro 4-piston hydraulic disc brakes
Schwalbe tyres
Reliable tyres 29x2.50
Air suspension
X-Fusion Trace & O2 PRO
Dropper seatpost
X-Fusion Manic LC
Specification
Product information
Size
M (for height: 160 - 170cm, L (for height: 170cm - 180cm) XL (for height: 180cm - 195cm)
Colors
Matt grey
Wheel size
29''
Speeds
1x11
Max. weight
150kg (body weight + bike + equipment)
Warranty
3 years frame / 2 years motor, battery / 1 year on components that are not consumables (consumables include tires, inner tubes, chains, sprockets, brake pads, discs, cables, and wires)
Frame
Frame
ECONO Pantera 29-ALU6061-GEN.1.3. 2027
Fork
X-Fusion Trace 36 RL 140mm
Shock
X-Fusion O2 Pro RL 190x40mm
Motor system
Motor
Bafang M510 36V 250W 110Nm
Battery
Comtron ELK 600/800Wh smart / Range autonomy: click here and calculate your range
Charger
Comtron 2A 4pin CAN

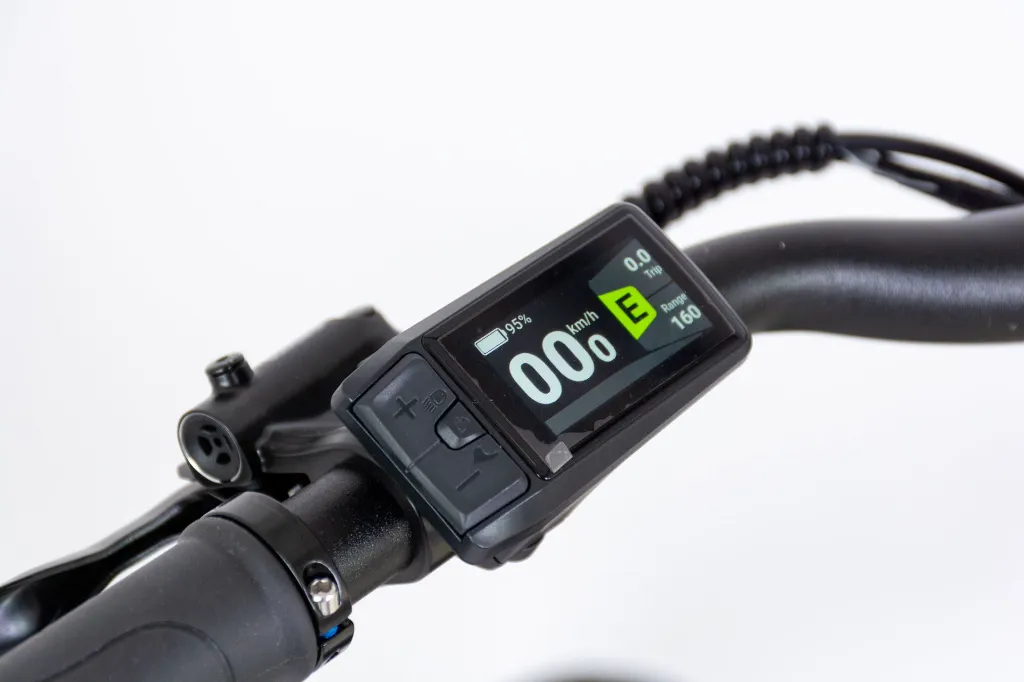

Display
Bafang DP C080 CAN Bluetooth
Controller
-
Senzor
-
Main front cable
-
Transmission & Brakes
Rear Derailleur
Shimano DEORE XT RD-M8130 SGS 11s
Cassette
KMC xGlide 11s 11-50T
Shifter
Shimano DEORE XT SL-M8130 11s shift lever right
Chain
KMC E11 EPT eTurbo 11s 124l
Chainwheel
Bafang M510 36T CW G522.1A CL53mm
Cranks
Bafang M510 165mm (L+R)
Bottom bracket
Brakes
TRP HD-807 Slate EVO
Brake rotors
200/200mm 6-bolts T:2.3mm
Wheels
Front hub
Novatech 15X110mm
Rear hub
Novatech 12X148mm
Front rim
Discovery tubeless ready 622x30C H:20 14G/32H/6-bolt disk
Rear rim
Discovery tubeless ready 622x30C H:20 14G/32H/6-bolt disk
Tires
Schwalbe SMART SAM 29x2.35 60-622 K-Guard HS624
Cockpit
Handlebar
ECONO MTB BB:31.8 W:780mm BS:7° R:25mm
Stem
ECONO ahead BB: 31,8 R:+-7° E:60mm
Headset
Neco H322MP-156SB integrated cables 130° lock
Grips
ECONO DGT-2104/B flat black

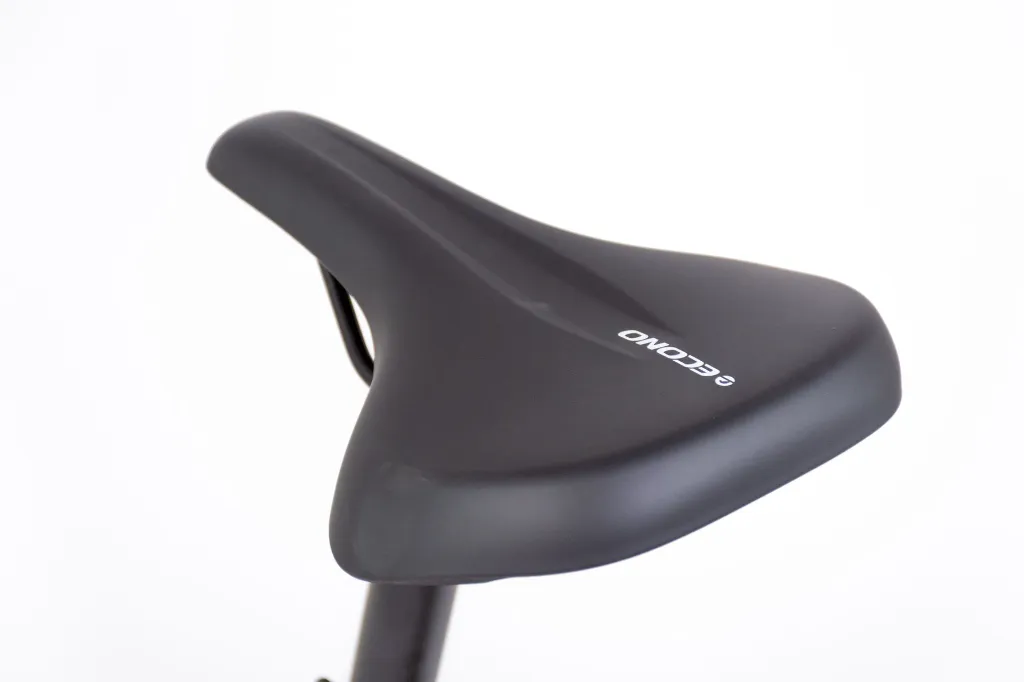

Saddle
ECONO MTB TTZ504
Seat post
X-Fusion Manic LC 30.9 M 125/L 150/XL 170
Seat clamp
Clamp 34.9
Equipment
Front light
-
Rear light
-
Bell
-
Kickstand
-
Chainguard
-
Mudguards
-
Carrier
-
Pedales
Included
Geometry
Geometry | Value (mm) |
Seat tube | 435 |
Top tube horizontal | 600 |
Reach | 424 |
Stack | 575 |
Head tube | 170 |
Head tube angle | 69° |
Seat tube angle | 69°10' |
Chainstay | 431 |
Wheelbase | 1129 |
BB height to hub | 64 |
Alternative Products
These other products might interest you
Attributes
| Bike | |
|---|---|
| Size | M | L | XL |
| Sitting position | Sporty |
| Frame type | Full suspension |
| Wheel size | 29 ” |
| Speeds | 11 gears |
| Suspension | Front and rear suspension |
| Bike speciality | Suspension seat post |
| E-bike | |
|---|---|
| Battery | 600Wh (16.5Ah) | 800Wh (23Ah) |
| Motor position | Center (middle) |
| Motor | Bafang M510 |
| Torque | 110Nm |
| Display | Bafang DP C080 |
| Others | |
|---|---|
| Brand | ECONO |
| Model year | 2027 |
| ECONO series | Pantera |
