About product

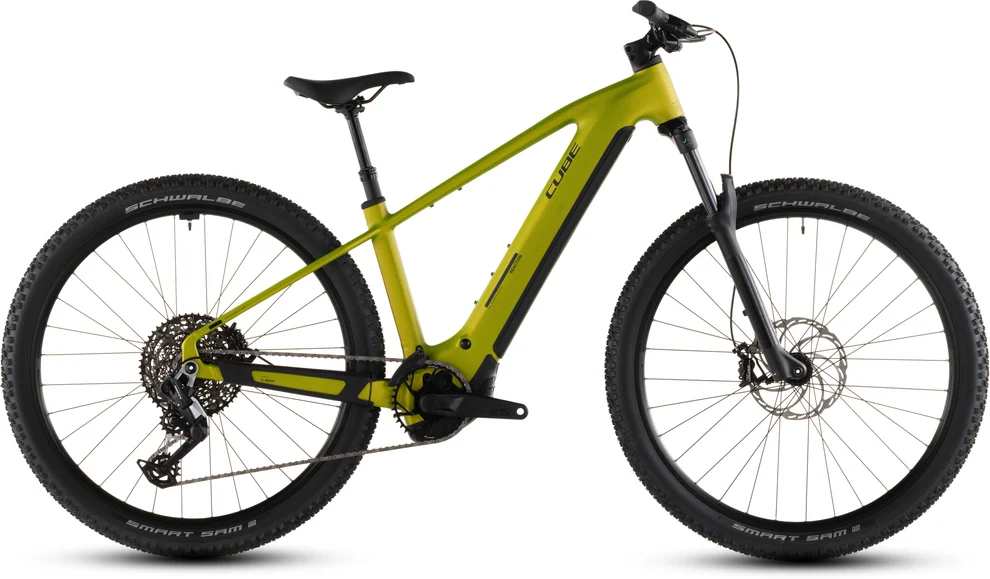

Cube Reaction Hybrid Race 800 lizard and black
With its rugged go-anywhere capability and 800Wh battery, there's not much that can hold the Reaction Hybrid Race back. It's even PowerMore-ready, so an optional extra 250Wh battery can be added for even more range. The Smart System-equipped Bosch CX drive (100 Nm) has the power to make any route easier, and Sram Transmission 90 12-speed gears put the right ratio literally at your fingertips. Wide, grippy Schwalbe 2.6in tyres are paired with an air-sprung RockShox Recon Silver fork for the best blend of comfort and control. Strong 4-piston hydraulic disc brakes ensure safe and predictable stopping in any conditions. And there's a dropper post, too, so the path less travelled is always within reach.
Highlights:
Elegant aluminum frame with internally routed cables, UDH derailleur hanger, designed for a maximum system weight of 150 kg
Motor Bosch Performance Line CX Gen.5 Smart System s 100 Nm
Bosch PowerTube 800 Wh battery for long range
Bosch Purion 200 display for clear and intuitive e-bike system control
RockShox Recon Silver RL Air suspension fork with 120 mm travel (27.5: 100mm)
SRAM Eagle 90 Transmission 1x12-speed drivetrain
Magura Louise hydraulic 4-piston disc brakes with 203 mm rotors
High-quality and robust ACID PRO 30 tubeless-ready wheelset
The clean, refined design of the Reaction Hybrid is no accident. The 800 Wh PowerTube battery is elegantly concealed within the frame and the Bosch CX drive unit is securely positioned, creating slim lines that hide a host of clever solutions. The bike is PowerMore-ready, allowing up to 250 Wh of additional battery capacity to be added easily. The integrated seatpost clamp and internal cable routing further enhance the minimalist appearance.
Manufacturer's code: 108400
EAN: 4054571492562
Model year: 2026
Specifications
| Frame | Aluminium Superlite, Gravity Casting Technology, Agile Ride Geometry, Boost148, Fully Integrated Battery, Advanced Internal Cable Routing, 1.5 Headtube, Kickstand/Fender/Carrier Mounting Points |
| Frame material | aluminium |
| Wheel size | Classic: Size Split: 27.5: S // 29: M L XL XXL |
| Speeds | 1 x 12 |
| Fork | RockShox Recon Silver RL Air, Tapered, 15x110mm, 120mm (27.5: 100mm) |
| Rear Shock | - |
| Travel | 120 mm |
| Brakes | Magura Louise, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203) |
| Brake discs | 203/203 mm |
| Headset | ACROS AZF-1034, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), X-Connect Interface |
| Stem | CUBE Performance Stem E-MTB 35, FPI-Link |
| Handlebar | CUBE Rise Trail Bar 35 |
| Grips | ACID Hybrid Perform |
| Saddle | ACID Sequence 160 |
| Seatpost | CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm |
| Crankset | ACID MTB Hybrid Pro, 38T |
| Rear derailleur | Sram Eagle 90 Transmission, 12-Speed |
| Gear shifters | Sram Eagle 90 Transmission |
| Chain guard | Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate |
| Cassette | Sram XS-1270, 10-52T |
| Chain | Sram GX Eagle™ Transmission |
| Front tyre | Schwalbe Smart Sam, Active, 2.6 |
| Rear tyre | Schwalbe Smart Sam, Active, 2.6 |
| Wheelset | ACID PRO 30, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Display | Bosch Purion 200 with Integrated Display |
| Battery | Bosch PowerTube 800 |
| Charger | Bosch 4A |
| Motor | Bosch Drive Unit Performance Line CX Gen.5 max. 100Nm (BDU38) |
| Bearing dimension | - |
| Maximum total weight allowed | 160 kg (tbody weight + bike + equipment) |
| Weight | Starts24,7 kg |
Video
From 00:22:21 to 00:24:12 Reaction Hybrid
Technologies
Fully integrated battery
The system Fully Integrated Battery conceals the power of the Bosch battery inside the frame's down tube. The battery is protected from water and dust by a cover and locked against theft. The result is an elegantly designed frame combining good looks with practicality.
Advanced internal cable routing
Gear and brake cables run entirely through the frame—without any additional holes near the headset. Bikes with cable routing through the headset have a clean, elegant look with no unnecessary visual distractions.
Modular Battery System
The battery is the heart of the e-bike. The Modular Battery System makes it easy to use—you can charge the battery on the bike or remove it. The frame also has enough space for higher-capacity batteries, ensuring you always have plenty of range.
Semi-integrated seatpost clamp
The discreet Semi Integrated Seatpost Clamp blends seamlessly with the frame’s design, providing a clean look and reducing the chance of snagging the bike when carrying it.
Boost148
A wider hub means a stiffer, stronger wheel, which improves handling. The standard Boost148 allows greater spacing between the hub flanges, improving wheel performance without affecting shifting or drivetrain efficiency.
Universal Derailleur Hanger (UDH)
The Universal Derailleur Hanger provides a standardized solution compatible with all drivetrains. It reduces the risk of chain jams, improves shifting performance, and is widely available as a replacement part.
Flat Mount kickstand
The Flat Mount kickstand allows you to park your bike anywhere, providing a secure and stable stand on flat surfaces.
Efficient Trail Control
The Efficient Trail Control system ensures sensitive suspension response on rough terrain while minimizing pedal-induced bobbing. This means full use of the travel and more fun on the trail.
Agile Trail Geometry
Agile Trail geometry is designed for riders who enjoy pushing their limits. A lower frame height and more room for movement provide freedom on the trails and reward bolder line choices.
Size chart
Choosing the correct frame is key to comfortable, safe riding. Based on your height and inseam length our frame size calculator helps you choose the ideal size for optimal comfort, control and riding efficiency.
