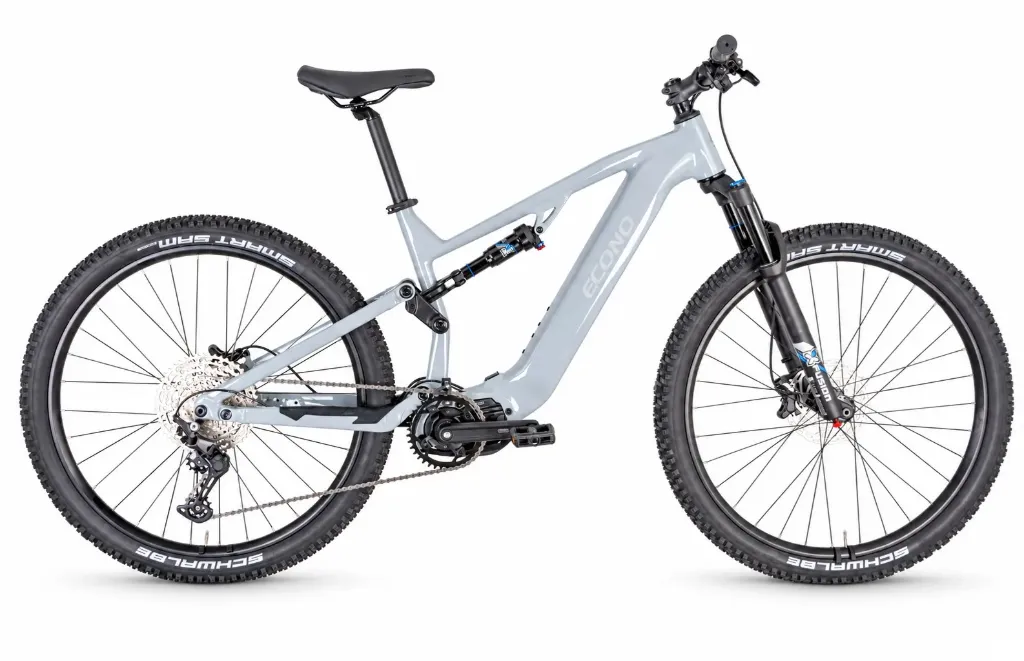

ECONO Pantera 29 C6 120
Meet the ECONO Pantera 29 C6 120, Model 2027, a full-suspension electric mountain bike designed for forest trails, singletracks, gravel roads, and challenging off-road terrain, with the versatility to ride on asphalt when needed.
Powered by a Bafang M410 mid-drive motor with 250 W and 90 Nm of torque, it delivers strong assistance on steep climbs and demanding trails. The X-Fusion front and rear air suspension provides improved traction, comfort, and control on uneven terrain, while the Schwalbe 2.60" tires offer excellent grip and stability.
The reliable COMTRON ECONO battery, developed and assembled in our own facility, is available in 600 Wh and 800 Wh capacities. Both batteries are removable and compatible with all ECONO 2027 models.
The C080 full-color display with Bluetooth connectivity provides essential riding information and easy control of the electric assistance, with five assistance levels: ECO, TOUR, SPORT, SPORT+, and BOOST.
The bike features Tektro Orion four-piston hydraulic disc brakes, a Shimano Deore 11-speed drivetrain, and MTB grips and saddle for a comfortable, secure riding position.
With its powerful motor, full-suspension setup, and trail-ready components, the ECONO Pantera 29 C6 120 is built for riders seeking confidence and control on demanding mountain trails and varied off-road terrain.
Key features
Bafang M410 motor
250W 36V 90Nm
Comtron battery ELK
Interchangeable battery compatible with all models
Clean, simple controls
Compact colorful display with Bluetooth
Shimano drivetrain
Shimano 11-speed drivetrain with 11-50T cassette
Tektro hydr. brakes
Tektro 4-piston hydraulic disc brakes
Schwalbe Smart Sam
Reliable tyres 29x2.35
Air suspension
X-Fusion MIG & O2 Pro
Specification
Product information
Size
M (for height: 160 - 170cm, L (for height: 170cm - 180cm) XL (for height: 180cm - 190cm)
Colors
Matt grey
Wheel size
29''
Speeds
1x11
Max. weight
150kg (body weight + bike + equipment)
Warranty
3 years frame / 2 years motor, battery / 1 year on components that are not consumables (consumables include tires, inner tubes, chains, sprockets, brake pads, discs, cables, and wires)
Frame
Frame
ECONO Pantera 29-ALU6061-GEN.1.3. 2027
Fork
X-Fusion MIG 29 RC 120mm
Shock
X-Fusion O2 Pro RL 190x40mm
Motor system
Motor
Bafang M410 36V 250W 90Nm
Battery
Comtron ELK 600/800Wh smart / Range autonomy: click here and calculate your range
Charger
Comtron 2A 4pin CAN
Display
Bafang DP C080 CAN Bluetooth
Controller
-
Sensor
-
Main front cable
-
Transmission & Brakes
Rear Derailleur
Shimano DEORE RD-M5100 SGS 11s
Cassette
KMC xGlide 11s 11-50T
Shifter
Shimano DEORE SL-M5100 11s shift lever right, W
Chain
Shimano CN-LG500 Linkglide 11s 124l
Chainwheel
Bafang M410 CW G3320.1E 38T CL53mm
Cranks
Bafang M410 165mm (L+R)
Bottom bracket
Brakes
Tektro Orion HD-M6040 4p
Brake rotors
200/180mm 6-bolts T:2.3mm
Wheels
Front hub
Novatech 15X110mm
Rear hub
Novatech 12X148mm
Front rim
ROVER XL 622x30C H:19 14G/32H
Rear rim
ROVER XL 622x30C H:19 14G/32H
Tires
Schwalbe SMART SAM 29x2.6 60-622 K-Guard HS624
Cockpit
Handlebar
ECONO MTB BB:31.8 W:780mm BS:7° R:25mm
Stem
ECONO ahead BB: 31,8 R:+-7° E:60mm
Headset
Neco H322MP-156SB integrated cables 130° lock
Grips
ECONO DGT-2104/B flat black
Saddle
ECONO MTB TTZ504
Seat post
ZOOM SP-C208 30.9 black
Seat clamp
Clamp 34.9
Equipment
Front light
-
Rear light
-
Bell
-
Kickstand
-
Chainguard
-
Mudguards
-
Carrier
-
Pedales
Included
Geometry
Geometry | Value (mm) |
Seat tube | 435 |
Top tube horizontal | 600 |
Reach | 424 |
Stack | 575 |
Head tube | 170 |
Head tube angle | 69° |
Seat tube angle | 69°10' |
Chainstay | 431 |
Wheelbase | 1129 |
BB height to hub | 64 |
