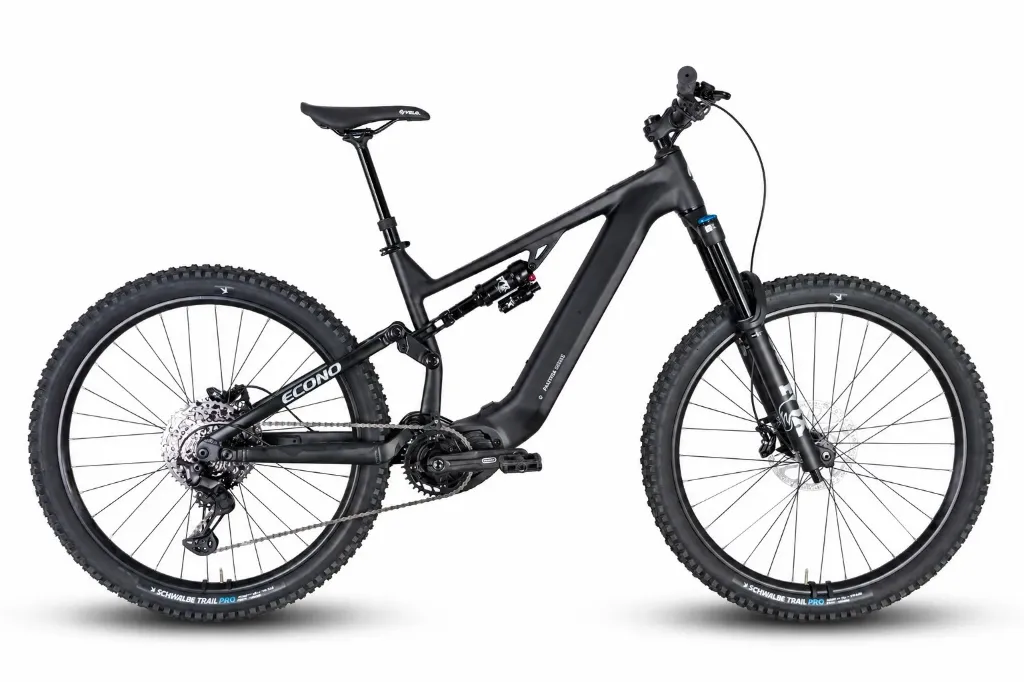

ECONO Pantera 29 C9 160
Meet the ECONO Pantera 29 C9 160, Model 2027, a full-suspension electric mountain bike designed for aggressive all-mountain riding, technical trails, big jumps, drops, and fast, demanding descents. Built for riders who push their limits, it combines capable suspension, precise handling, and trail-ready components for tackling challenging terrain with confidence.
Powered by the Bafang M510 mid-drive motor with 250 W and 110 Nm of torque, it delivers strong assistance on steep climbs and technical sections. The FOX FLOAT 38 Rhythm E-Optimized front fork and FOX FLOAT X rear shock, paired with 160 mm of suspension travel, are designed to handle demanding trails, hard impacts, and aggressive riding while maintaining control and traction.
The bike features TRP HD-M8040 EVO Expert hydraulic disc brakes with 200 mm front and rear rotors for dependable braking performance on steep descents and during aggressive trail riding. The Schwalbe Albert Trail Pro TLR tyres provide grip and control on varied off-road terrain, while the 800 mm ECONO MTB flat handlebar with a 35 mm clamp diameter offers a wide, stable riding position for precise steering. The X-Fusion Manic LC dropper seatpost allows quick saddle-height adjustment for improved freedom of movement on technical descents, jumps, and drops.
Combining a powerful motor, FOX suspension, reliable braking, and aggressive trail components, the ECONO Pantera 29 C9 160 is built for experienced riders seeking an all-mountain e-MTB capable of handling demanding trails, larger jumps and drops, fast corners, and challenging off-road adventures.
Key features
Bafang M510 motor
250W 36V 110Nm
Comtron battery ELK
Interchangeable battery compatible with all models
Clean, simple controls
Compact colorful display with Bluetooth
Shimano drivetrain
Shimano 11-speed drivetrain with 11-50T cassette
TRP hydr. brakes
TRP 4-piston hydraulic disc brakes
Schwalbe Albert Trail PRO
Reliable tyres 29x2.50
Air suspension
Fox Float 38 & Float X
Dropper seatpost
X-Fusion Manic LC
Specification
Product information
Size
M (for height: 160 - 170cm, L (for height: 170cm - 180cm) XL (for height: 180cm - 195cm)
Colors
Matt black
Wheel size
29''
Speeds
1x11
Max. weight
150kg (body weight + bike + equipment)
Warranty
3 years frame / 2 years motor, battery / 1 year on components that are not consumables (consumables include tires, inner tubes, chains, sprockets, brake pads, discs, cables, and wires)
Frame
Frame
ECONO Pantera 29-ALU6061-210-GEN.2.1 2027
Fork
FOX FLOAT 38 2027, 29in, Rhythm E-Optimized, 160mm
Shock
FOX FLOAT X 210x55 2027 P-S, A, 2pos, Evol LV,
Motor system
Motor
Bafang M510 36V 250W 110Nm
Battery
Comtron ELK 600/800Wh smart / Range autonomy: click here and calculate your range
Charger
Comtron 2A 4pin CAN
Display
Bafang DP C080 CAN Bluetooth
Controller
-
Sensor
-
Main front cable
-
Transmission & Brakes
Rear Derailleur
Shimano DEORE XT RD-M8130 SGS 11s
Cassette
KMC xGlide 11s 11-50T
Shifter
Shimano DEORE XT SL-M8130 11s shift lever right
Chain
KMC E11 EPT eTurbo 11s 124l
Chainwheel
Bafang M510 36T CW G522.1A CL53mm
Cranks
Bafang M510 165mm (L+R)
Bottom bracket
Brakes
TRP HD-M8040 EVO Expert
Brake rotors
200/200mm 6-bolts T:2.3mm
Wheels
Front hub
Novatech 15X110mm
Rear hub
Novatech 12X148mm
Front rim
Discovery tubeless ready 622x30C H:20 14G/32H/6-bolt disk
Rear rim
Discovery tubeless ready 622x30C H:20 14G/32H/6-bolt disk
Tires
HS641 SOFT 67EPI
Cockpit
Handlebar
ECONO MTB flat bar BB:35 W:800mm BS:8° US:5° R:35mm
Stem
ECONO ahead BB: 31,8 R:+-7° E:60mm
Headset
Neco H322MP-156SB integrated cables 130° lock
Grips
ECONO DGT-2104/B flat black
Saddle
ECONO MTB TTZ504
Seat post
X-Fusion Manic LC 30.9 M 125/L 150/XL 170
Seat clamp
Clamp 34.9
Equipment
Front light
-
Rear light
-
Bell
-
Kickstand
-
Chainguard
-
Mudguards
-
Carrier
-
Pedales
Included
Geometry
Geometry | Value (mm) |
Seat tube | 435 |
Top tube horizontal | 600 |
Reach | 424 |
Stack | 575 |
Head tube | 170 |
Head tube angle | 69° |
Seat tube angle | 69°10' |
Chainstay | 431 |
Wheelbase | 1129 |
BB height to hub | 64 |
Alternative Products
These other products might interest you
Attributes
| Bike | |
|---|---|
| Size | M | L | XL |
| Sitting position | Sporty |
| Frame type | Full suspension |
| Wheel size | 29 ” |
| Speeds | 11 gears |
| Suspension | Front and rear suspension |
| Bike speciality | Suspension seat post |
| E-bike | |
|---|---|
| Battery | 600Wh (16.5Ah) | 800Wh (23Ah) |
| Motor position | Center (middle) |
| Motor | Bafang M510 |
| Torque | 110Nm |
| Display | Bafang DP C080 |
| Others | |
|---|---|
| Brand | ECONO |
| Model year | 2027 |
| ECONO series | Pantera |
