If you like to spend your free time on bikes on longer trips and you are a fan of cycling adventures, we have prepared an ECONO Equus e-bike in two versions. From easy city rides to recreational mountain tours, ECONO Equus can do anything.

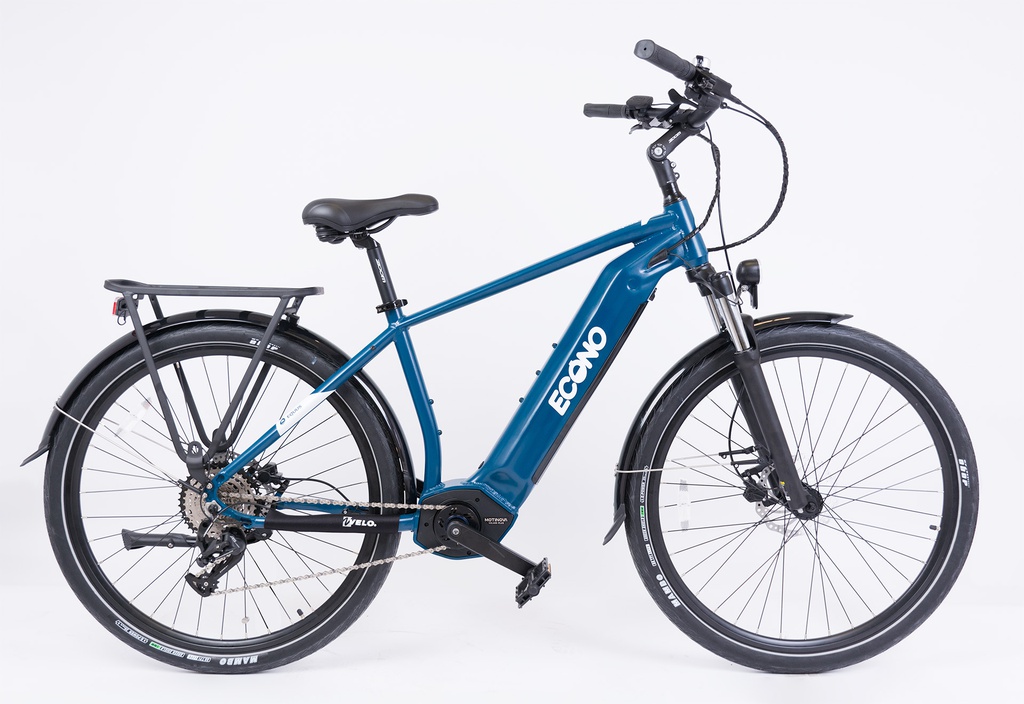

ECONO Equus mountain bike is a combination of the robust appearance of a mountain bike with all the comfort of an electric bicycle. It is distinguished by durability and modern design, which is combined with modern geometry. It is a bike that is ready to go to work in the morning, and in the afternoon it longs for a recreational tour on diverse paths, heavy terrains and slopes.
Mid-drive motor Motinova
The bike is driven by a centered Motor's Volans motor, which is elegantly integrated into the frame of the bike and is synchronized with a reliable ECONO battery, which is also integrated into the lower frame tube. The power of the motor is 250 W, which produces enviable 75 Nm torque. The motor is equipped with a torque sensor, pedaling sensor and assisted walking. The intelligent drive unit, which is integrated into the motor body, will provide a sufficient amount of support at any time. The Motor's Volans provides acceleration uniformity and a favourable driving feeling. It has 5 levels of support (Eco, Normal, Sport, Turbo and Smart) which you can easily choose on the control console (LCD display), which is installed on the wheel control, on which you can monitor data such as battery status, current support level, speed, distance, distance, time.
Integrated Battery ECONO
The motor is powered by a powerful Lithium-ion battery LI-ION to 24,5Ah (870Wh). The battery is fully integrated into the frame and can also take you to the enviable 200 km distance (in optimum conditions-depending on driving mode). Due to its position, the centre of gravity of the bike is more stable and easily manoeuvrable. The battery can be easily removed from the bike using the attached safety key. For greater safety, the battery is equipped with BMS plate (Battery Management System), which prevents overheating, short circuit and overcharged.
The bike has a lightweight aluminum frame. Due to the special geometry of the frame, the bike is extremely comfortable to drive. The front suspension with 100 mm walk helps to overcome uneven terrain.
The TEKTRO hydraulic disc brakes ensures safe stopping. The gear assembly with the 10 gear ratio, which makes it easy to move even on very demanding climbs. Tyres with rough profile are suitable for comfortable driving on different bases and provide excellent grip. Carefully selected seat, handlebars, handlebars and handles ensure comfort on every route regardless of its length.
From easy city rides to recreational mountain tours, ECONO Equus can do anything.
Technology
Removable integrated battery
Enables easy removal and installation of batteries in a toolless frame.
Aluminium Lite
Aluminium alloy 6061 is corrosion and load resistant and is suitable for lightweight hoses with high stiffness.
Advanced Hydroforming
This method of production reduces the number of welds, reduces the weight of the frame and increases its durability.
Comfortable Geometry
With a specially designed frame, you can gently cycle longer distances.
Hydraulic brakes
Hydraulic brakes for maximum braking power under all conditions.
Quick Release axle
QR axle for faster wheel removal and fixing.
Size chart
Choosing the correct bike size is essential for your safety and comfort. The right size is selected based on our height. The same applies to children where the height of a bicycle is more important than the age of a child. in the "Table Sizes" tab.
Specifications
| Frame | ECONO ALU 6061 unilight Integrated Downtube |
| Fork | Spring |
| rear shock | - |
| Wheel size | 28'' |
| Number of gears | 9 gears |
| Front gear lever | - |
| Rear gear lever | L-TWOO A5 9 gears |
| Front derailleur | - |
| Rear derailleur | L-TWOO A5 9 gears |
| Crankset with chainrings | Motinova |
| Front brake | TEKTRO HD-M275 hydraulic disc brakes |
| Rear brake | TEKTRO HD-M275 hydraulic disc brakes |
| Front brake disc | 180 |
| Rear brake disc | 180 |
| Tyres | Schwalbe Smart Sam 28x2.10 |
| Rims | Remerx Top Disk 28'' |
| Front hub | MS 100x9 mm |
| Rear hub | MX 135x9 mm |
| Rear sprockets | L-TWOO A5 11-42T |
| Handlebars | Lady Town 31,8 |
| Stem | Promax |
| Seatpost | Promax |
| Saddle | Sell Monte Grappa Argo |
| Pedals | Plastic |
| Front light | - |
| Rear light | - |
| Motor | Motiova Voland Plus 75 Nm |
| Display | Motinava LCD |
| Battery | Econo Intube 630Wh |
| Load capacity | Up to 130 kg |
| Range | Up to 100 km |
| Charger | Econo 3 pin 2A |
| Weight | 23 Kg |
Package contents
1x Electric bike ECONO Equus TRK 28
- 1x Charger Econo 2A 3pin
