About product
The ECONO Charger current is 4A .The 36V ECONO battery is used by a 4 pin connector. This charger allows the battery temperature to be monitored, which appropriately increases charging safety. The charger charges the battery using the CC-CV method. The maximum charging voltage is 42V.
Charging time
Our batteries can only be charged with ECONO chargers.
ECONO 378Wh battery (10.5Ah)
Charge to 50%
Approximately 3 hours
Charge 100%
Approximately 10 hours
Battery ECONO 504Wh (14Ah)
Charge to 50%
Approximately 4 hours
Charge 100%
Approximately 12 hours
ECONO 630Wh battery (17.5Ah)
Charge to 50%
Approximately 4 hours
Charge to 100%
Approximately 10 hours
Battery ECONO 756Wh (21Ah)
Charge 50%
Approximately 3.5 hours
Charge to 100%
Approximately 12 hours
Protective features
Overvoltage protection
Over-current protection
Short-circuit protection
Taking into account the temperature range
It only charges when the battery is in the range between 10 and 45°C, which affects battery lifeCharging mode
Up to approx. 80% charges with constant current 4A (CC)
The last percent with a constant voltage of 42V (CV)
Package included

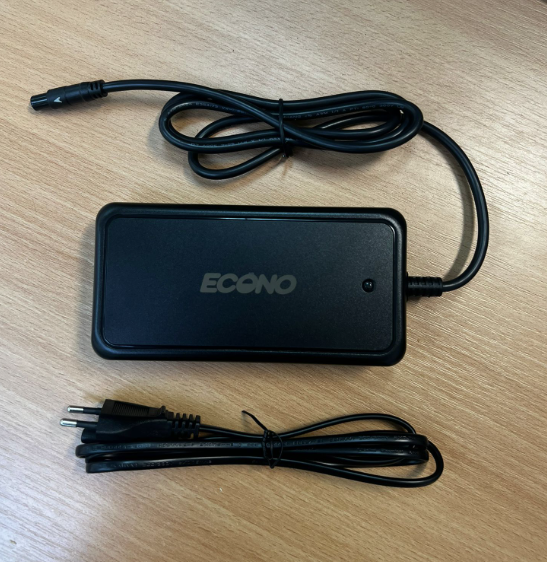

1x Charger for 36V Comtron Battery / 2,8A 4pin CAN
1x instructions
