About the product
Charging ECONO with current 2A. It is designed for 36V ECONO batteries, which use 3 pin connector. This allows the charger to monitor the temperature of the battery, which inappropriately increases the safety of charging. Charger charging battery according to the CC-CV method. The maximum charge voltage shall be 42V.
Charging time
Our batteries can only be charged with ECONA chargers.
ECONO 378Wh battery (10.5Ah)
To fill 50%
About 2.5 hours
Fill 100%
About 6 hours
ECONO 504Wh battery (14Ah)
To fill 50%
About 3.5 hours
Fill 100%
About 8 hours
ECONO 630Wh battery (17.5ah)
To fill 50%
About 4.5 hours
Fill 100%
About 10 hours
ECONO 756Wh battery (21Ah)
To fill 50%
About 5 hours
Fill 100%
About 12 hours
Protective functions
Protection against overvoltage
Protection against overflow
Protection recently
Considering the temperature range
Full only when the battery is in the range between 10 and 45 ° C, which affects the battery lifeFilling mode
Up to about 80% filled with constant flow 2a (CC)
Last percentage with a constant voltage of 42V (CV)
The scope of the package

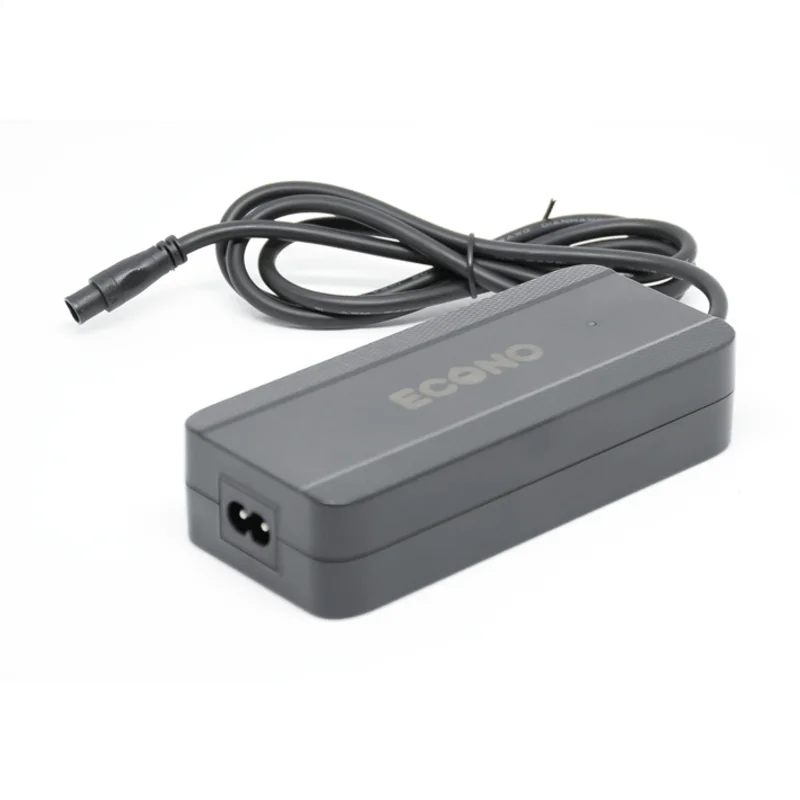

1x charger for 36V battery ECONO / 2A 3pin
