About the product

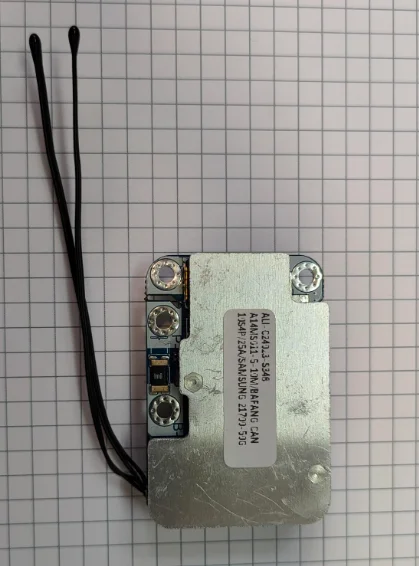

The BMS circuit is designed to protect and control the battery. It is designed for Li-ion cells.
Cell overfill protection
cell overheating protection
Overflow protection
Short circuit protection
Protection against discharge
Balancing of cells (maintenance of all cells at the same voltage level)
Specifications
Rated voltage: 36V Series configuration: 10s Min. voltage: 28V Max. charge current: 8A Max. current discharged: 25A Balancing cells: YES Cut-off temperature:
65°C
Dimensions:
34mm x 59mm x 9mm
Separate output for charger:
YES CAN communication YES
| Rated voltage: | 36V |
| Series configuration: | 10s |
| Min. voltage: | 28V |
| Max. charge current: | 8A |
| Max. current discharged: | 25A |
| Balancing cells: | YES |
| Cut-off temperature: | 65°C |
| Dimensions: | 34mm x 59mm x 9mm |
| Separate output for charger: | YES |
| CAN communication | YES |
Package contents
1x BMS circuit
1x Cell Balancing Cable
