About the product

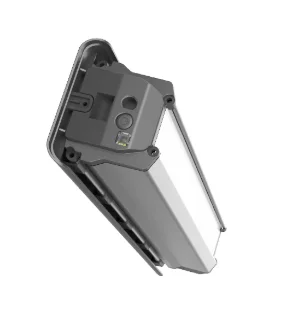

Battery Econo Sapphire 800 is an ECONO electric bicycle battery, assembled in Slovenia. Capacity 720Wh and voltage 36V It is designed to be installed on the bottom tube of the frame of the bike.
The battery is compatible with the ECONO Equus wheels. On the battery there is a charger connector and a battery charge indicator. Battery capacity 800Wh (22,2Ah) guarantees you enough energy for shorter tours around the city as well as for trips around the countrysideThe battery is only compatible with the original Econo charger 2A or 4A with 4pin connector, which ensures greater safety and temperature monitoring during charging.
Easy to Handle
We can lock the battery on a bicycle with a key. We can load it on or off the bike. We can use it in the winter when we feed it.
Long service life
Econo battery control system (BMS) protects li-ion cells from use in extreme conditions such as high temperatures, excessive voltage...
Low self-discharge rate
Even after long periods of storage. This means that after a long break (after winter), the Econo charging batteries do not need to be charged.
No memory effect
You can charge the Econo battery at any time, regardless of the current level of charge. Breaking the charging process does not harm the battery.
Battery range
The graph below shows the maximum battery range ECONO Sapphire 8000 in combination with different mid-drive motor assistance levels at an average speed of 20km/h, a total mass of 100kg, by predominantly flat ground.
Charging time
Our batteries can only be charged with Econo chargers.
Econo / 2A 4pin Charger
Charge to 50%
Approximately 5 hours
Charge to 100%
Approximately 10 hours
Econo / 4A 4pin Charger
Charge to 50%
Approximately 2,5 hours
Charge to 100%
Approximately 5 hours
Specifications
| Capacity | 800Wh (22,2Ah) |
| Rated voltage | 36V |
| Max. voltage. | 42V |
| Min. voltage | 28V |
| Max. charging current | 4A |
| Charge temperature | from 10°C to 45°C |
| Discharge temperature | from -20°C to 50°C |
| DC connection | 4 pin |
| Technology | Li-ion |
| Cell brand | Samsung |
| Dimensions | |
| Weight | |
| Included | Battery, instructions |
| Certificate | Safety standard EN 62133 |
| Warranty | 12 months |
Package contents
1x Battery Econo Sapphire 800Wh
1x Instructions
