About the product
The motor is renewed in the set, which means that there are new components in the motor to ensure that it works properly. If necessary, the control, gears, torque sensor and electric motor are replaced. If the original housing is well preserved, it remains unchanged, otherwise it is replaced by a new one.
All key components carefully inspected and replaced if necessary, thus achieving optimum efficiency and performance comparable to the new.

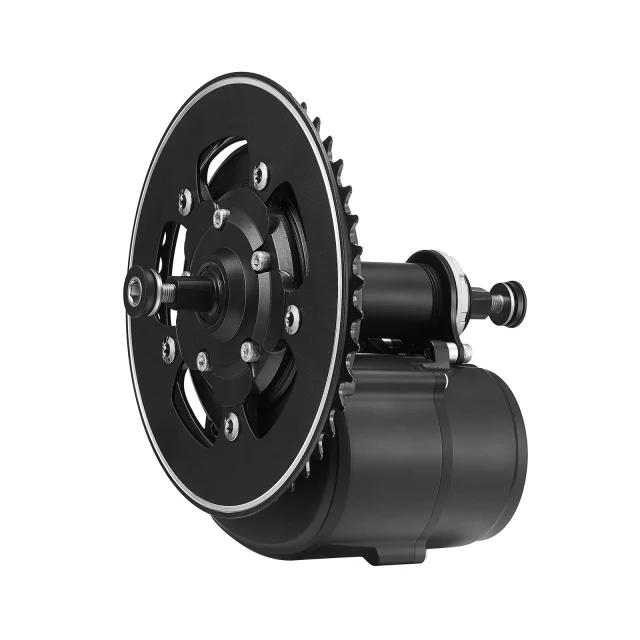

The Econo mid-drive electric motor converts a conventional bicycle into an e-bike. Its elegant design weighs 3,6 kg. A built-in torque sensor detects your pedalling effort and provides proportional assistance according to the selected level, reducing energy consumption compared with motors without a torque sensor. Quiet, smooth operation ensures a comfortable, safe ride. With 80 Nm of torque, it performs well on both flat roads and hills. Installation involves removing the bottom bracket, inserting the motor and fitting the supplied crank arms. There are 4 assistance levels. Depending on the level selected, the motor provides assistance ranging from 36 to 300% of your own power input.
motor Specifications
| Position | Mid-drive motor (bottom bracket) |
| Rated power | 250 W |
| Voltage | 36 V |
| Maximum torque | 80 Nm |
| Power ratio | from 36 % to 300 % |
| Maximum speed | 25 km/h |
| Assistance levels | 4 |
| Coaster brake | No |
| Weight | 3.6kg |
| Bottom bracket spindle | 68-73mm |
| Front sprocket | 38T (teeth) |
| Contains | Embedded controller, torque sensor, front sprocket, cranks and tools |
| Certificate | EN 15194: 2017 |
| Warranty | 12 months |
Display specifications
The VLCD5 display is compatible with Econo mid-drive motors. Its large screen is easy to read. The display mounts in the centre of the handlebars and includes a control unit mounted beside the gear levers.
4 assistance levels,
battery charge indicator,
instantaneous driving speed (km/h),
average driving speed (km/h),
mileage (TRIP),
total mileage (ODO),
Switch lights on/off
walk assist (6km/h)
driving time
Screen lighting
for voltages from 20 to 60V
dimensions 102 x 95 x 103mm
Operation in the temperature range -20 to 45°C
Package contents
1x mid-drive motor TSDZ2 VLCD5 36V 250W restored
1x LCD display VLCD5
2x Crank arm
1x LCD display controller
1x sensor for speed
1x assembly tool
