About the product

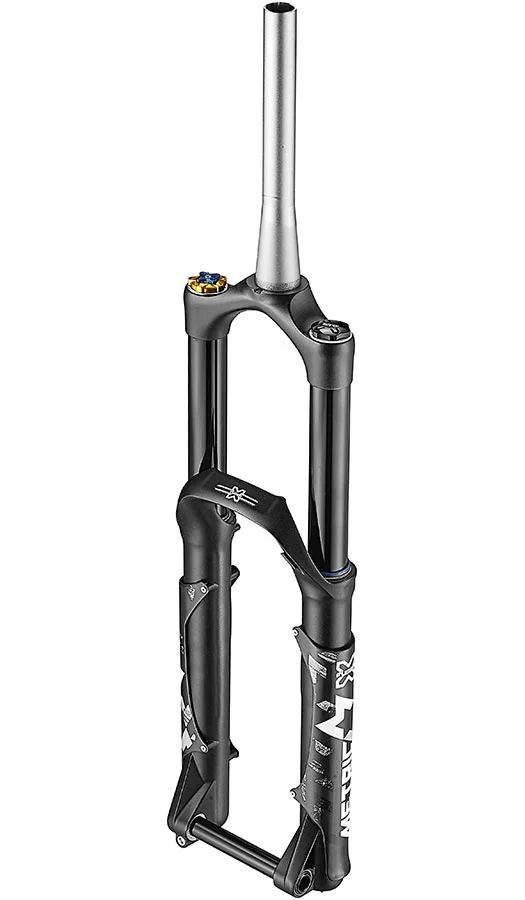

X-Fusion Metric HLR Suspension Fork 27.5'' 180mm
The X-Fusion Metric HLR is a high-performance suspension fork designed for demanding trail and enduro riding. The RoughCut HLR damper uses a sealed cartridge with a rubber bladder and independent high-speed and low-speed compression adjustments, along with rebound adjustment. The Flux Piston air spring allows air pressure tuning to suit rider weight and riding style.
The Natura Valve helps equalize internal pressure in the fork legs for smoother and more consistent suspension performance. Low-friction wiper seals improve durability, while protective carbon shields help protect the magnesium lowers.
Technical specifications
Type: Suspension fork
Model: X-Fusion Metric HLR
Intended use: Trail / Enduro
Wheel size: 27.5''
Travel: 180 mm (adjustable to 160 / 180 mm)
Stanchion diameter: 36 mm
Stanchion material: Aluminum
Spring type: Air, Flux Piston
Damper: RoughCut HLR sealed cartridge with rubber bladder
Adjustments: High-speed compression, low-speed compression, rebound and air pressure
Steerer tube: Tapered aluminum
Axle standard: 20 × 110 mm
Offset: 46 mm
Brake rotor compatibility: 180–203 mm with the appropriate X-Fusion adapter only
Lower-leg protection: Carbon shields
Seals: Low-friction wiper seals
Color: Black
Weight: 2,268 g
The scope of the package
1x fork X-Fusion Metric HLR 27.5 ''
